Preparation

Special Service Tool

The actual shapes of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name 		Description

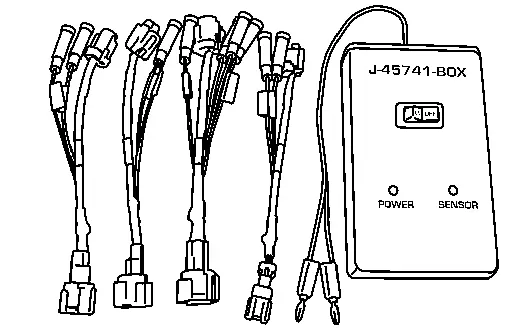

KV991J0080

(NI-45741-A)

ABS active wheel sensor tester

Checking operation of wheel sensors
