Nissan Rogue Service Manual: Wiring diagram

SRS AIR BAG SYSTEM

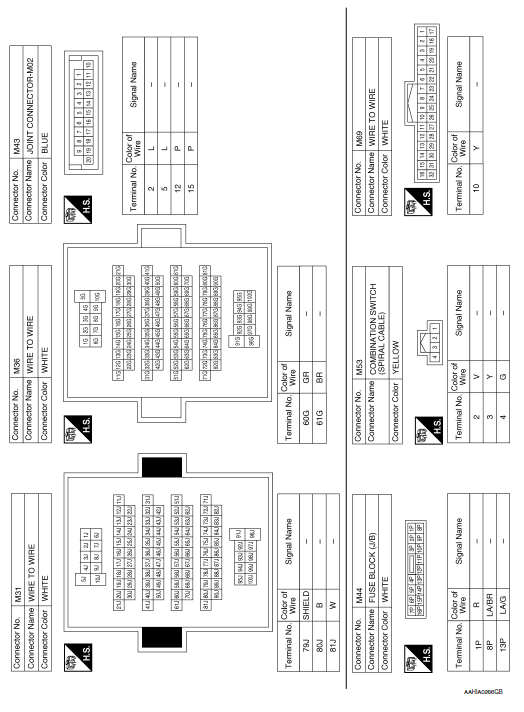

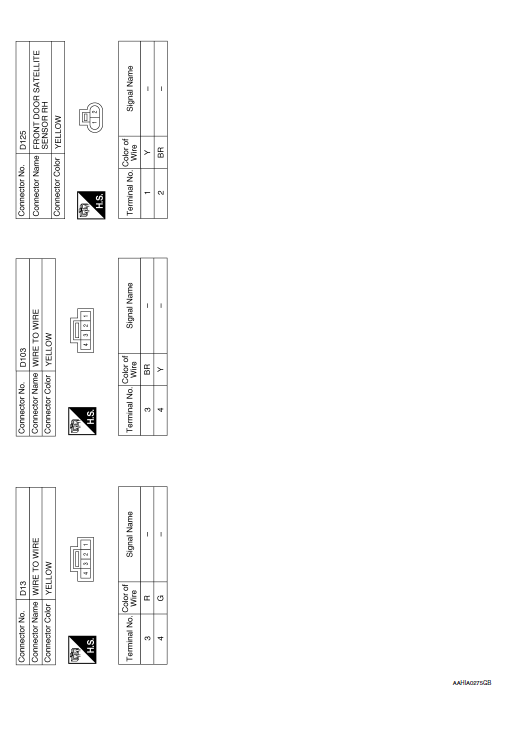

Wiring Diagram

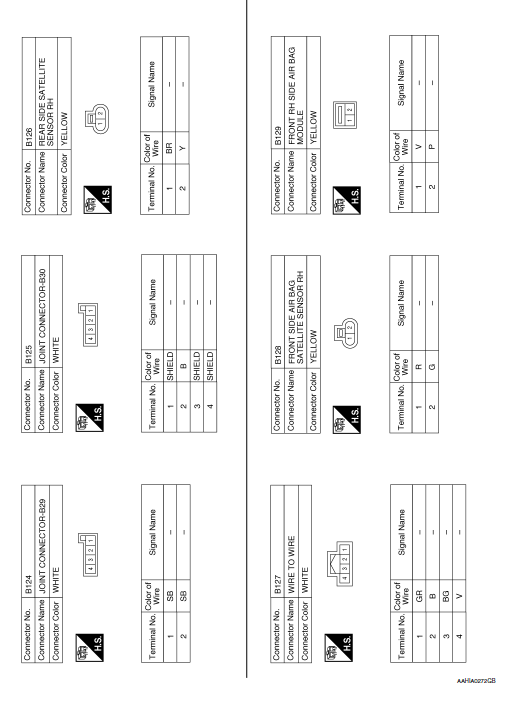

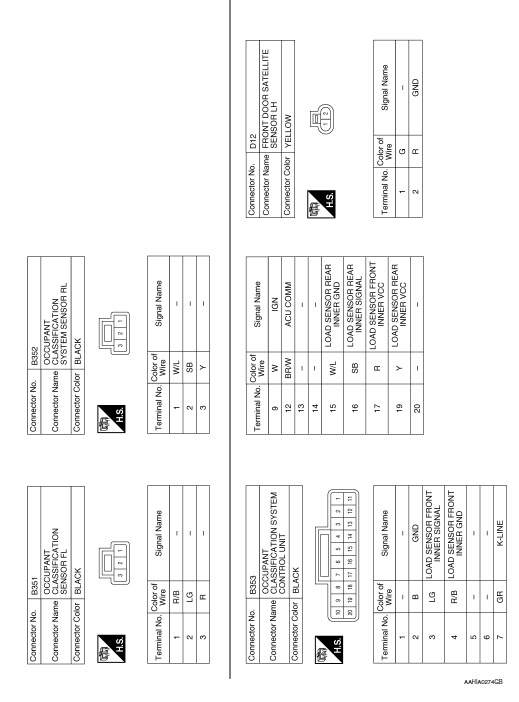

Wiring Diagram

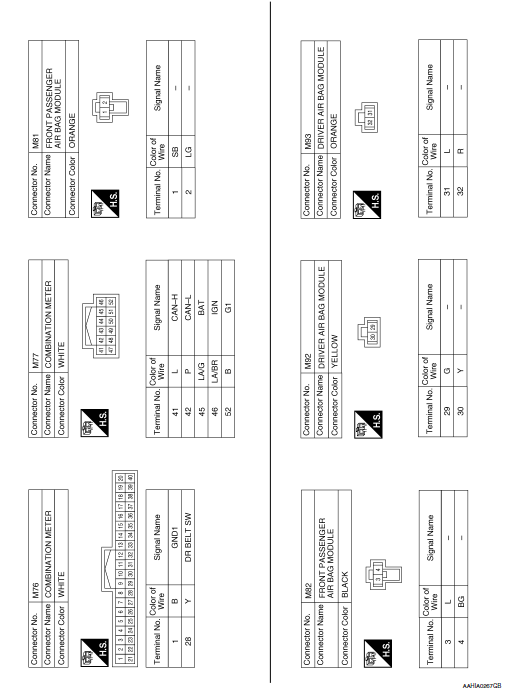

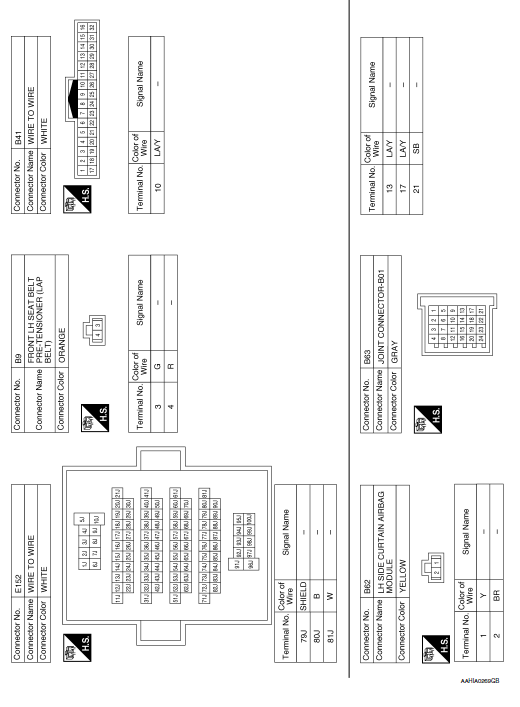

Wiring Diagram

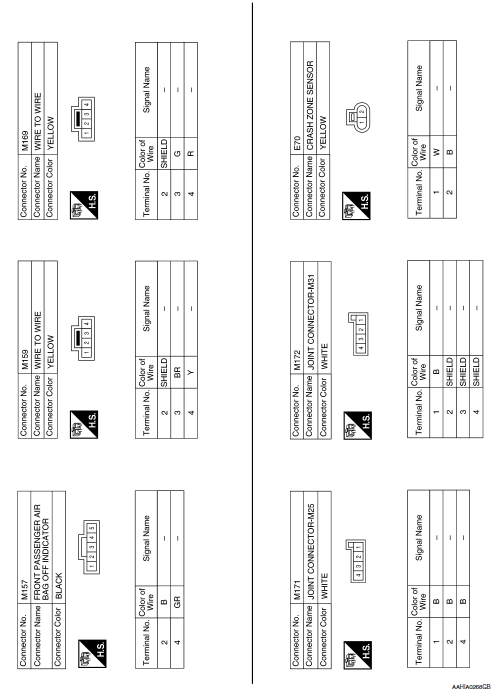

Wiring Diagram

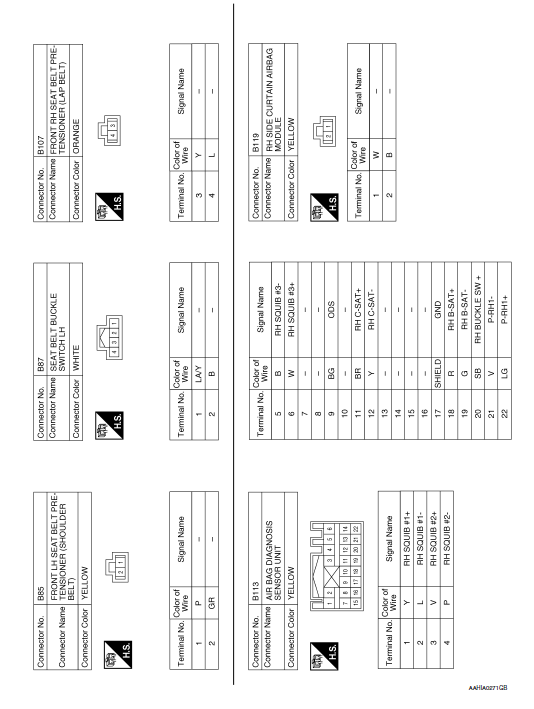

Wiring Diagram

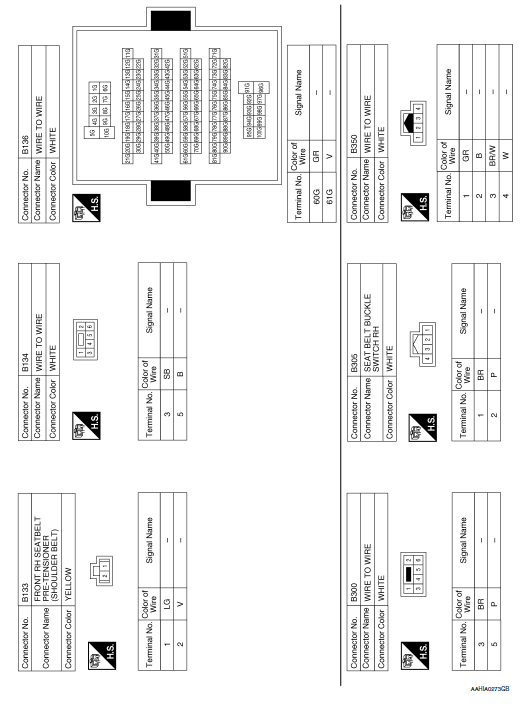

Wiring Diagram

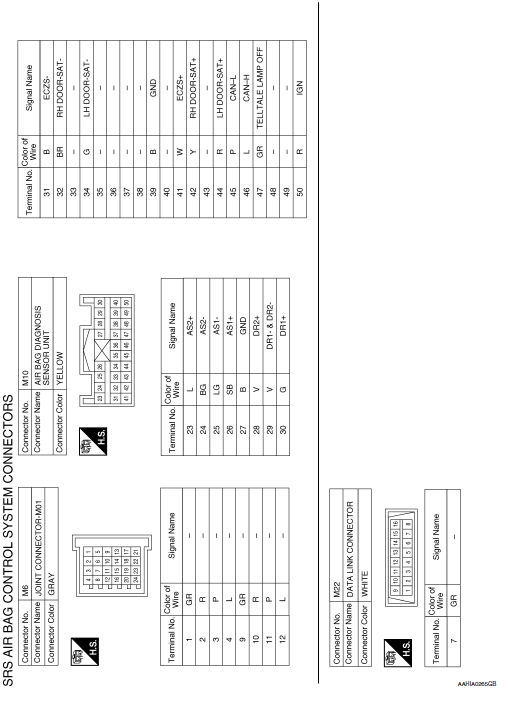

Wiring Diagram

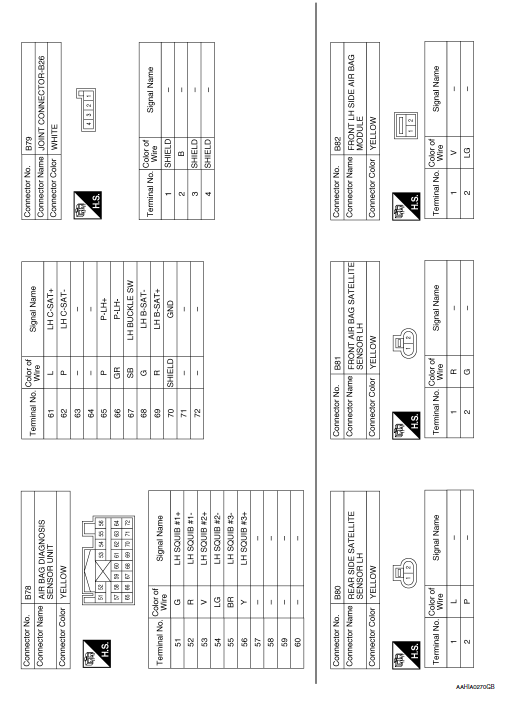

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

ECU diagnosis information
DIAGNOSIS SENSOR UNIT DTC Index DIAGNOSTIC CODE CHART NOTE: Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag ...
