Nissan Rogue Service Manual: Wiring diagram

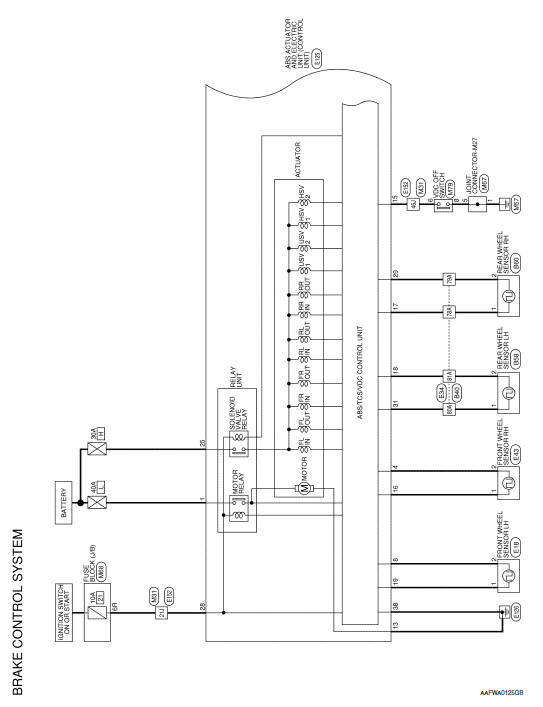

BRAKE CONTROL SYSTEM

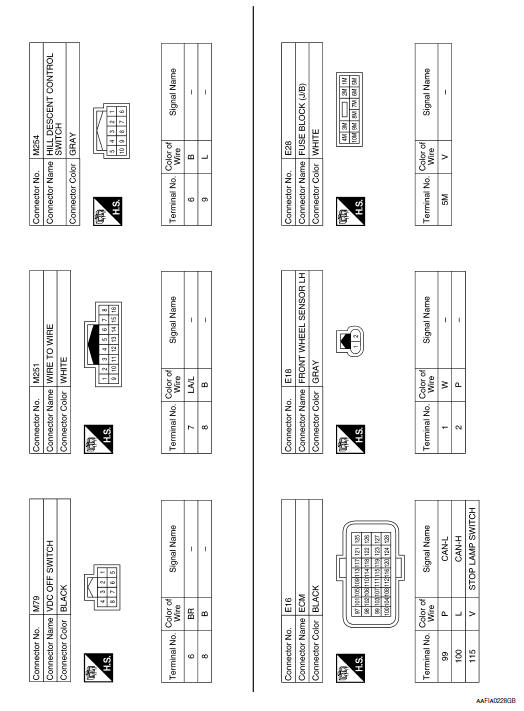

Wiring Diagram

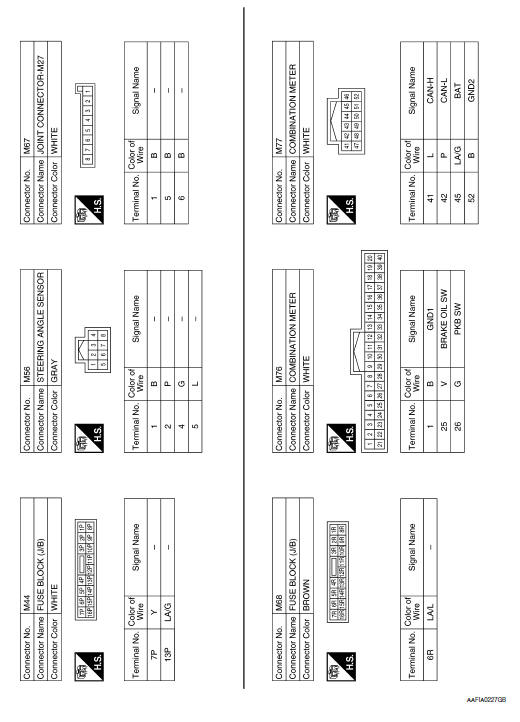

Wiring Diagram

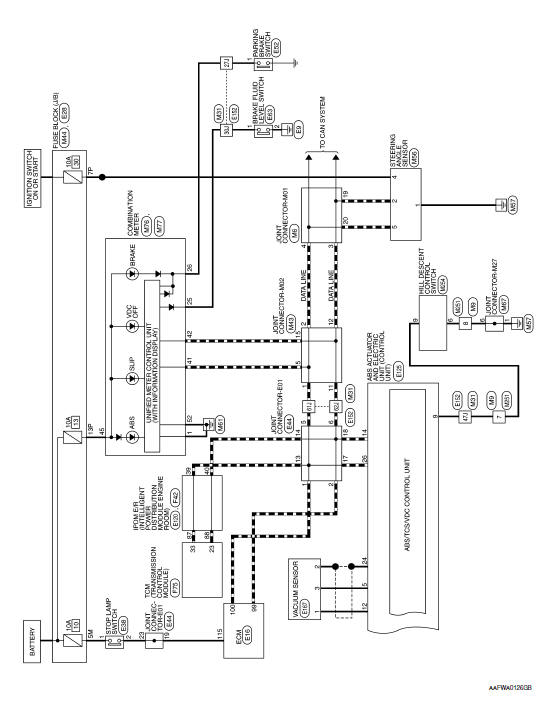

Wiring Diagram

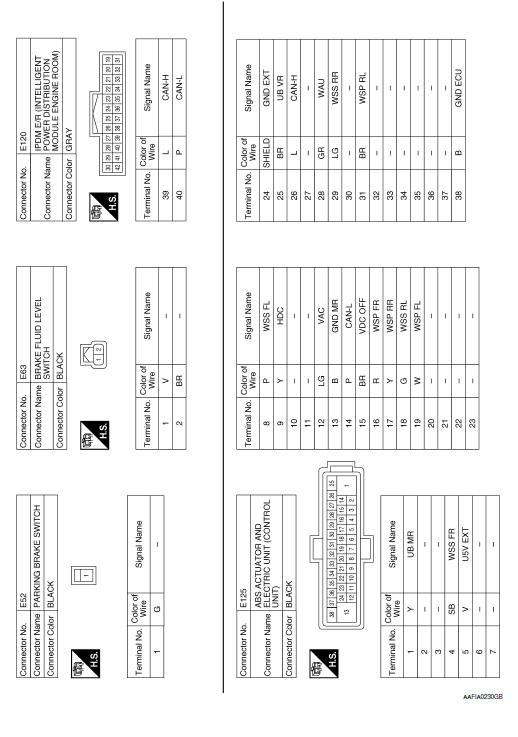

Wiring Diagram

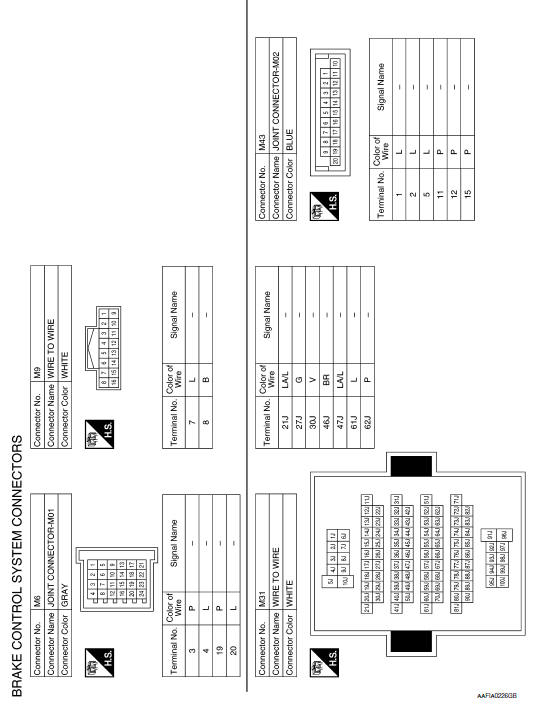

Wiring Diagram

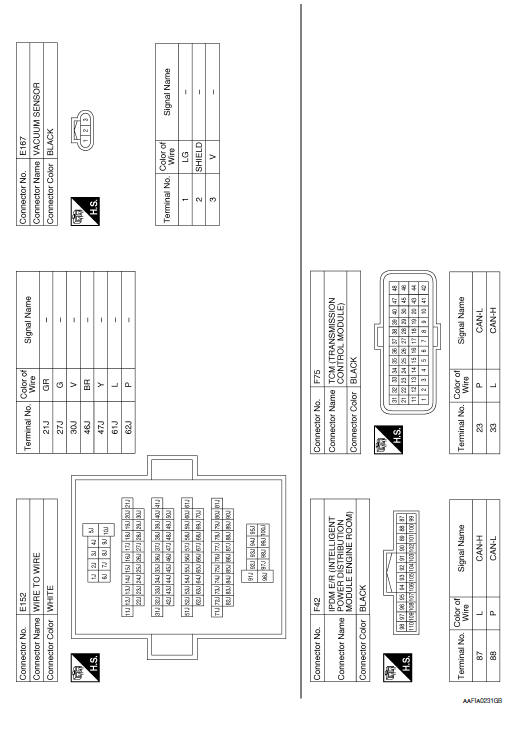

Wiring Diagram

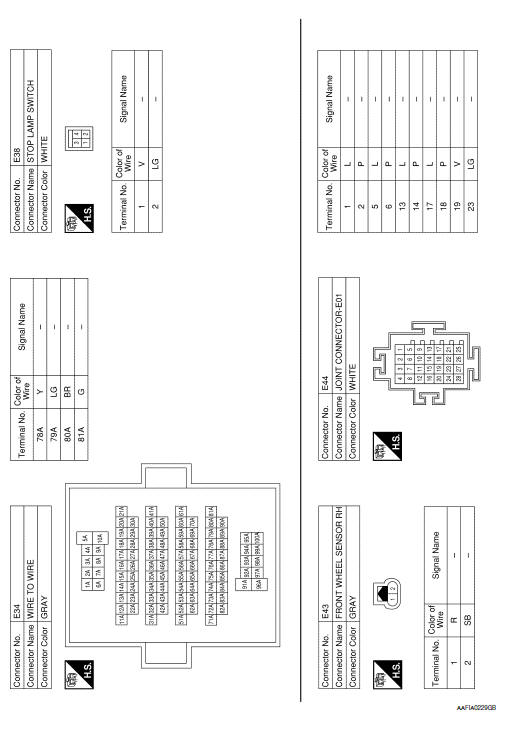

Wiring Diagram

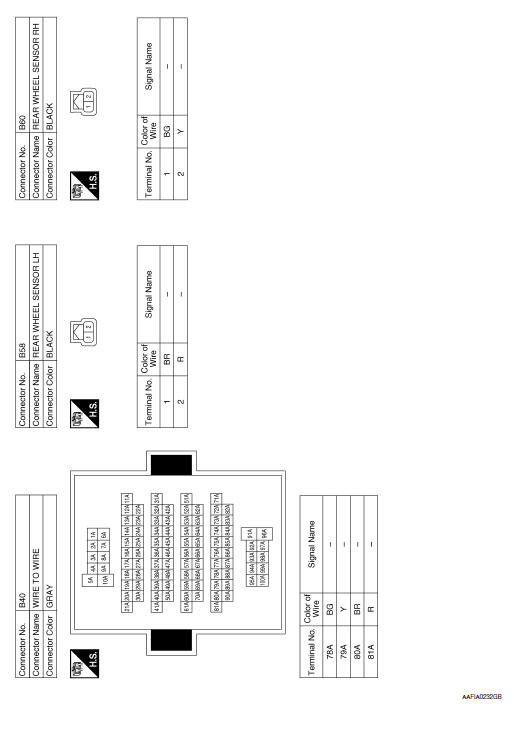

Wiring Diagram

Wiring Diagram

Wiring Diagram
