Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Turn signal switch

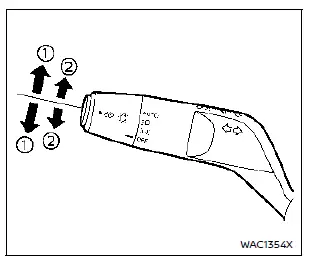

Example
- Turn signal
Move the lever up or down to indicate a turn. In the Nissan Rogue, the signal will cancel automatically once the turn is completed.
For models equipped with ProPILOT Assist 2.1: The lever returns to neutral after you move and release it. To cancel the signal, lightly move the lever to position 2 in the opposite direction and release it.
- Lane change signal
To signal a lane change, move the lever up or down until the turn signal flashes without latching. Hold the lever until the lane change is complete.
You may also move the lever briefly until the indicator flashes, then release it—this causes the signal to blink three times automatically.
Select the appropriate signaling method based on road and traffic conditions to ensure safe operation of your Nissan Rogue.
Headlight switch
Basic information
CAUTION
Use headlights only with the engine running to prevent battery drain.
Lighting
Type A (if so equipped):
Rotate the switch to the position to turn on the parking, tail ...
Horn
To sound the horn, press the center pad of the steering wheel.
WARNING
Do not disassemble the horn. Improper handling could affect proper operation of the supplemental front air bag system.
Tamper ...
