Preparation

Special Service Tool

The actual shapes of TechMate tools may differ from those of special service tools illustrated here.

Tool number

(TechMate No.)

Tool name 		Description

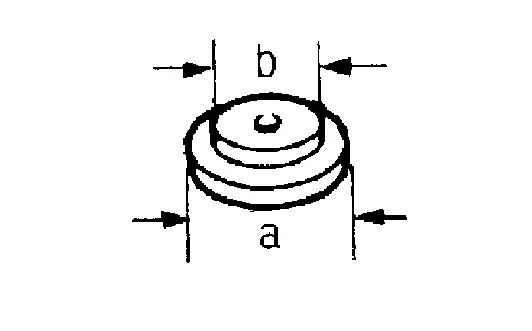

ST33061000

(NI-8107-2)

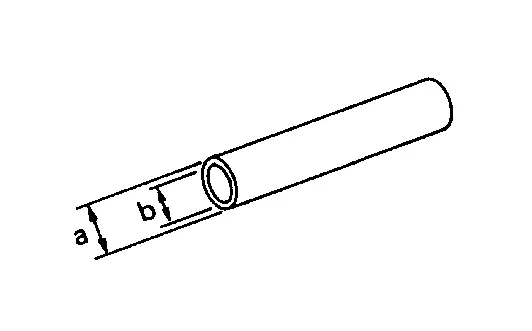

Drift

a: 38 mm (1.50 in) dia.

b: 28.5 mm (1.122 in) dia.

Removing ring gear bearing inner race (transfer case side)

KV381054S0

(NI-34286)

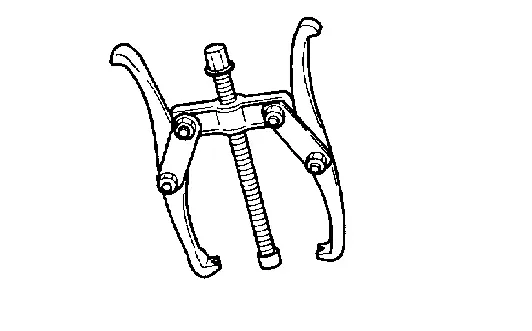

Puller

Removing drive shaft oil seal

ST3127S000

(NI-25765-A)

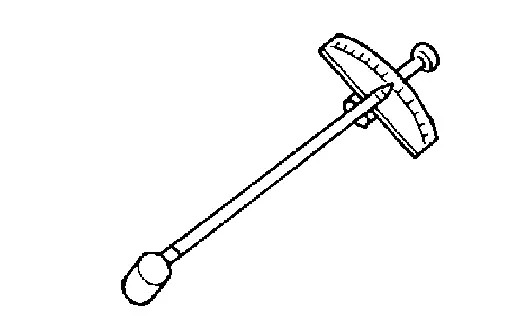

Preload gauge

Measuring preload torque

—

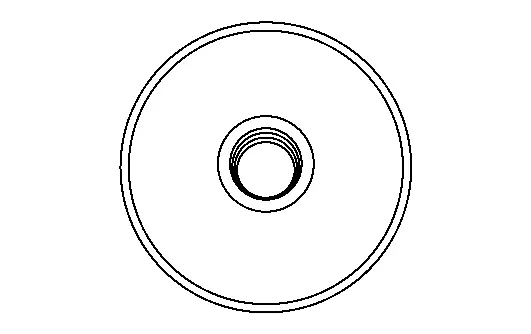

(NI-53127)

Transfer case seal installer

Installing transfer case oil seal

Commercial Service Tool

Tool name Description

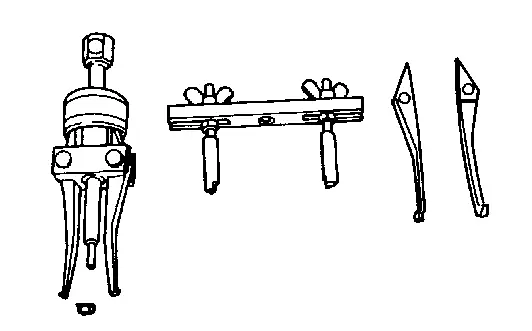

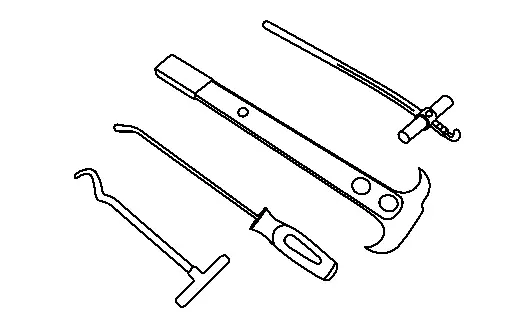

Oil seal remover

Removing transfer cover oil seal and transfer cover dust seal

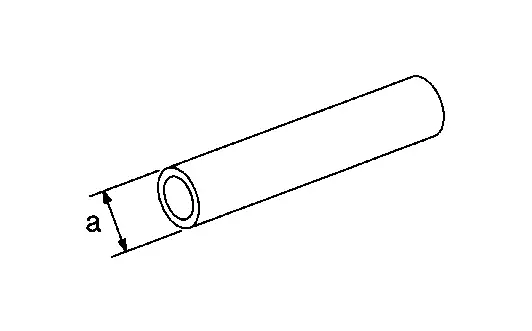

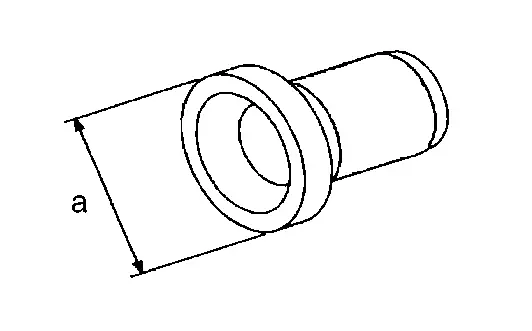

Drift

a: 87 mm (3.43 in) dia.

Installing ring gear bearing outer race (transfer cover side)

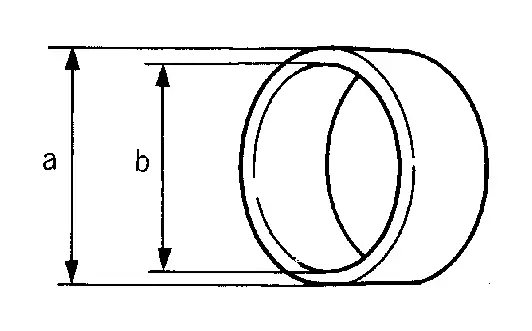

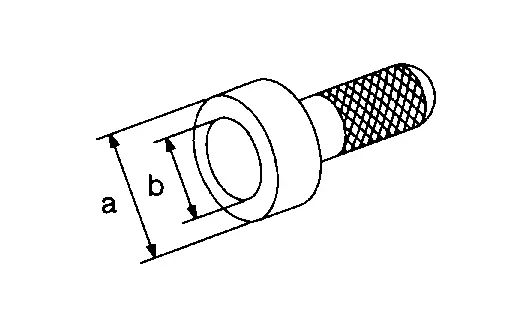

Drift

a: 78 mm (3.07 in) dia.

b: 68 mm (2.68 in) dia.

Installing transfer cover oil seal and transfer cover dust seal

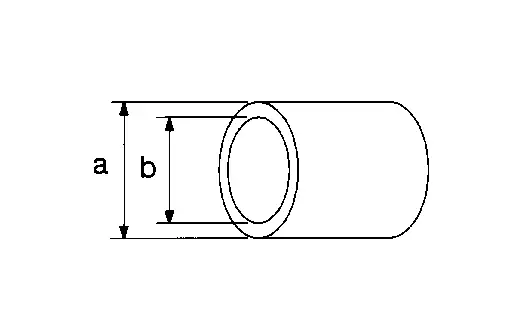

Drift

a: 52 mm (2.05 in) dia.

b: 44 mm (1.73 in) dia.

Removing ring gear bearing inner race (transfer cover side)

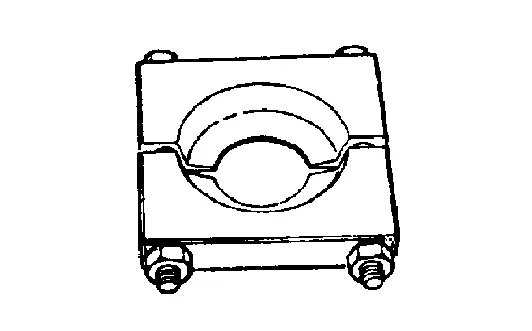

Separator

  • Removing ring gear bearing inner race (transfer cover side)

  • Removing drive pinion
Puller

Removing ring gear bearing inner race (transfer case side)

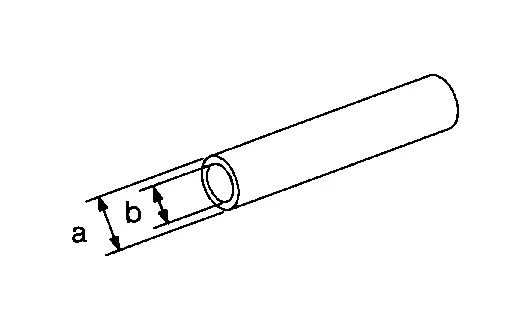

Drift

a: 44 mm (1.73 in) dia.

b: 33 mm (1.3 in) dia.

Installing drive shaft oil seal

Drift

a: 62 mm (2.44 in) dia.

b: 58 mm (2.28 in) dia.

Installing ring gear bearing inner race (transfer cover side)

Drift

a: 58 mm (2.28 in) dia.

b: 55 mm (2.17 in) dia.

Installing ring gear bearing inner race (transfer case side)

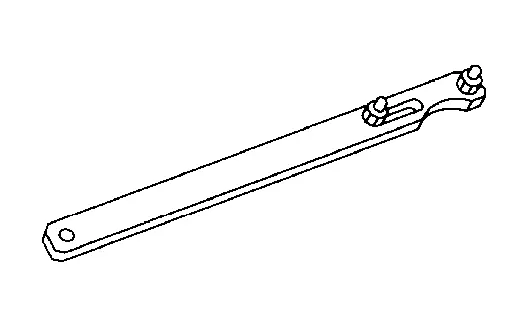

Flange wrench

Removing and installing drive pinion lock nut

Drift

a: 70 mm (2.76 in) dia.

b: 60 mm (2.36 in) dia.

Installing drive pinion oil seal

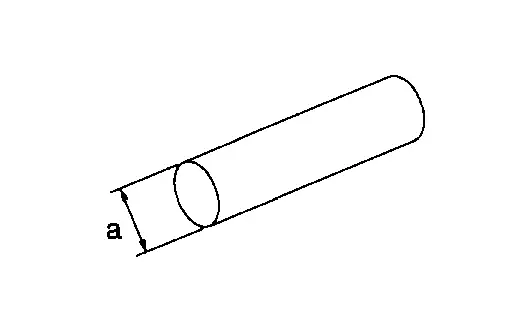

Drift

a: 20 mm (0.79 in) dia.

Installing and removing drive pinion

Drift

a: 40 mm (1.57 in) dia.

b: 25 mm (0.98 in) dia.

Installing companion flange

Drift

a: 73.5 mm (2.894 in) dia.

Installing ring gear bearing outer race (transfer case side)
Power tool

Loosening bolts and nuts

Lubricant or/and Sealant

Item Use
Red lead or equivalent Checking tooth contact

Always Replace with New Parts

Never Reuse These Parts Part Code For additional information:
Transfer cover dust seal 33142A Exploded View
Gasket 33100Q, 33100QB Exploded View
Transfer cover oil seal 33142 Exploded View
O-ring 38343Y Exploded View
Ring gear bearing (transfer cover side) 38440QA Exploded View
Gasket 33100QA Exploded View
Ring gear bearing (transfer case side) 38440Q Exploded View
O-ring 33119E Exploded View
O-ring 33386 Exploded View
Pinion bearing assembly 33158M Exploded View
Oil seal 38189X Exploded View
Pinion lock nut 32140H Exploded View
