Transfer Oil

Inspection

OIL LEAKAGE

  • Remove engine under cover during working. Refer to Exploded View.

Check transfer surrounding area (oil seal, drain plug, and filler plug etc.) for oil leakage.

OIL LEVEL

  • Remove engine under cover during working. Refer to Exploded View.

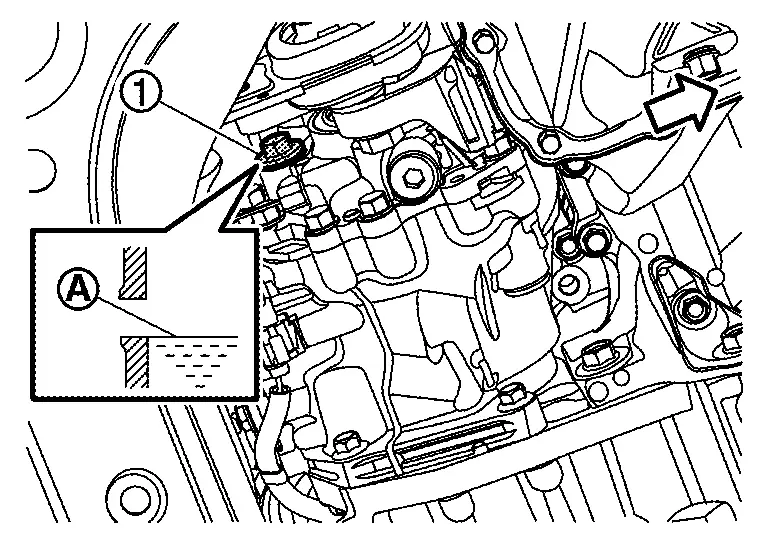

Check oil level from filler plug mounting hole as shown in the figure, after removing filler plug (1) and gasket from transfer assembly.

: Nissan Ariya Vehicle front

CAUTION:

Turn the ignition switch OFF while checking oil level.

  • Oil level should be level with bottom of filler plug mounting hole. Add transfer oil if necessary. Refer to Refilling.

Set a gasket on filler plug and install it on transfer assembly.

CAUTION:

Never reuse gasket.

Tighten filler plug to the specified torque. Refer to Exploded View.

Draining

  • Remove engine under cover during working. Refer to Exploded View.

Run the vehicle to warm up the transfer unit sufficiently.

Stop the vehicle and turn the ignition switch OFF.

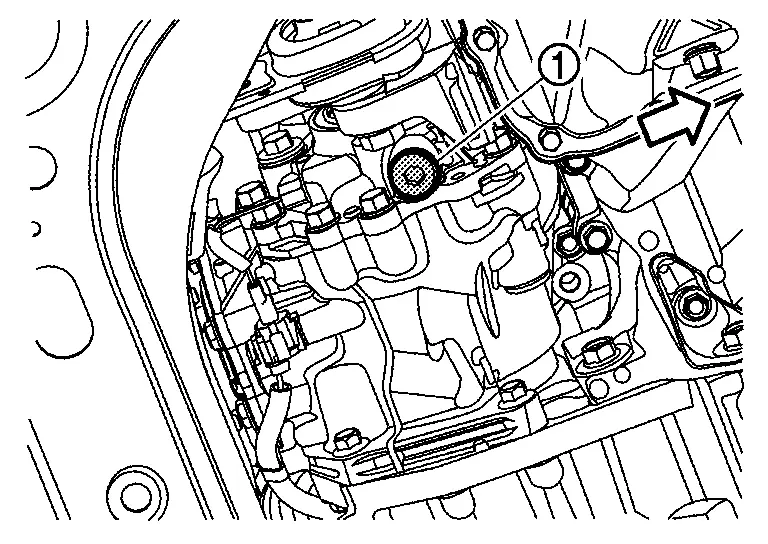

Remove drain plug (1) and gasket.

: Nissan Ariya Vehicle front

Drain transfer oil.

NOTE:

Removing filler plug can make the work easier.

Set a gasket on drain plug and install it to transfer assembly.

CAUTION:

Never reuse gasket.

Tighten drain plug to the specified torque. Refer to Exploded View.

Refilling

  • Remove engine under cover during working. Refer to Exploded View.

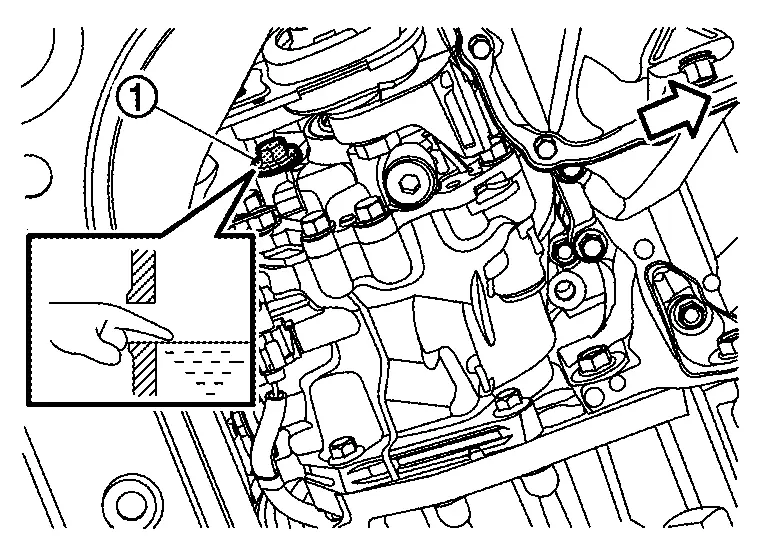

Fill with new transfer oil until oil level reaches the specified level near filler plug mounting hole, after removing filler plug and gasket from transfer assembly.

: Nissan Ariya Vehicle front

Recommended oil and capacity : Refer to Fluids and Lubricants.

Rotate the propeller shaft or drive shafts slowly by hand to penetrate the transfer oil inside of transfer assembly.

Leave the Nissan Ariya vehicle for 3 minutes, and check the oil level again.

Set a gasket on filler plug, and install it to transfer assembly.

CAUTION:

Never reuse gasket.

Tighten filler plug to the specified torque. Refer to Exploded View.
