Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: System temporarily unavailable

Condition A

Under the following circumstances, the AEB system OFF warning light will illuminate, and the “Forward Driving Aids temporarily disabled — Front Camera blocked — See Owner's Manual” message will appear. The system will automatically turn off:

• The windshield area in front of the camera is covered with moisture, snow, ice, dirt, or another obstruction.
• The camera area remains continuously obscured.

Action to take:

Ensure the windshield is clean and free of fog, ice, or debris in front of the camera.

If needed, activate the Max defogging/defrosting feature or windshield deicer (if equipped). Clearing may take several minutes.

Once the obstruction is removed, the AEB with Pedestrian Detection system on the Nissan Rogue will resume automatically.

Condition B

In the following situations, the AEB system OFF warning light illuminates and the “Driving Aids Temporarily limited — Poor Visibility” message appears:

• Strong light directed at the front of the Nissan Rogue may temporarily affect the system.
• The windshield area around the camera may become fogged or covered with dirt, water droplets, ice, or snow.

Action to take:

Once these conditions clear, the AEB with Pedestrian Detection system will automatically resume normal operation.

Condition C

In this condition, the AEB system OFF warning light illuminates, and the message “Driving Aids temporarily limited — Front Camera Too Hot” appears in the vehicle information display.

• Cabin temperature inside the Nissan Rogue exceeds approximately 40°C (104°F) under direct sunlight.

Action to take:

After the interior temperature is reduced, the AEB with Pedestrian Detection system will automatically resume.

Condition D

The AEB system OFF warning light will illuminate and a “Driving Aids temporarily limited” message will appear under the following circumstances:

• The system’s internal check does not complete properly.
• The vehicle is being towed.

Action to take:

When these conditions are no longer present, the AEB with Pedestrian Detection system will resume automatically.

Condition E

If the AEB system OFF warning light illuminates and “Driving Aids Temporarily limited — Radar interference” appears, the cause is typically:

• Interference affecting the radar sensor from another radar source near the Nissan Rogue.

Action to take:

When the interference is no longer detected, the AEB with Pedestrian Detection system resumes automatically.

Condition F

If the AEB system OFF warning light comes on and the message “Forward Driving Aids temporarily disabled — Front Sensor blocked” is displayed, the following condition is likely:

• The radar sensor area at the front of the vehicle is obstructed or dirty.

Action to take:

Safely stop the Nissan Rogue, turn the engine off, and clean the radar cover with a soft cloth. Restart the engine afterward. If the warning persists, have the system inspected by a NISSAN dealer.

• Driving on routes with limited structures, such as long bridges, desert areas, snow fields, or alongside long walls, may also trigger this warning.

Action to take:

Once these environmental conditions change, the AEB with Pedestrian Detection system will resume automatically.

Condition G

If the Vehicle Dynamic Control (VDC) system is turned OFF, the AEB braking function will not operate. Only the visual and audible alerts will remain active. The AEB system OFF light (orange) illuminates along with the “Limited driver’s aid — VDC setting OFF” message.

Action to take:

Turn the VDC system back ON, and the AEB with Pedestrian Detection system will resume automatically.

System malfunction

If the AEB with Pedestrian Detection system malfunctions, it will switch off automatically. A chime sounds, the AEB system OFF warning light (orange) illuminates, and the message “Malfunction — See Owner’s Manual” appears in the vehicle information display.

Action to take:

If the warning remains after restarting the Nissan Rogue, have the system inspected by a NISSAN dealer.

System maintenance

Basic information

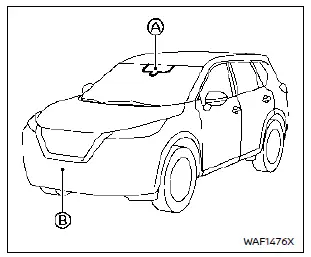

The radar sensor (B) is mounted at the front of the Nissan Rogue, and the camera (A) is positioned on the upper windshield.

To maintain proper AEB with Pedestrian Detection performance, observe the following:

• Ensure the sensor areas on the front bumper and windshield remain clean.
• Avoid impacts or damage in the sensor zones, including the bumper and windshield.
• Do not place stickers, covers, or any objects near the sensor areas, as this can cause system malfunction.
• Avoid installing metallic accessories, such as brush guards, near the radar sensor area—this may interfere with system operation.
• Do not place reflective materials (like white paper or mirrors) on the instrument panel, as reflected sunlight can affect camera detection.
• Do not alter, repaint, or remove body panels around the sensor areas. Before any customization, it is recommended to consult a NISSAN dealer familiar with Nissan Rogue safety systems.

Radio frequency statement

NOTE:

FCC Notice:

For USA:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, even if it may lead to undesired operation of the Nissan Rogue equipment.

NOTE:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this Nissan Rogue–related equipment.

For Canada:

This device includes licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s RSS standards. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation.
