Nissan Rogue (T33) 2021-Present Service Manual: System Description :: Component Parts

Air Bag Module

Driver Air Bag Module

• Driver air bag module is built into steering wheel.

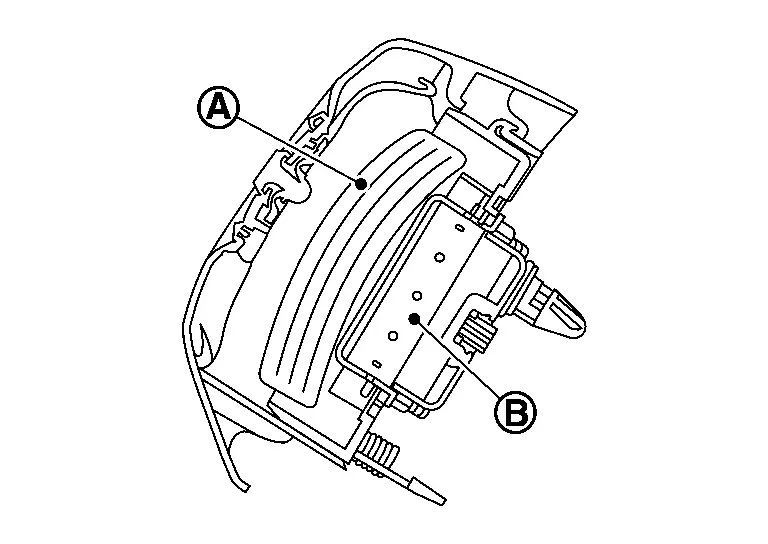

• Driver air bag module mainly consists of air bag (A) and inflator (B) which inflates air bag.

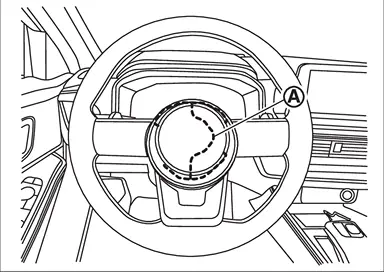

• Driver air bag inflates by breaking steering wheel center pad surface (A).

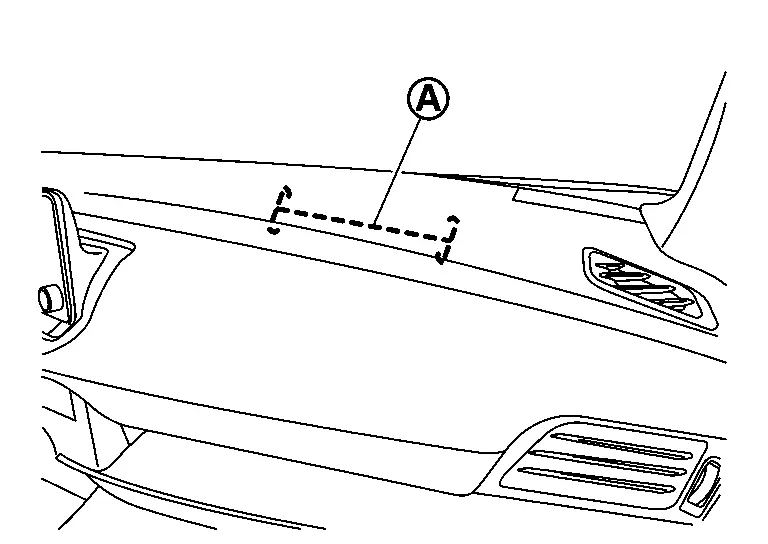

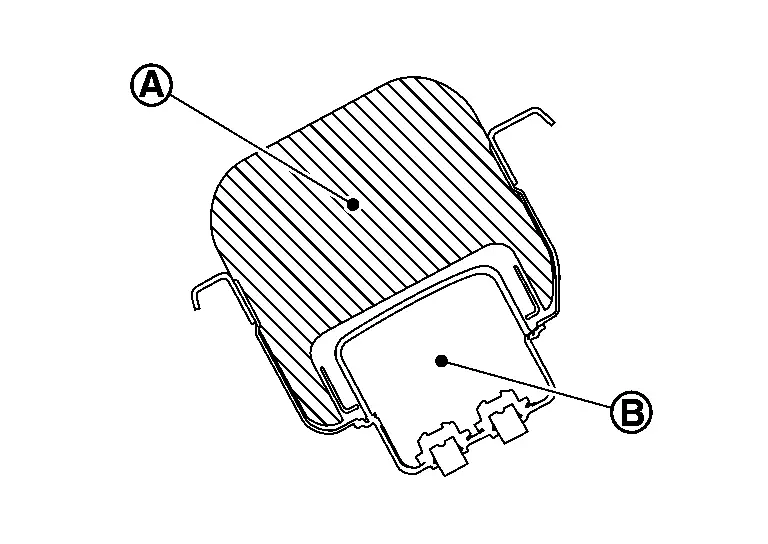

Passenger Air Bag Module

• Passenger air bag module is built into instrument panel assembly.

• Passenger air bag module mainly consists of air bag and inflator which inflates air bag.



• Passenger air bag inflates by breaking instrument panel surface .

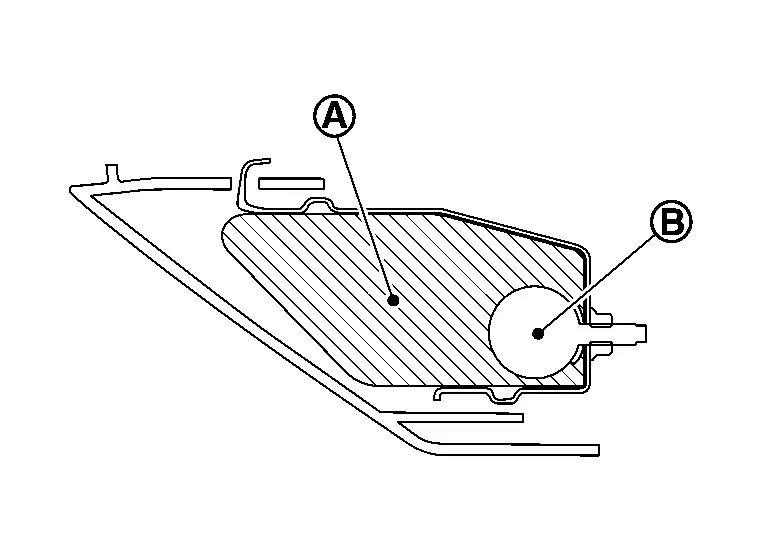

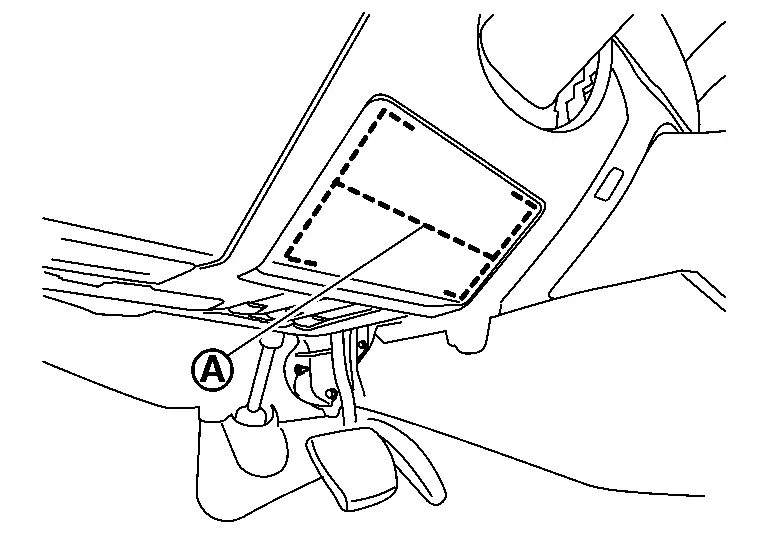

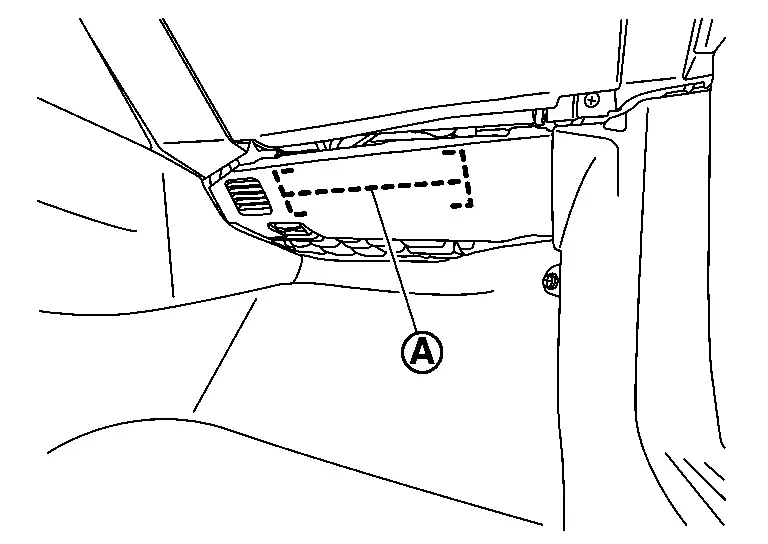

Driver Knee Air Bag Module

• Driver knee air bag module is built into instrument panel assembly.

• Driver knee air bag module mainly consists of air bag and inflator which inflates air bag.



• Driver knee air bag inflates by breaking lid surface .

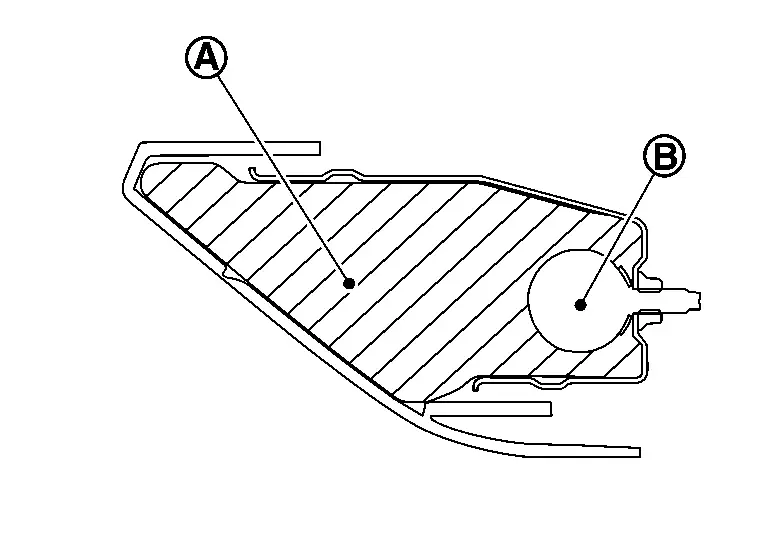

Passenger Knee Air Bag Module

• Passenger knee air bag module is built into instrument panel assembly.

• Passenger knee air bag module mainly consists of air bag and inflator which inflates air bag.



• Passenger knee air bag inflates by breaking lid surface .

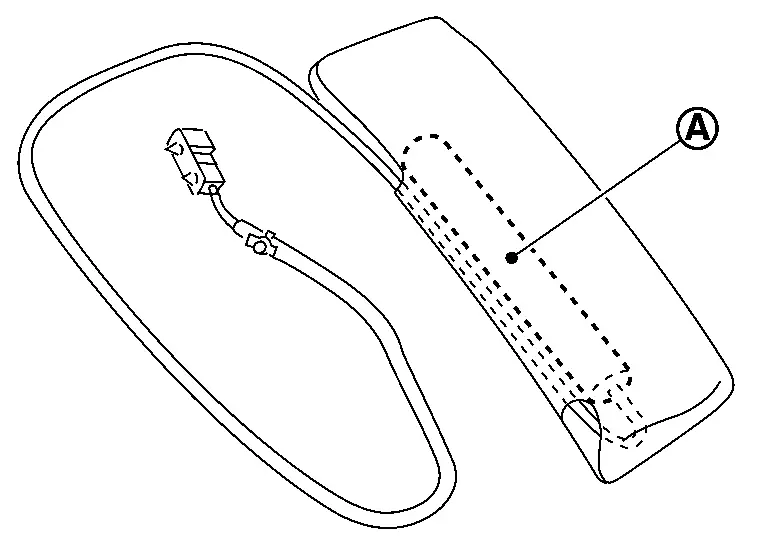

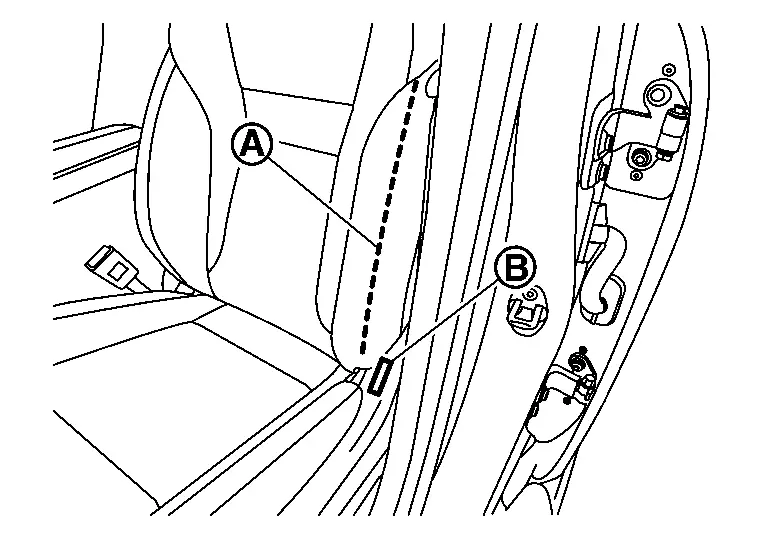

Front Side Air Bag Module

• Front side air bag module is built into seatback outside.

• Front side air bag module mainly consists of air bag and inflator which inflates air bag.



• Identification mark is installed to outside seat cushion finisher outer indicating that front side air bag is equipped.



• Front side air bag inflates through seatback side stitch .

Front Center Air Bag Module

• Front center air bag module is built into seatback inside of driver seat.

• Front center air bag module mainly consists of air bag and inflator which inflates air bag.



• Identification mark is installed to seatback inside stitch of driver seat indicating that front center air bag is equipped.



• Front center air bag inflates through seatback inside stitch of driver seat.

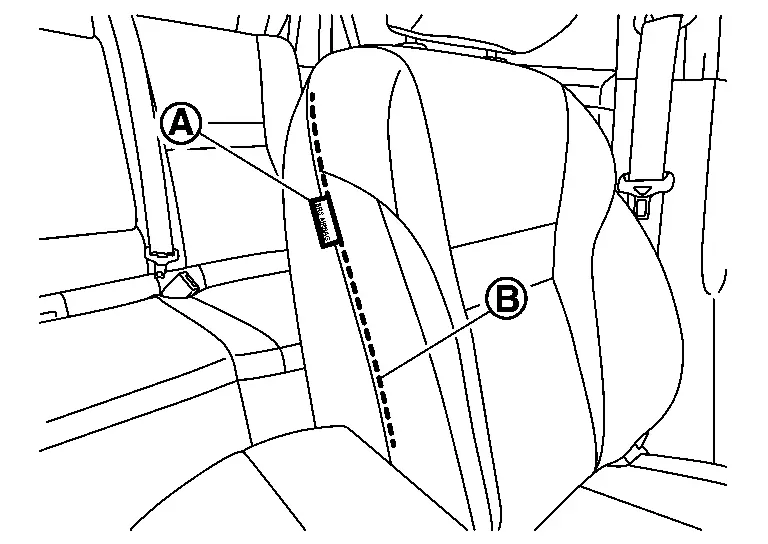

Rear Side Air Bag Module

• Rear side air bag module is built into seatback bolster.

• Rear side air bag module mainly consists of air bag and inflator which inflates air bag.



• Identification mark is installed to seatback bolster indicating that rear side air bag is equipped.



• Rear side air bag inflates through seatback bolster stitch of driver seat.

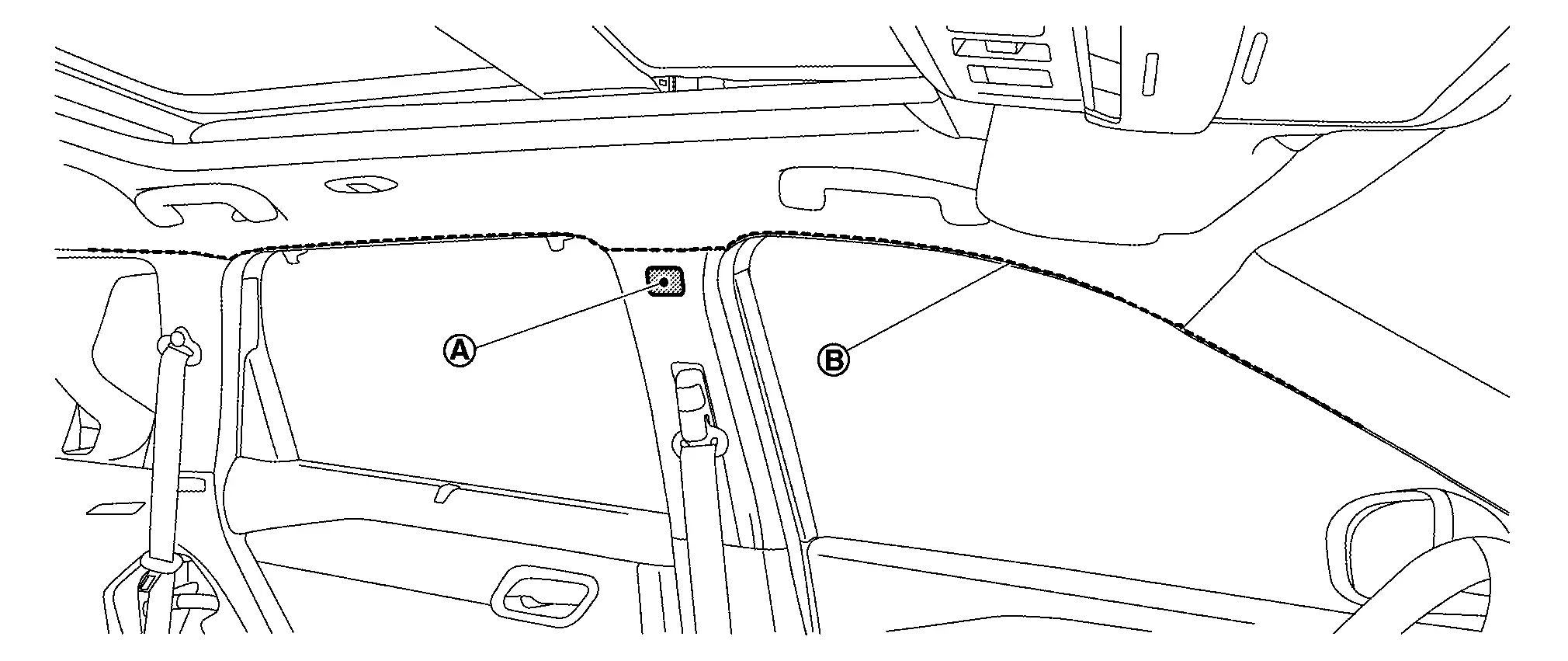

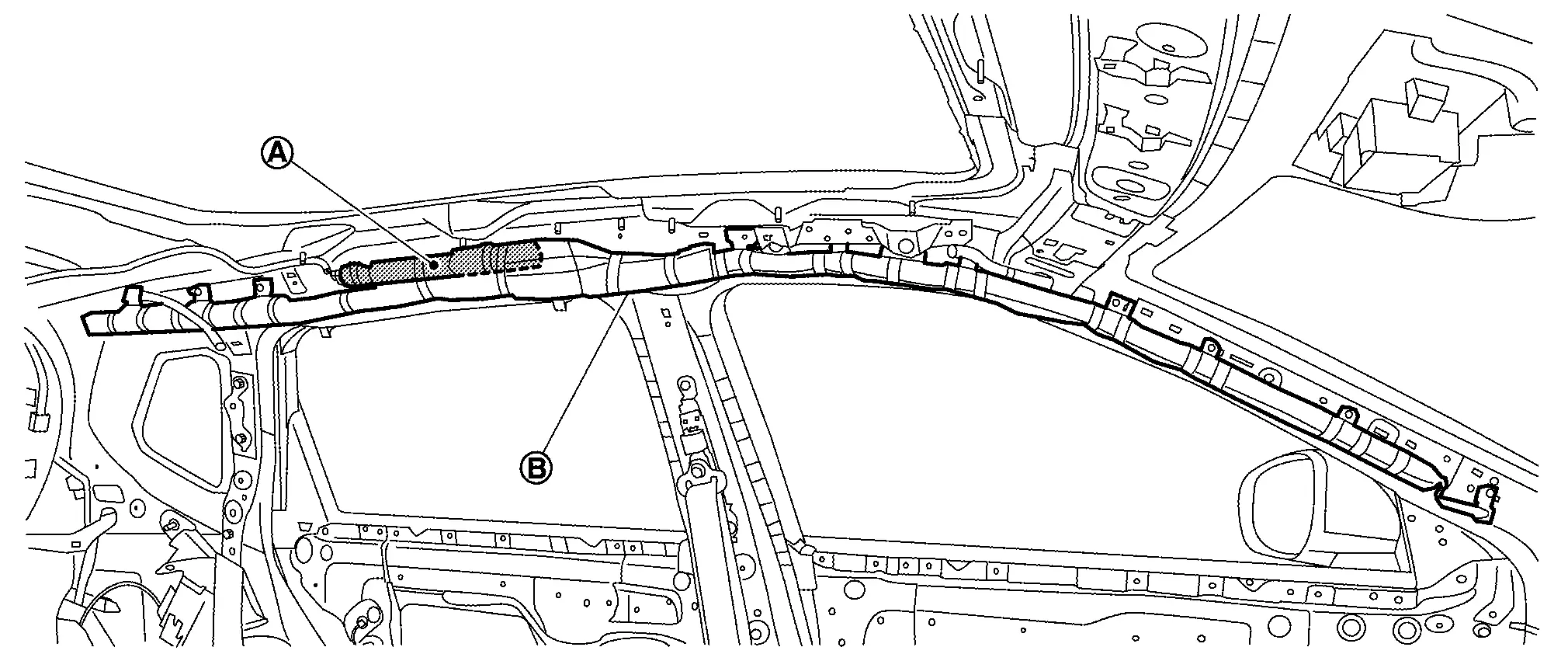

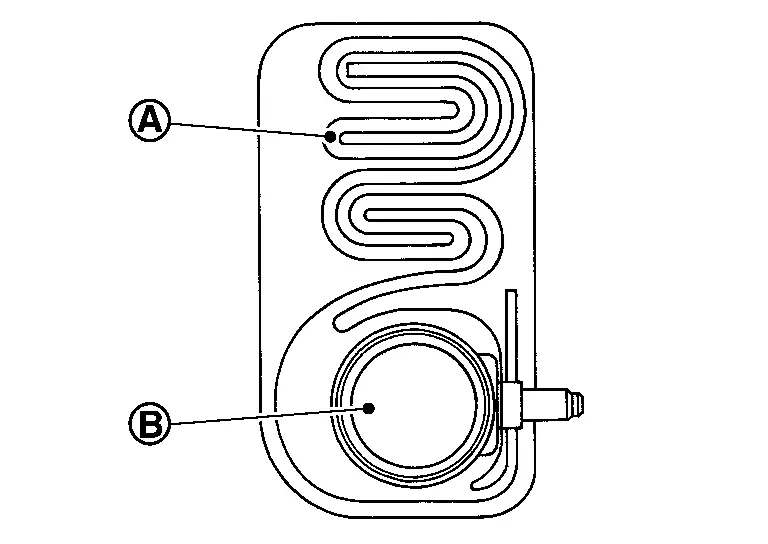

Curtain Air Bag Module

• Curtain air bag module is built into roof side portion.

• Curtain air bag module mainly consists of air bag and inflator which inflates air bag.



• Identification mark is installed to center pillar upper garnish upper indicating that curtain air bag is equipped.



• Curtain air bag inflates through a space between headliner and roof side portion.

Inflator

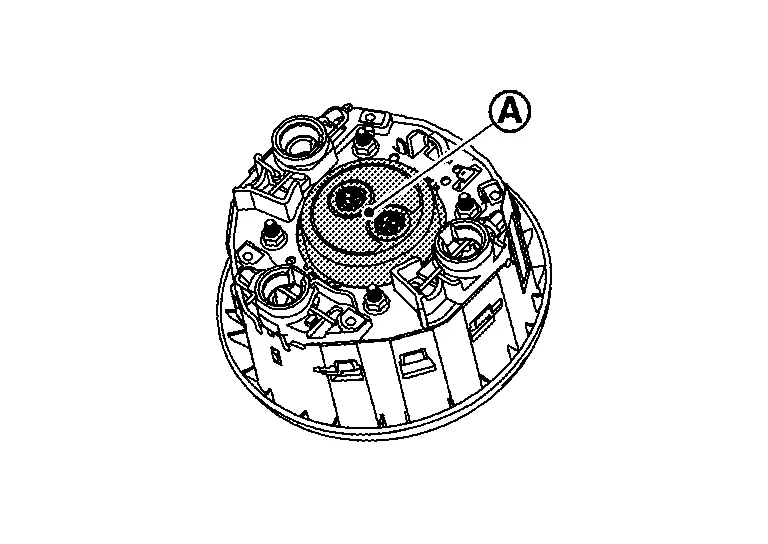

Driver Air Bag Inflator

• Driver air bag inflator mainly consists of electric ignition device (squib), igniting agent, gas generating agent, and filter. These items are stored in a container.



• In a frontal collision which exceeds the specified limit of the Nissan Ariya vehicle, electric ignition device (squib) ignites igniting agent. Gas generating agent burns due to heat from igniting agent. Generated gas (high temperature) inflates air bag through filter.

  NOTE:

  Filter removes and cools residues of gas generating agent.

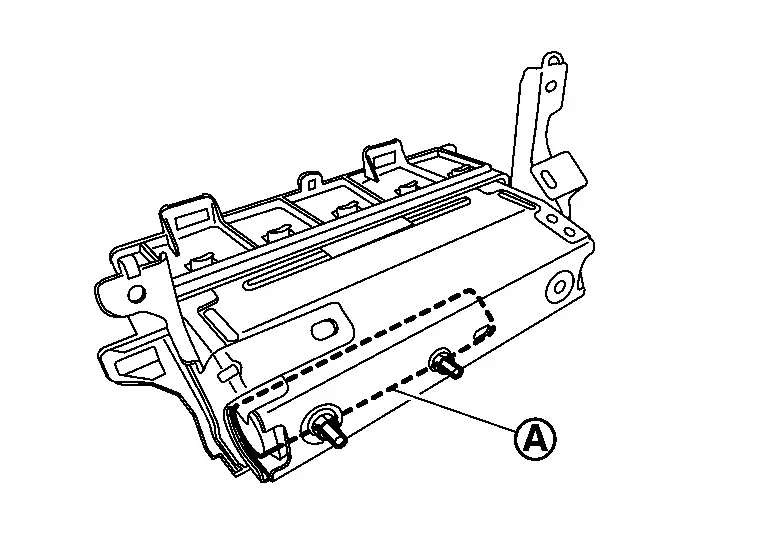

Passenger Air Bag Inflator

• Passenger air bag inflator mainly consists of electric ignition device (squib), igniting agent, gas generating agent, and filter. These items are stored in a container.



• In a frontal collision which exceeds the specified limit of the Nissan Ariya vehicle, electric ignition device (squib) ignites igniting agent. Gas generating agent burns due to heat from igniting agent. Generated gas (high temperature) inflates air bag through filter.

  NOTE:

  Filter removes and cools residues of gas generating agent.

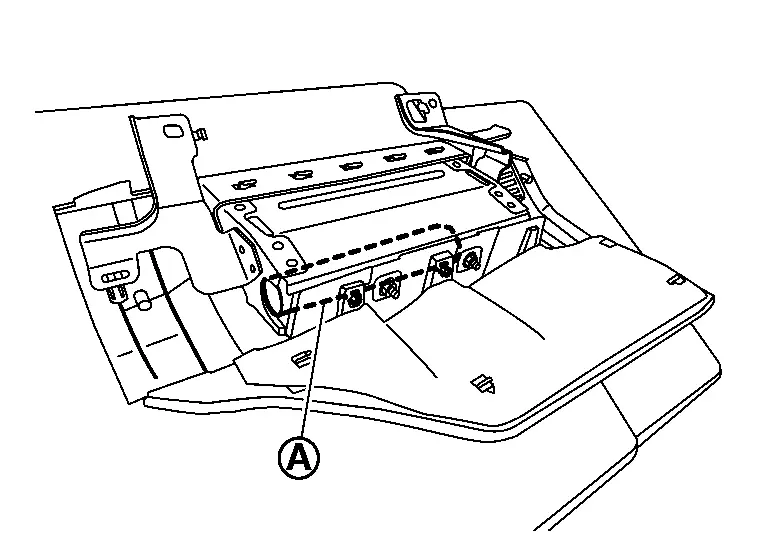

Driver Knee Air Bag Inflator

• Driver knee air bag inflator mainly consists of electric ignition device (squib), igniting agent, gas generating agent, and filter. These items are stored in a container.



• In a frontal collision which exceeds the specified limit of the Nissan Ariya vehicle, electric ignition device (squib) ignites igniting agent. Gas generating agent burns due to heat from igniting agent. Generated gas (high temperature) inflates air bag through filter.

  NOTE:

  Filter removes and cools residues of gas generating agent.

Passenger Knee Air Bag Inflator

• Passenger knee air bag inflator mainly consists of electric ignition device (squib), igniting agent, gas generating agent, and filter. These items are stored in a container.



• In a frontal collision which exceeds the specified limit of the Nissan Ariya vehicle, electric ignition device (squib) ignites igniting agent. Gas generating agent burns due to heat from igniting agent. Generated gas (high temperature) inflates air bag through filter.

  NOTE:

  Filter removes and cools residues of gas generating agent.

Front Side Air Bag Inflator

• Front side air bag inflator mainly consists of electric ignition device (squib), igniting agent, gas generating agent, and filter. These items are stored in a cylinder-type container.



• In a side collision which exceeds the specified limit of the Nissan Ariya vehicle, electric ignition device (squib) ignites igniting agent. Gas generating agent burns due to heat from igniting agent. Generated gas (high temperature) inflates air bag through filter.

  NOTE:

  Filter removes and cools residues of gas generating agent.

Front Center Air Bag Inflator

• Front center air bag inflator mainly consists of electric ignition device (squib), heating agent, compressed gas, gas generating agent, filter, and diffuser. These items are stored in a cylinder-type container.



• In a side collision which exceeds the specified limit of the Nissan Ariya vehicle, electric ignition device (squib) ignites igniting agent. Gas generating agent burns due to heat from igniting agent. Generated gas (high temperature) inflates air bag through filter.

  NOTE:

  Filter removes and cools residues of gas generating agent.

Rear Side Air Bag Inflator

• Rear side air bag inflator mainly consists of electric ignition device (squib), igniting agent, gas generating agent, and filter. These items are stored in a cylinder-type container.



• In a side collision which exceeds the specified limit of the Nissan Ariya vehicle, electric ignition device (squib) ignites igniting agent. Gas generating agent burns due to heat from igniting agent. Generated gas (high temperature) inflates air bag through filter.

  NOTE:

  Filter removes and cools residues of gas generating agent.

Curtain Air Bag Inflator

• Curtain air bag inflator mainly consists of electric ignition device (squib), heating agent, compressed gas, and diffuser. These items are stored in a cylinder-type container.



• In a side collision which exceeds the specified limit of the Nissan Ariya vehicle, electric ignition device (squib) ignites igniting agent. Gas generating agent burns due to heat from igniting agent, then, the generant compressed gas is released. Generated gas (high temperature) inflates air bag through filter.

  NOTE:

  Filter removes and cools residues of gas generating agent.

Main Component Parts and Functions

Spiral Cable

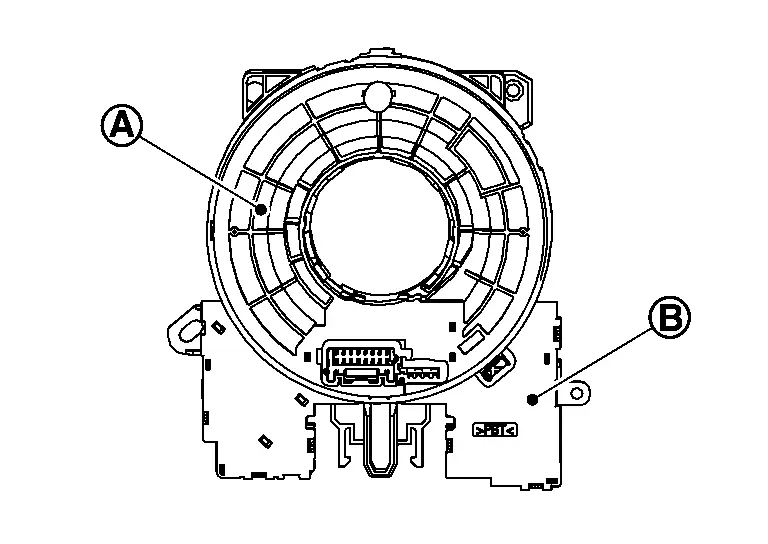

• Spiral cable electrically connects air bag diagnosis sensor unit and driver air bag module. Spiral cable mainly consists of the rotating portion which performs the same movement as steering wheel, the fixed case which is installed on steering wheel, and the cable which connects the rotating portion.



• Spiral cable is built into steering angle sensor which is installed to a space between combination switch and steering wheel.

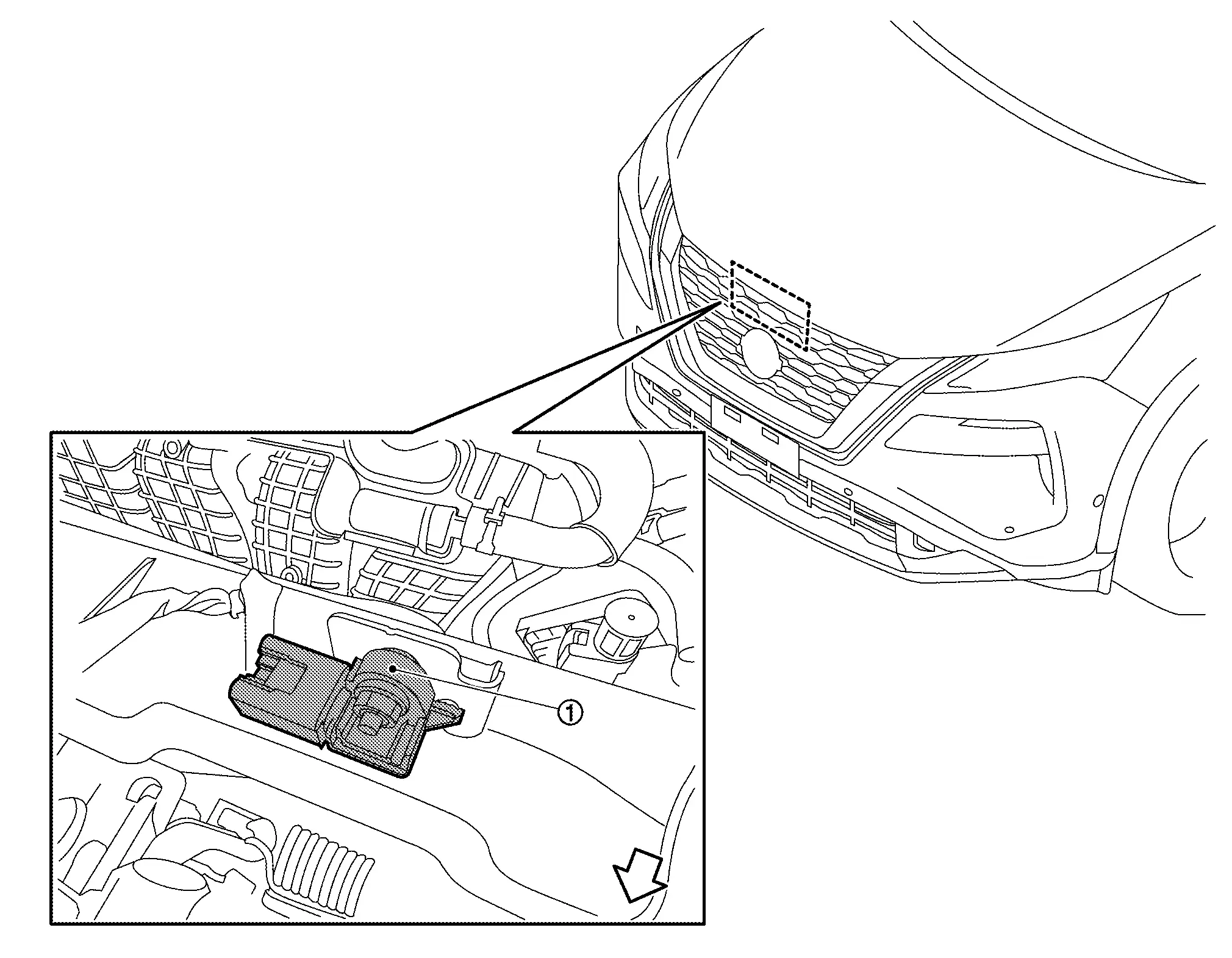

Crash Zone Sensor

• Crush zone sensor is installed to crash zone sensor bracket. Crash zone sensor integrates frontal collision “G” sensor which detects frontal collision impact that exceeds the specified limit of the Nissan Ariya vehicle.



  : Nissan Ariya Vehicle front

• In a frontal collision that exceeds the specified limit of the Nissan Ariya vehicle, crush zone sensor detects impact. If frontal collision safing sensor in air bag diagnosis sensor unit judges that impact is due to a collision, driver air bag, passenger air bag, driver knee air bag, passenger knee air bag and seat belt pre-tensioner (front and rear) operate.

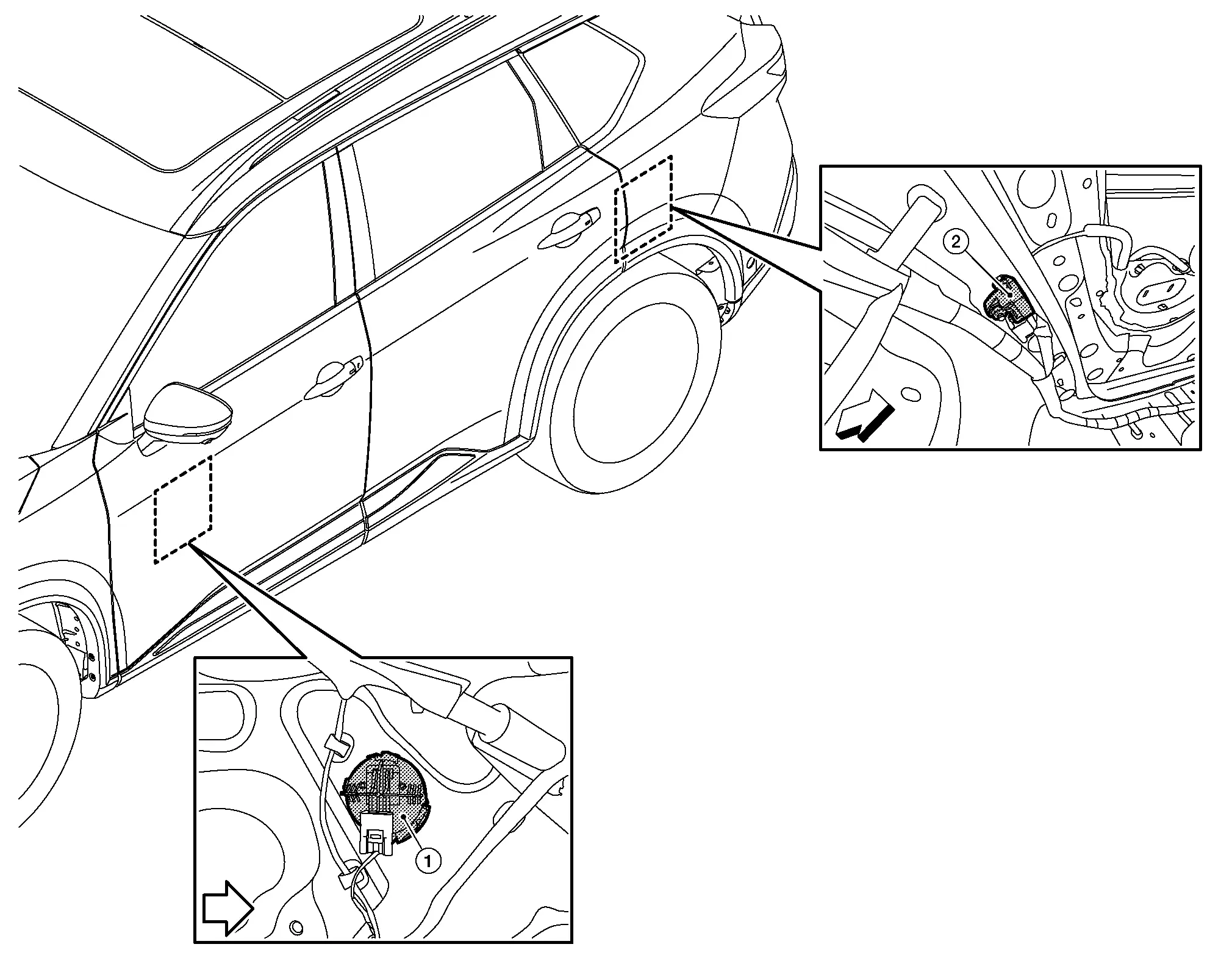

Satellite Sensor

• Front door satellite sensor is installed to front door panel.



  : Nissan Ariya Vehicle front

• C-pillar satellite sensor is installed to luggage side lower finisher remove portion of the C-pillar.

• Front door satellite sensor is equipped with side collision pressure sensor which detects side collision impact that exceeds the specified limit of the Nissan Ariya vehicle.

• C-pillar satellite sensor are equipped with side collision G sensor which detects side collision impact that exceeds the specified limit of the Nissan Ariya vehicle.

• In a side collision that exceeds the specified limit of the vehicle, satellite sensor detects impact. If side collision safing sensor in air bag diagnosis sensor unit judges that impact is due to a collision, front side air bag, front center air bag, rear side air bag, curtain air bag and seat belt pre-tensioner operate.

Air Bag Diagnosis Sensor Unit

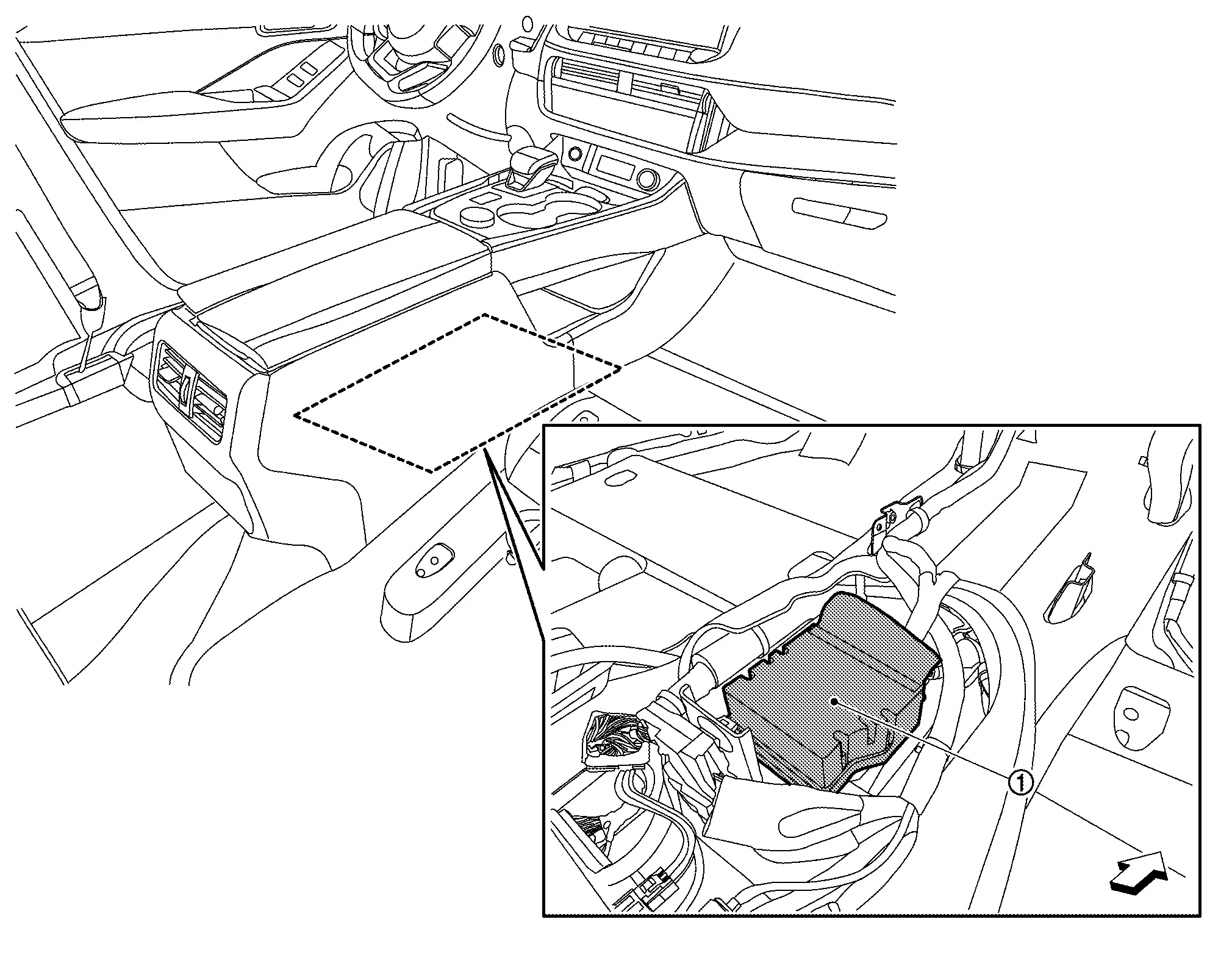

• Air bag diagnosis sensor unit is installed to front seat center portion (under center console). Air bag diagnosis sensor unit integrates control functions of driver air bag, passenger air bag, driver knee air bag, passenger knee air bag, front side air bag, front center air bag, rear side air bag, curtain air bag and seat belt pre-tensioner.



  : Nissan Ariya Vehicle front

• Air bag diagnosis sensor unit integrates frontal collision G sensor, frontal collision safing sensor, and side collision safing sensor.

• Air bag diagnosis sensor unit has a function that judges impact due to frontal and side collisions exceeding the specified limit of the Nissan Ariya vehicle. Air bag diagnosis sensor unit also has an auxiliary power supply function that supplements battery power supply in the event battery is damaged in a collision.

• Air bag diagnosis sensor unit diagnoses electric system of entire air bag system. Self-diagnosis function is adopted, which indicates system malfunction by turning ON air bag warning lamp on combination meter when a malfunction is detected. Diagnosis using CONSULT is possible.

Air Bag Warning Lamp

• Air bag warning lamp turns ON or blinks indicating a system malfunction when a malfunction is detected for electric system of SRS air bag system and seat belt pre-tensioner system.



• For operation check purposes, air bag warning lamp turns ON for 7 seconds after power switch is turned ON. During this period of time, air bag diagnosis sensor unit performs system diagnosis.

  NOTE:

  SRS air bag and seat belt pre-tensioner do not operate for approximately 7 seconds (air bag warning lamp is turning ON) after power switch is turned ON.

Occupant Detection System Sensor

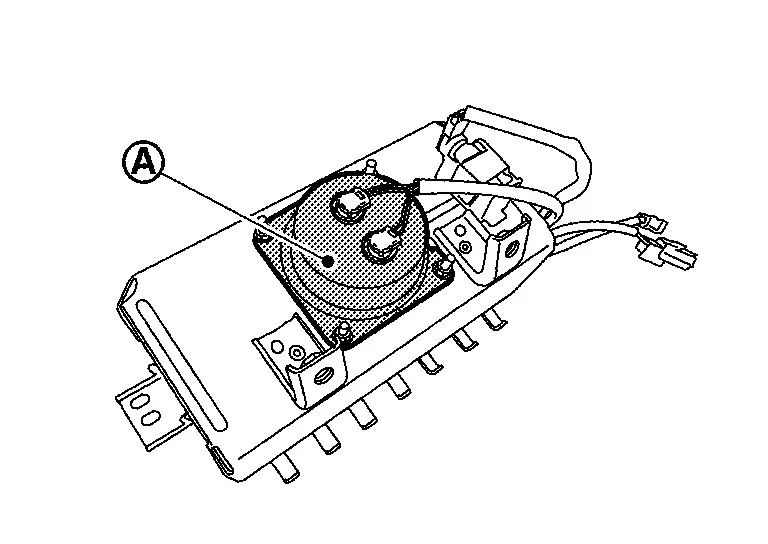

• Occupant detection system sensor installed in the passenger seat track portion of the frame.

• Occupant detection system sensor transmits the passenger seat status (occupied or empty) to occupant detection system control unit.

Occupant Detection System Control Unit

• Occupant detection system control unit installed under the passenger seat cushion frame.

• Occupant detection system control unit transmits the passenger seat status (occupied or empty) to air bag diagnosis sensor unit.

Front Passenger Air Bag OFF Indicator

Front passenger air bag OFF indicator indicates whether or not passenger air bag is in the activation mode based on the judgement of occupant detection system.
