Nissan Rogue (T33) 2021-Present Service Manual: Service Data and Specifications (sds)
Wheel Alignment
| Item | Standard | |||
|---|---|---|---|---|
|
Camber Degree minute (Decimal degree) |
Minimum | –1° 15′ (–1.25°) | ||
| Nominal | –0° 30′ (–0.50°) | |||
| Maximum | 0° 15′ (0.25°) | |||
| Left and right difference *1 | [–0° 33′ (–0.55°)] - [0° 33′ (0.55°)] | |||
|
Caster Degree minute (Decimal degree) |
Minimum | 4° 50′ (4.84°) | ||
| Nominal | 5° 35′ (5.58°) | |||
| Maximum | 6° 20′ (6.33°) | |||
| Left and right difference *1 | [–0° 30′ (–0.50°)] - [0° 30′ (0.50°)] | |||
|
Kingpin inclination Degree minute (Decimal degree) |
Minimum | 10° 40′ (10.67°) | ||
| Nominal | 11° 25′ (11.42°) | |||
| Maximum | 12° 10′ (12.17°) | |||
| Toe-in |
Total toe-in Distance |
Minimum | Out 0.6 mm (Out 0.024 in) | |
| Nominal | In 1.9 mm (In 0.075 in) | |||
| Maximum | In 4.4 mm (In 0.173 in) | |||
|
Total toe-angle Degree minute (Decimal degree) |
Minimum | Out 0° 03′ (Out 0.05°) | ||
| Nominal | In 0° 09′ (In 0.15°) | |||
| Maximum | In 0° 21′ (In 0.35°) | |||
Measure value under unladen*2 conditions.
*1: A difference when assuming the left side a standard.
*2: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
Ball Joint
| Item | Standard |
|---|---|
| Swing torque | 0.5 – 3.4 N·m (0.06 – 0.34 kg-m, 5 – 30 in-lb) |
| Measurement on spring balance | 13.5 – 91.9 N (1.4 – 9.4 kg, 3 – 21 lb) |

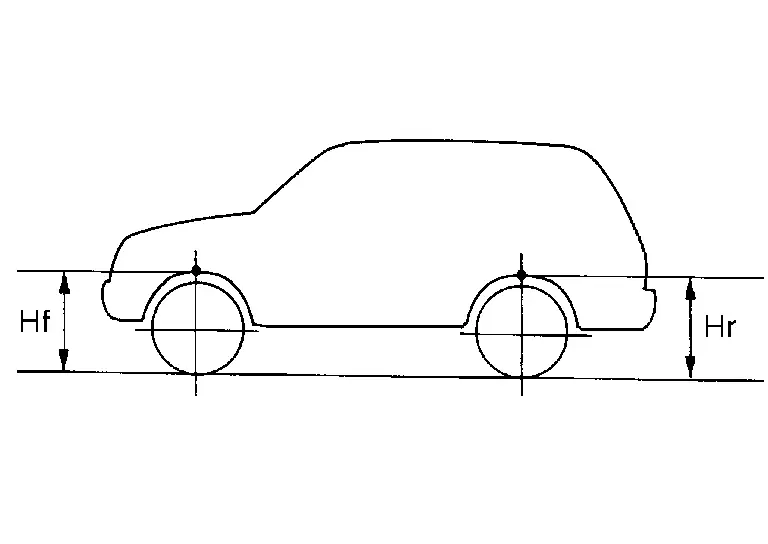

Wheelarch Height
JAPAN PRODUCTION MODELS
2WD
| Item | Standard | ||
|---|---|---|---|
| Tire size | 235/65R17 | 235/60R18 | 235/55R19 |
| Front (Hf) | 829 mm (32.64 in) | 828 mm (32.60 in) | 830 mm (32.68 in) |
| Rear (Hr) | 832 mm (32.76 in) | 832 mm (32.76 in) | 833 mm (32.80 in) |
|
|
|||
Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
AWD
| Item | Standard | ||
|---|---|---|---|
| Tire size | 235/65R17 | 235/60R18 | 235/55R19 |
| Front (Hf) | 829 mm (32.64 in) | 828 mm (32.60 in) | 829 mm (32.64 in) |
| Rear (Hr) | 831 mm (32.72 in) | 831 mm (32.72 in) | 832 mm (32.76 in) |
|
|
|||
Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
NORTH AMERICA PRODUCTION MODELS
2WD
| Item | Standard | ||
|---|---|---|---|
| Tire size | 235/65R17 | 235/60R18 | 235/55R19 |
| Front (Hf) | 828 mm (32.60 in) | 828 mm (32.60 in) | 829 mm (32.64 in) |
| Rear (Hr) | 831 mm (32.72 in) | 831 mm (32.72 in) | 832 mm (32.76 in) |
|
|
|||
Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
AWD
| Item | Standard | ||
|---|---|---|---|
| Tire size | 235/65R17 | 235/60R18 | 235/55R19 |
| Front (Hf) | 827 mm (32.56 in) | 827 mm (32.56 in) | 829 mm (32.64 in) |
| Rear (Hr) | 830 mm (32.68 in) | 830 mm (32.68 in) | 831 mm (32.72 in) |
|
|
|||
Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
