Body Alignment

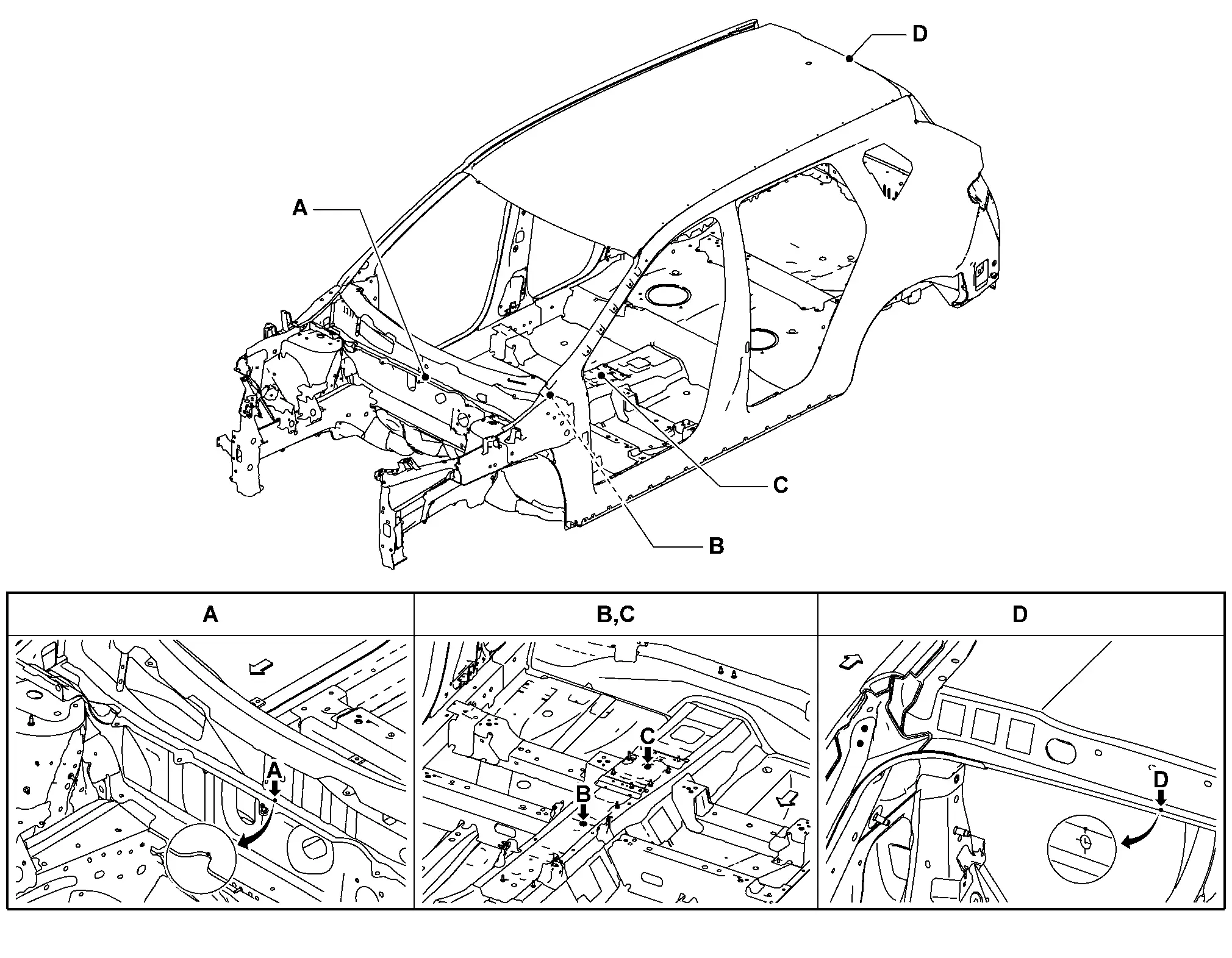

Body Center Marks

Factory marks exist on certain parts of the body to indicate the vehicle center. When repairing the Nissan Ariya vehicle frame (members, pillars, etc.) damaged in an accident, the most accurate and effective repair will be achieved by using these marks together with body alignment specifications.

: Nissan Ariya Vehicle front

Unit: mm (in)

Points	Portion	Marks
A	Center cowl top	Indent
B	Trans control reinforcement	Hole φ16 (0.63)
C	Trans control reinforcement	Hole 16×12 (0.63×0.47)
D	Rear roof	Embossment

Description

All dimensions indicated in the figures are actual.
When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
Measurements should be taken at the center of the mounting holes.
A star mark () following the value at the measuring point indicates that the measuring point on the other side is symmetrically the same value.

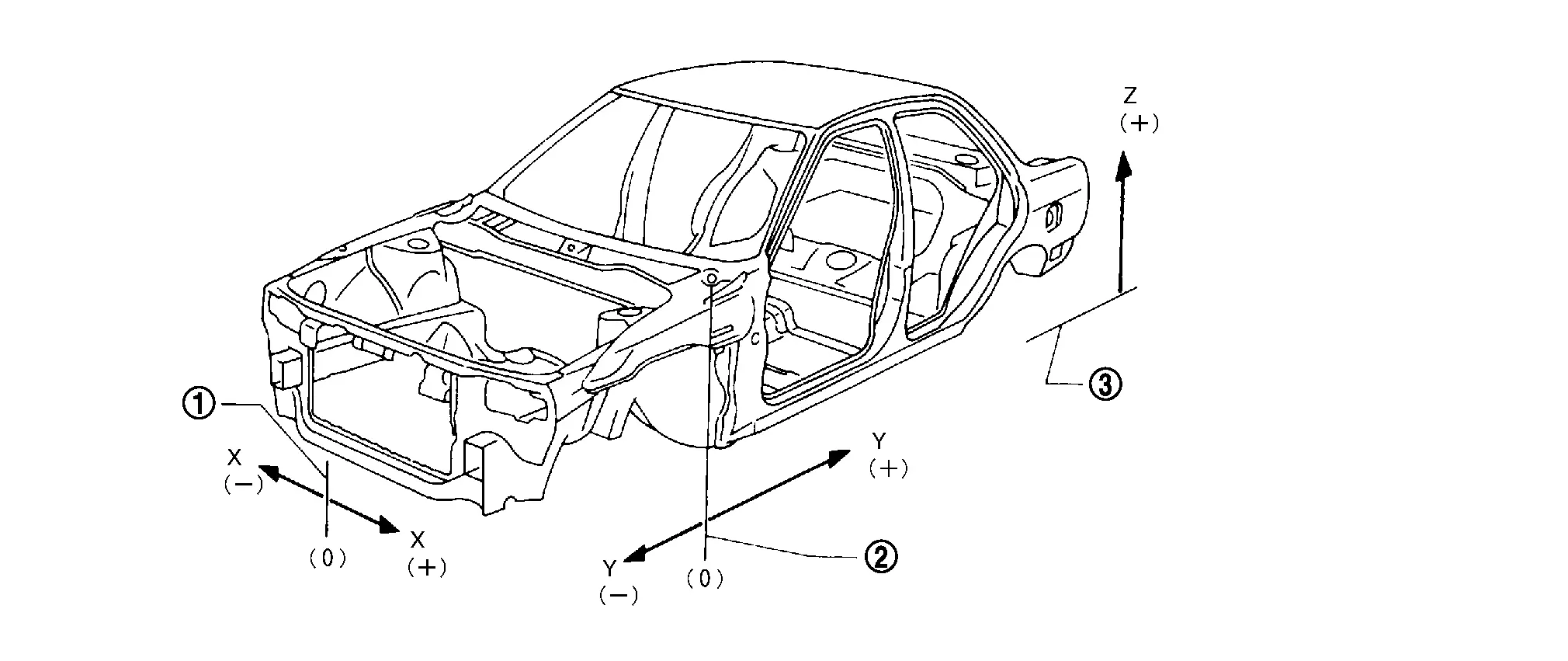

The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″ and ″Z″.
″Z″: Imaginary base line [200 mm (7.87 in) below datum line (″0Z″ at design plan)]

Nissan Ariya Vehicle center

Front axle center

Imaginary base line

Engine Compartment

MEASUREMENT

Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.

Unit: mm (in)

«The others»
Point	Dimension	Point	Dimension	Point	Dimension
–	820 (32.28)	–	1057 (41.61)	–	892 (35.12)
–	845 (33.27)	–	387 (15.24)	–	1028 (40.47)
–	846 (33.31)	–	370 (14.57)	–	1014 (39.92)
–	544 (21.42)	–	1265 (49.80)	–	992 (39.06)
–	500 (19.69)	–	1261 (49.65)	–	969 (38.15)
–	739 (29.09)	–	633 (24.92)	–	364 (14.33)
–	694 (27.32)	–	1160 (45.67)	–	362 (14.25)
–	371 (14.61)	–	1597 (62.87)	–	1083 (42.64)
–	1340 (52.76)	–	1581 (62.24)	–	1084 (42.68)
–	1593 (62.72)	–	1161 (45.71)	—	—
–	1592 (62.68)	–	1178 (46.38)	—	—

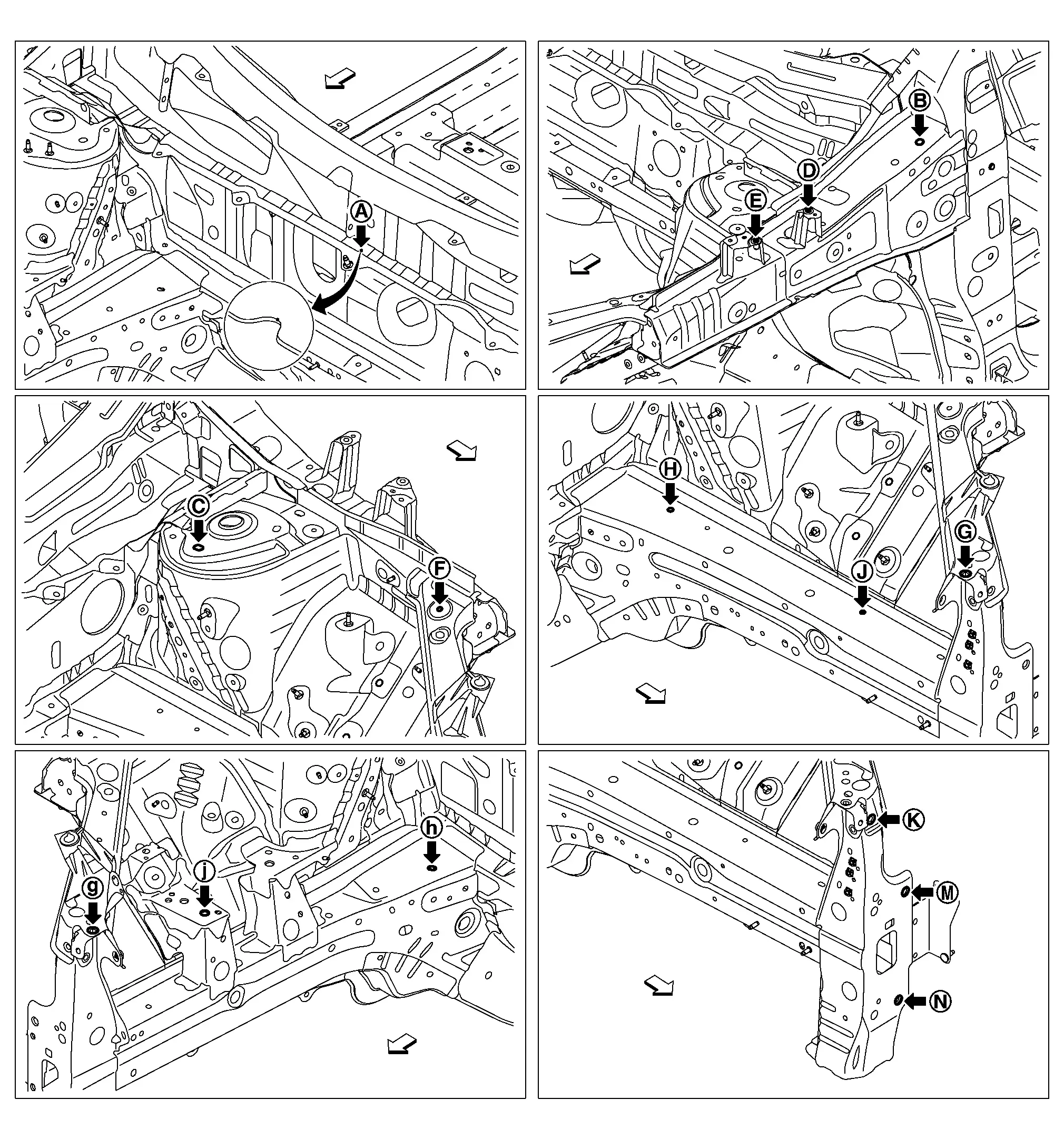

MEASUREMENT POINTS

: Nissan Ariya Vehicle front

Unit: mm (in)

Point	Material	Point	Material
	Center cowl top indent of center positioning mark		Upper radiator core support hole center : φ7 (0.28) : φ16 (0.63)
	Hood hinge installing hole center φ14 (0.55)		Front side member hole center : φ8 (0.31) : 12×7 (0.47×0.28) : φ7 (0.28)
	Front suspension installing hole center 16×11 (0.63×0.43)		Engine mounting bracket hole center φ13 (0.51)
	Front fender installing hole center φ8 (0.31)		Front bumper reinforcement installing hole center φ13 (0.51)

Underbody

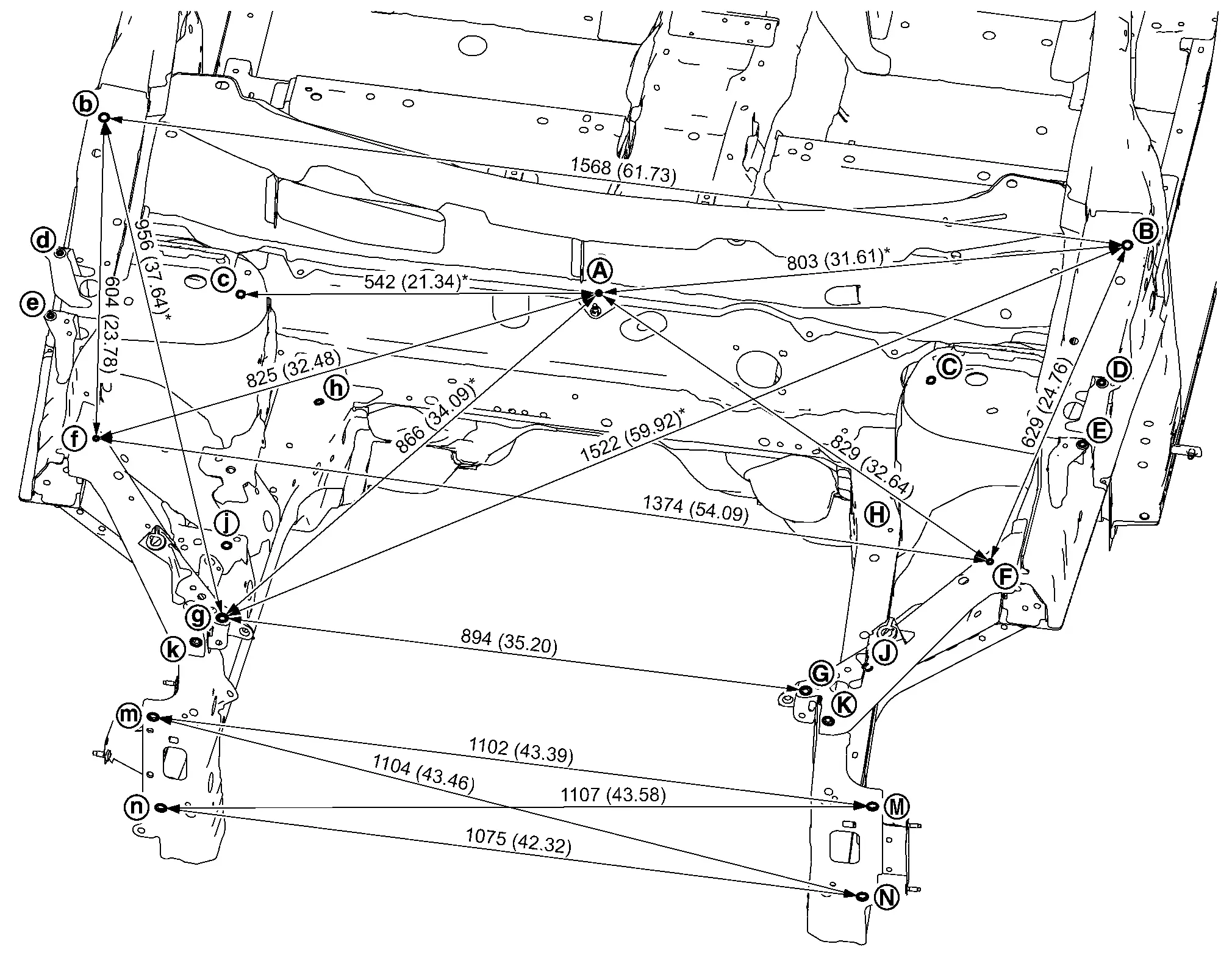

MEASUREMENT

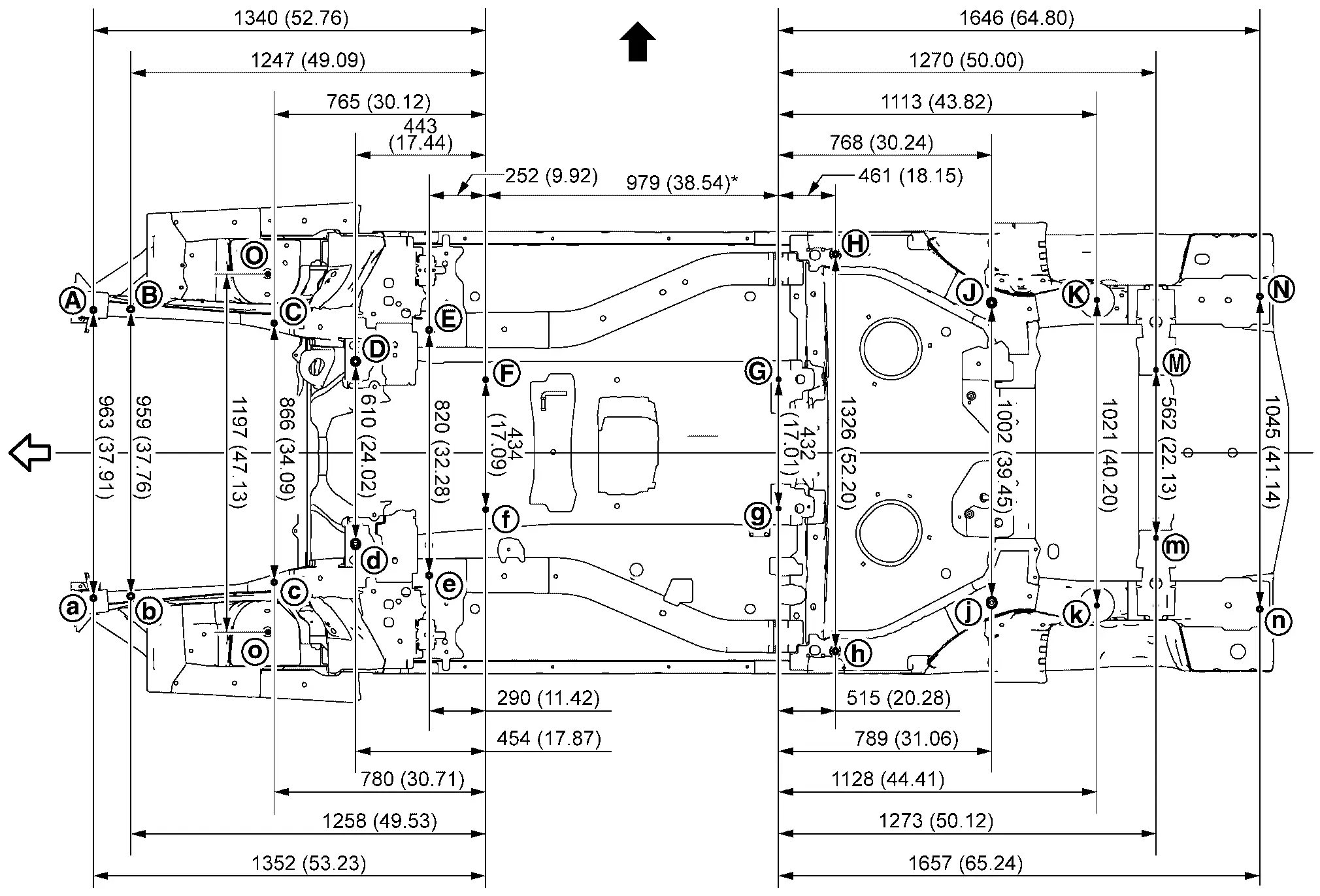

BOTTOM VIEW

Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.

The following figure shows a bottom view of the vehicle.

Unit: mm (in)

: Nissan Ariya Vehicle front

: Vehicle left side

Unit: mm (in)

«The others»
Point	Dimension	Point	Dimension	Point	Dimension
–	1508 (59.37)	–	681 (26.81)	–	1319 (51.93)
–	1478 (58.19)	–	629 (24.76)	–	1286 (50.63)
–	1422 (55.98)	–	1069 (42.09)	–	1376 (54.17)
–	1396 (54.96)	–	1071 (42.17)	–	1351 (53.19)
–	1004 (39.53)	–	929 (36.57)	–	1795 (70.67)
–	969 (38.15)	–	872 (34.33)	–	1771 (69.72)
–	703 (27.68)	–	1040 (40.94)	—	—
–	662 (26.06)	–	998 (39.29)	—	—

LEFT SIDE VIEW

The following figure shows a side view of the vehicle.

Unit: mm (in)

: Nissan Ariya Vehicle front

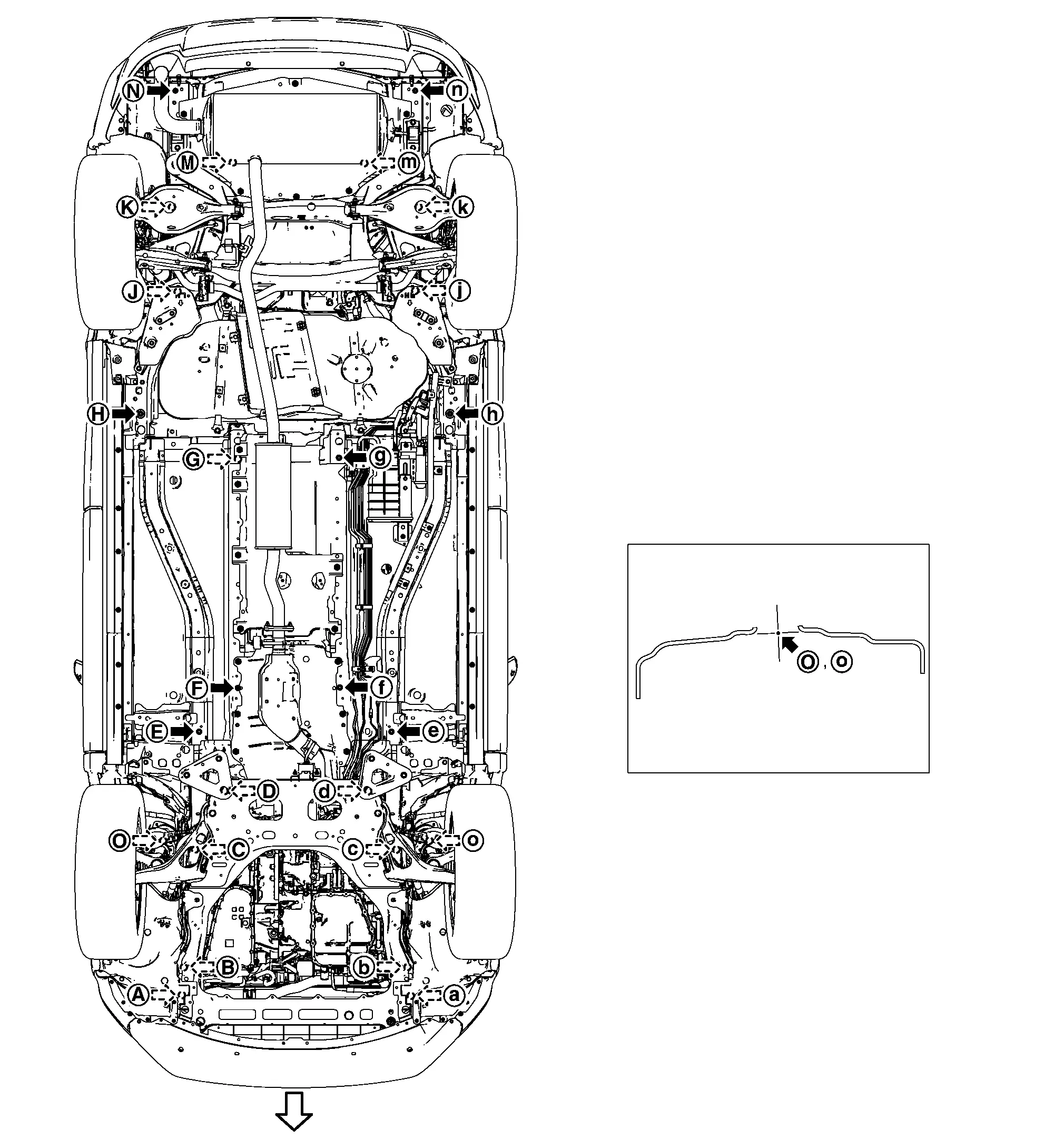

MEASUREMENT POINTS

: Nissan Ariya Vehicle front

Unit: mm (in)

Points	Coordinates			Remarks	Points	Coordinates			Remarks
Points	X	Y	Z	Remarks	Points	X	Y	Z	Remarks
	477.0 (18.779)	−575.0 (−22.638)	335.0 (13.189)	Hole φ16 (0.63)		±663.0 (±26.103)	1905.0 (75.000)	232.7 (9.163)	Hole φ16 (0.63)
	−486.0 (−19.134)	−575.0 (−22.638)	335.0 (13.189)	Hole φ16 (0.63)		±501.0 (±19.724)	2427.0 (95.551)	316.0 (12.441)	: Hole φ29 (1.14) : Hole 34×29 (1.34×1.14)
	±479.5 (±18.878)	−450.0 (−17.717)	492.2 (19.378)	Hole 20×16 (0.79×0.63)		±510.5 (±20.098)	2778.6 (109.393)	376.3 (14.813)	Hole φ10 (0.39)
	±433.0 (±17.047)	29.0 (1.142)	410.9 (16.177)	Hole φ14 (0.55)		277.0 (10.906)	2976.5 (117.185)	323.3 (12.730)	Hole 10×8 (0.39×0.31)
	±305.0 (±12.008)	301.0 (11.851)	247.8 (9.756)	: Hole φ26 (1.02) : Hole 31×26 (1.22×1.02)		−285.0 (−11.220)	2976.5 (117.185)	324.0 (12.755)	Hole 10×8 (0.39×0.31)
	±410.0 (±16.142)	547.0 (21.535)	190.0 (7.480)	Hole φ16 (0.63)		±522.5 (±20.571)	3323.0 (130.827)	400.2 (15.756)	Hole φ15 (0.59)
	244.0 (9.606)	736.0 (28.976)	187.0 (7.362)	Hole φ12 (0.47)		±598.7 (±23.569)	6.8 (0.269)	904.7 (35.619)	Hole φ33 (1.30)
	−190.0 (−7.480)	736.0 (28.976)	187.0 (7.362)	Hole φ12 (0.47)	—	—			—
	245.3 (9.657)	1714.5 (67.500)	188.2 (7.409)	Hole 10×8 (0.39×0.31)
	−186.3 (−7.336)	1714.5 (67.500)	188.2 (7.409)	Hole 10×8 (0.39×0.31)

Passenger Compartment

EXTERIOR

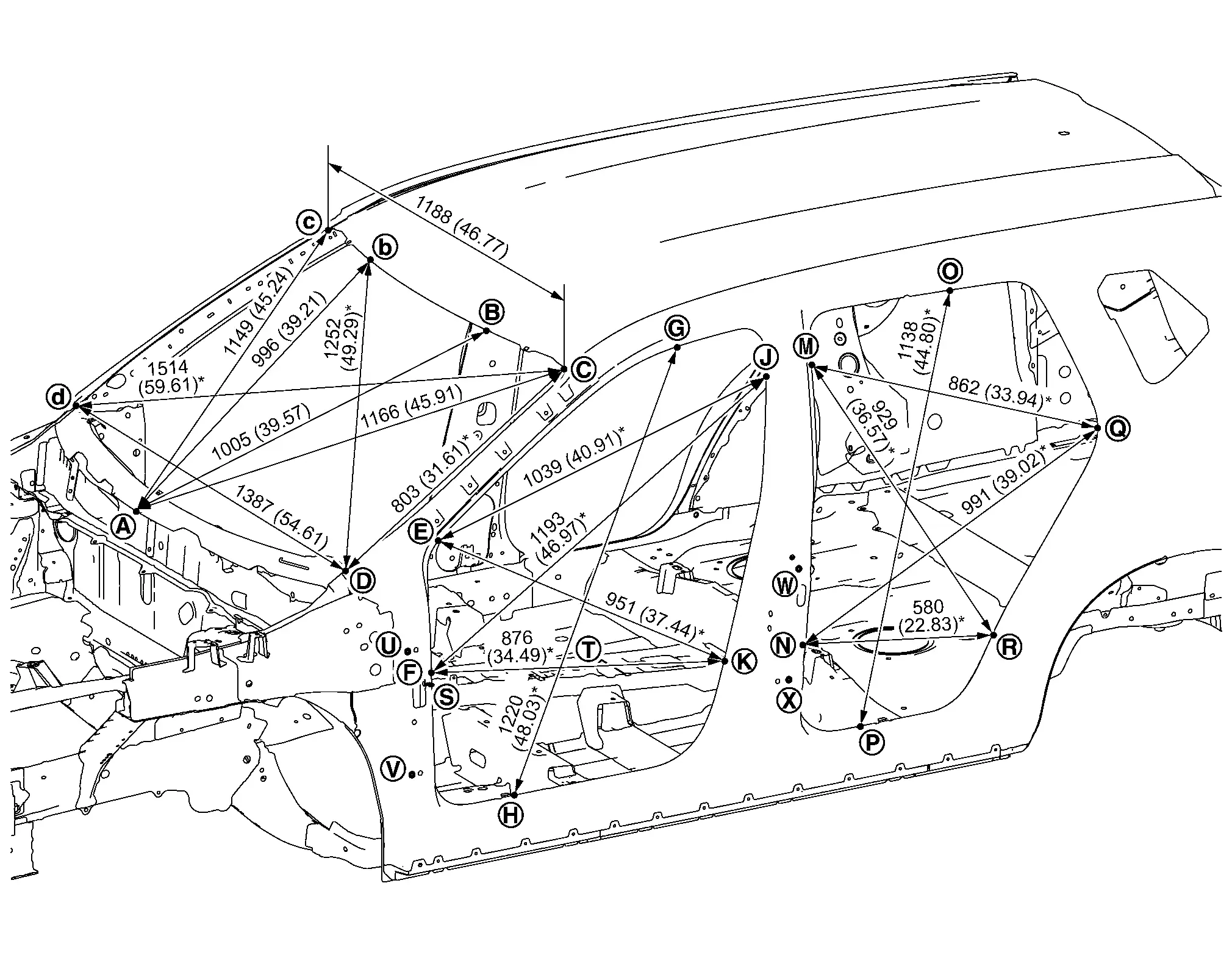

MEASUREMENT

Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.

Unit: mm (in)

«The others»
Point	Dimension	Point	Dimension	Point	Dimension
–	739 (29.09)	–	1568 (61.73)	–	767 (30.20)
–	708 (27.87)	–	1479 (58.23)	–	1290 (50.79)
–	896 (35.28)	–	1284 (50.55)	–	882 (34.72)
–	324 (12.76)	–	1558 (61.34)	–	1207 (47.52)
–	746 (29.37)	–	1600 (62.99)	–	812 (31.97)
–	730 (28.74)	–	1663 (65.47)	–	1439 (56.65)
–	585 (23.03)	–	1476 (58.11)	–	843 (33.19)
–	1423 (56.02)	–	1752 (68.98)	–	1485 (58.46)
–	1478 (58.19)	–	1588 (62.52)	–	1104 (43.46)
–	1706 (67.17)	–	1179 (46.42)	–	1618 (63.70)
–	1734 (68.27)	–	1745 (68.70)	–	1147 (45.16)
–	1462 (57.56)	–	1482 (58.35)	–	1145 (45.08)
–	1817 (71.54)	–	1414 (55.67)	–	1658 (65.28)
–	1712 (67.40)	–	1561 (61.46)	–	1196 (47.09)
–	1196 (47.09)	–	1481 (58.31)	–	1111 (43.74)
–	1805 (71.06)	–	1071 (42.17)	–	1617 (63.66)
–	1481 (58.31)	–	930 (36.61)	–	1642 (64.65)
–	1286 (50.63)	–	1257 (49.49)	—	—

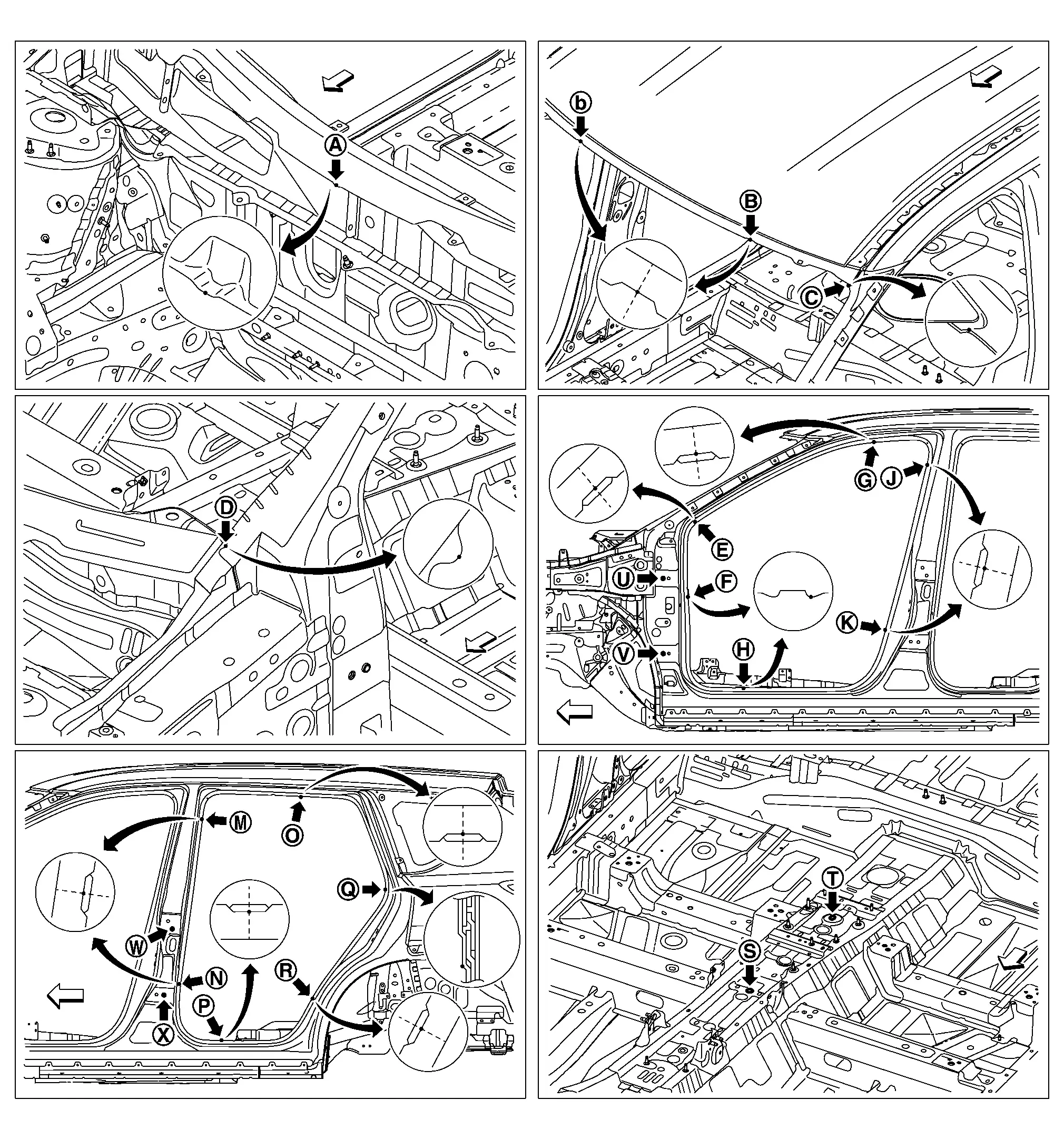

MEASUREMENT POINTS

: Nissan Ariya Vehicle front

Unit: mm (in)

Point	Material	Point	Material
	Cowl top flange end		Center pillar indent
	Roof indent		Wheelhouse member support joggle
	Outer side body joggle		Rear fender indent
	Outer side body indent		Trans control reinforcement hole center of center positioning mark : φ16 (0.63) : 16×12 (0.63×0.47)
	Front pillar indent		Door hinge installing hole center φ12 (0.47)

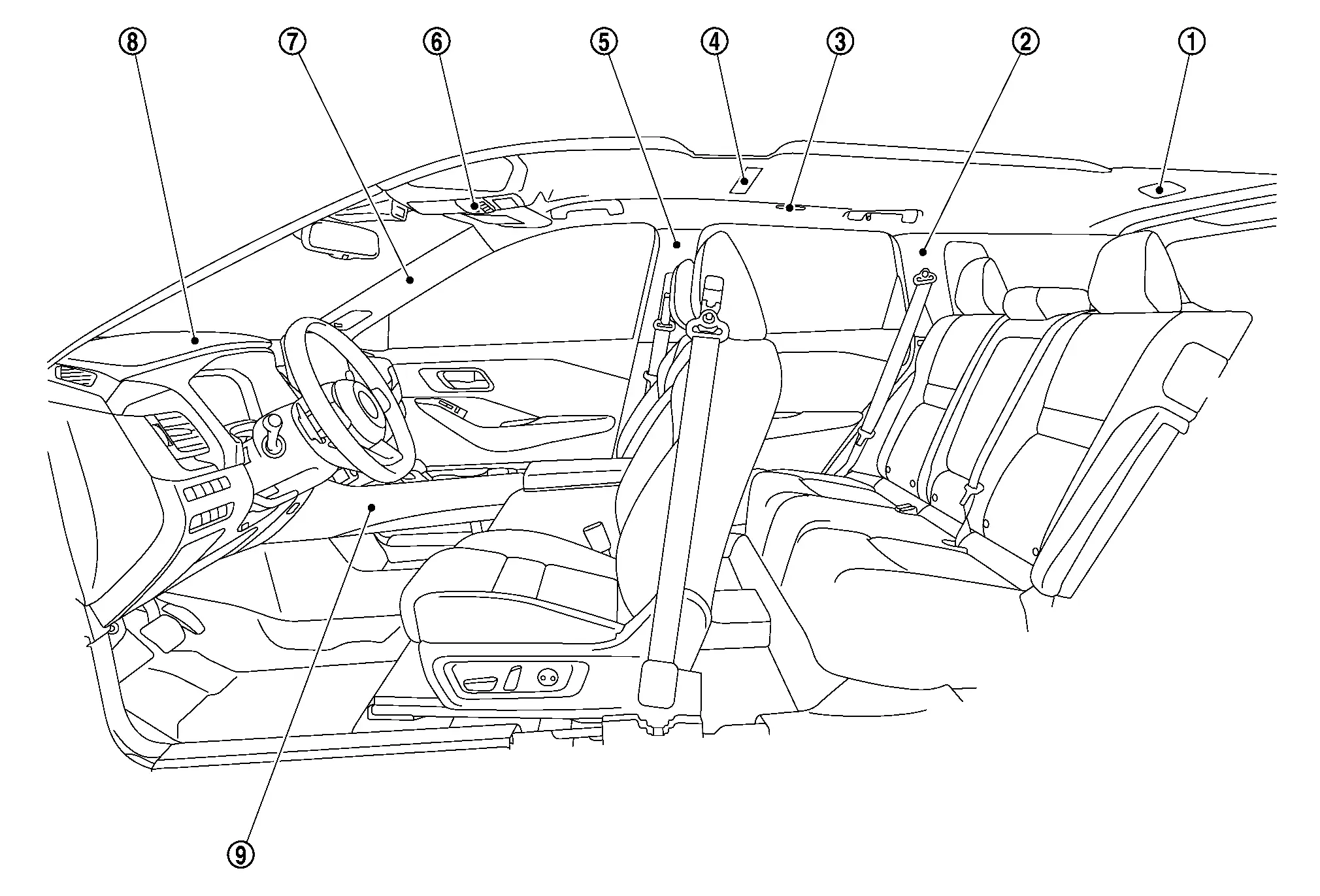

INTERIOR

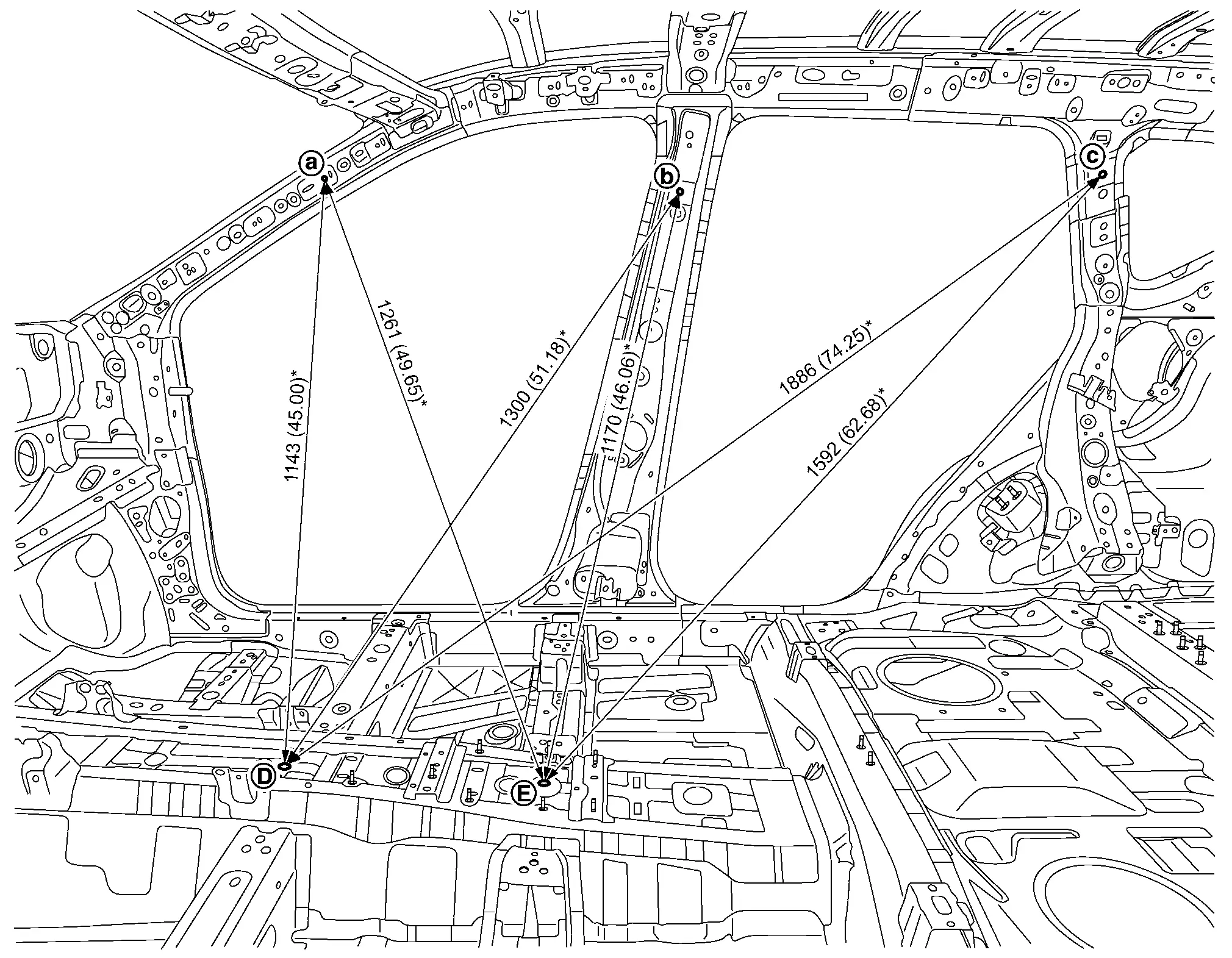

MEASUREMENT

Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.

Unit: mm (in)

«The others»
Point	Dimension	Memo	Point	Dimension	Memo	Point	Dimension	Memo
–	1284 (50.55)		–	1281 (50.43)		–	1240 (48.82)

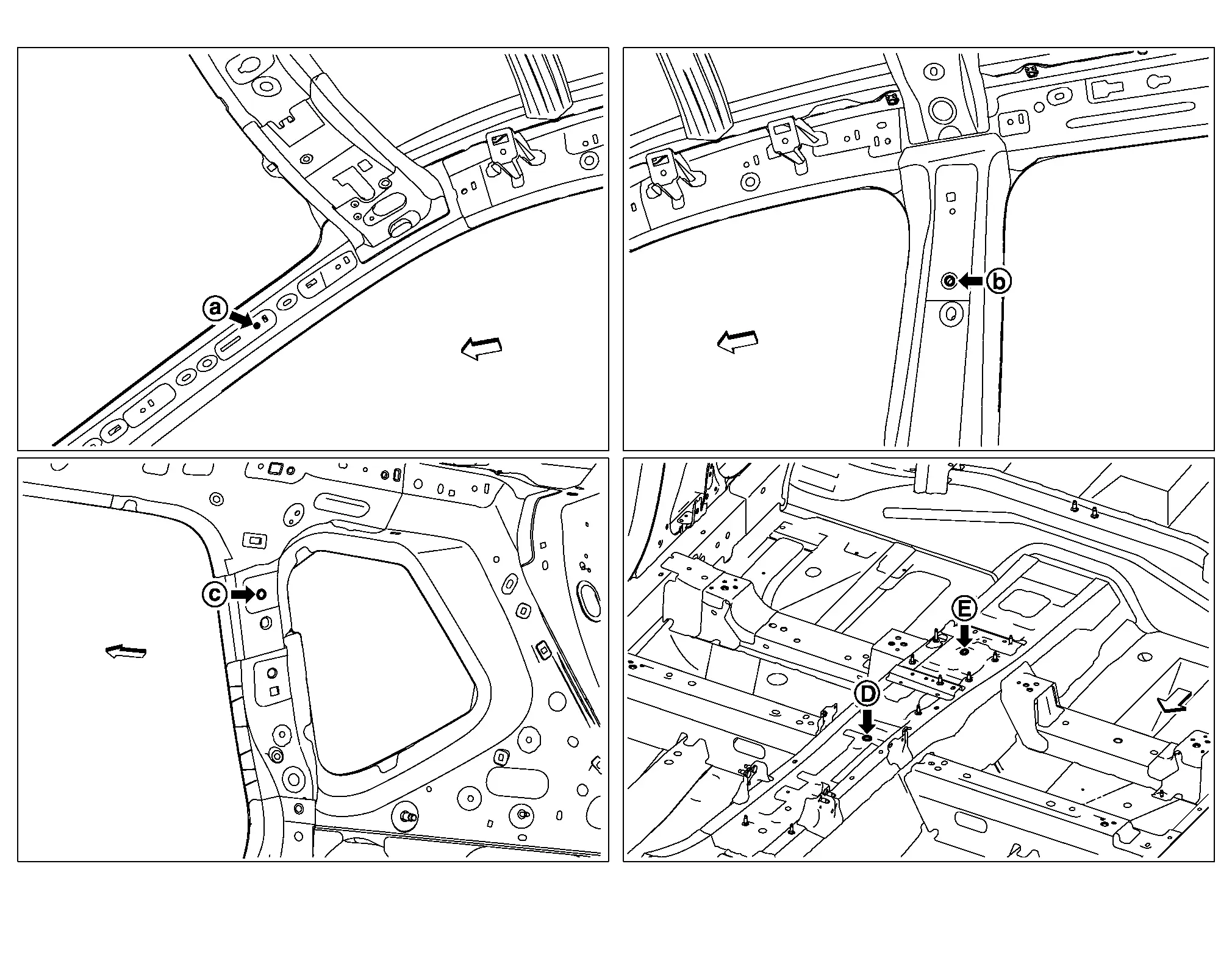

MEASUREMENT POINTS

: Nissan Ariya Vehicle front

Unit: mm (in)

Point	Material	Point	Material
	Upper inner front pillar hole center φ7 (0.28)		Inner rear pillar hole center φ12 (0.47)
	Inner center pillar hole center φ11 (0.43)		Trans control reinforcement hole center of center positioning mark : φ16 (0.63) : 16×12 (0.63×0.47)

Point

Material

Point

Material

Upper inner front pillar hole center φ7 (0.28)

Inner rear pillar hole center φ12 (0.47)

Inner center pillar hole center φ11 (0.43)

Trans control reinforcement hole center of center positioning mark

: φ16 (0.63)

: 16×12 (0.63×0.47)

Rear Body

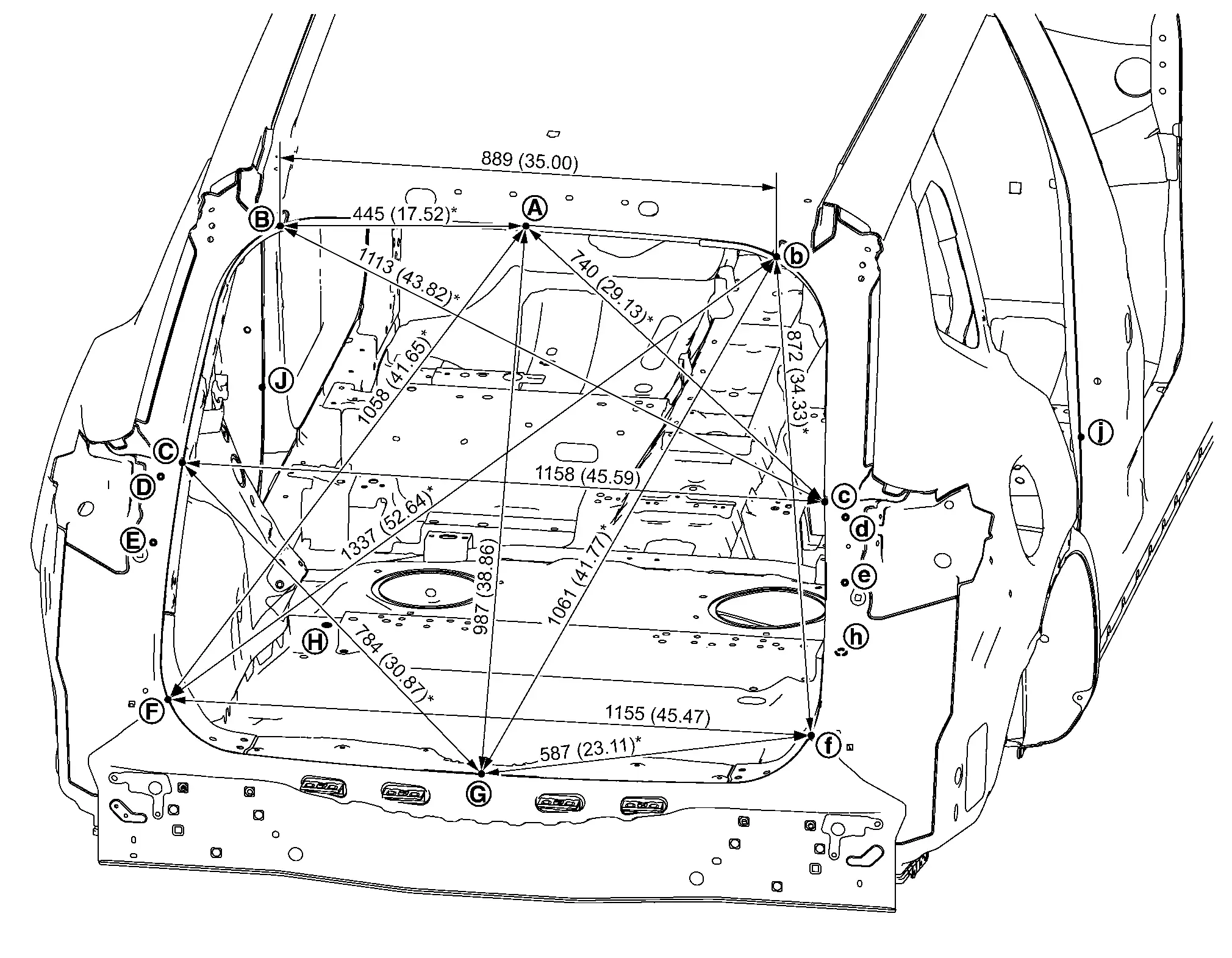

MEASUREMENT

Dimensions marked with ″″ indicate symmetrically identical dimensions on both the right and left hand of the Nissan Ariya vehicle.

Unit: mm (in)

«The others»
Point	Dimension	Point	Dimension	Point	Dimension
–	789 (31.06)	–	1234 (48.58)	–	732 (28.82)
–	868 (34.17)	–	1059 (41.69)	–	1044 (41.10)
–	1270 (50.00)	–	1487 (58.54)	–	1475 (58.07)
–	1856 (73.07)	–	1783 (70.20)	–	1882 (74.09)
–	1160 (45.67)	–	2211 (87.05)	–	2291 (90.20)
–	1477 (58.15)	–	1236 (48.66)	–	1195 (47.05)
–	1719 (67.68)	–	793 (31.22)	–	2083 (82.01)
–	2065 (81.30)	–	1248 (49.13)	—	—

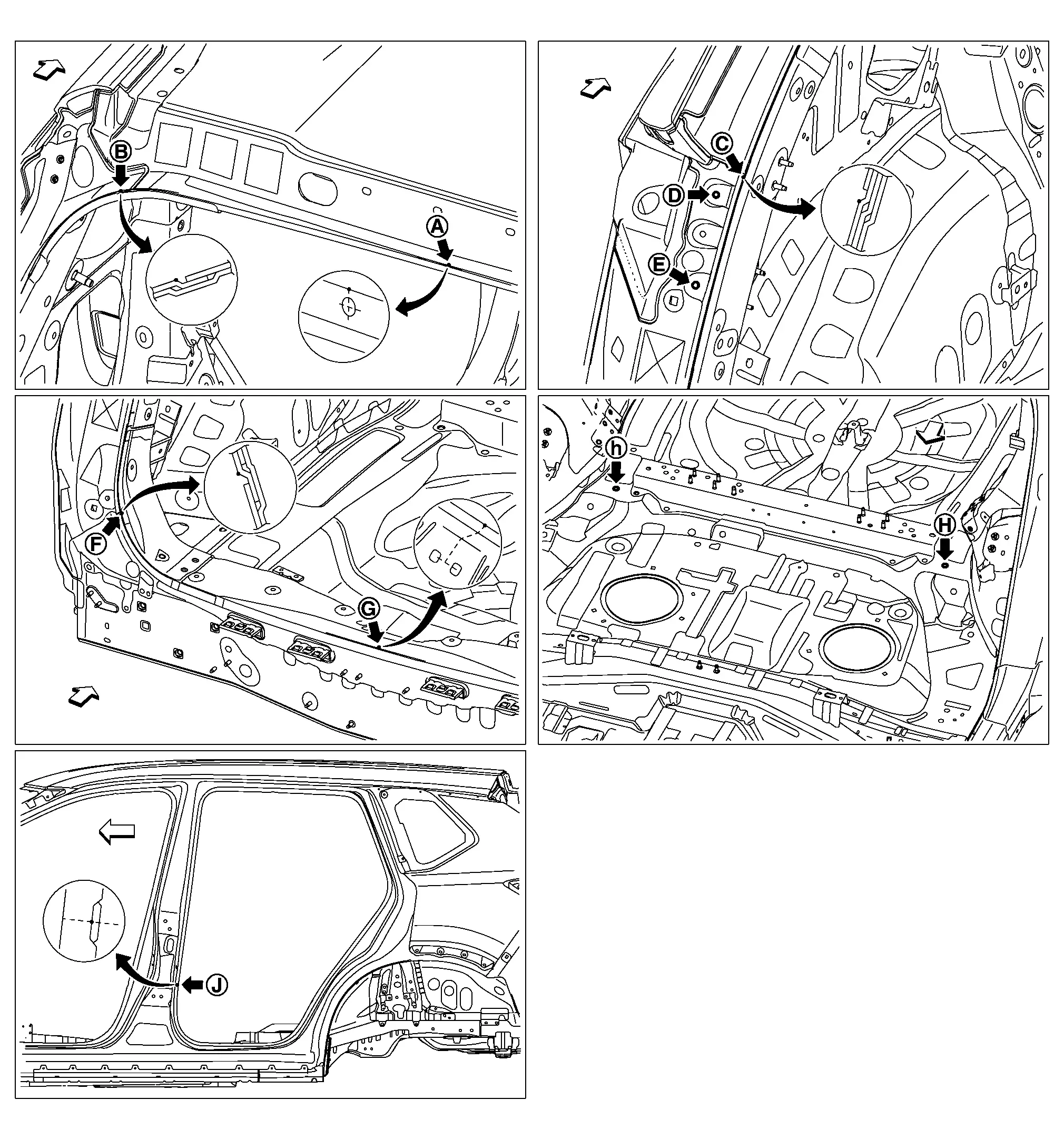

MEASUREMENT POINTS

: Nissan Ariya Vehicle front

Unit: mm (in)

Point	Material	Point	Material
	Roof flange end of center positioning mark		Lower back pillar main hole center φ8 (0.31)
	Center back pillar main joggle		Upper rear panel reinforcement flange end
	Lower back pillar main joggle		Rear floor hole center φ14 (0.55)
	Rear combination lamp installing hole center φ7 (0.28)		Center pillar indent

Location of Plastic Parts

Precautions for Plastics

Abbreviation	Material name	Heat resisting temperature °C (°F)	Resistance to gasoline and solvents	Other cautions
PE	Polyethylene	60 (140)	Gasoline and most solvents are harmless if applied for a very short time (wipe out quickly).	Flammable
ABS	Acrylonitrile Butadiene Styrene	80 (176)	Avoid gasoline and solvents.	—
AES	Acrylonitrile Ethylene Styrene	80 (176)	↑	—
EPM/EPDM	Ethylene Propylene (Diene) copolymer	80 (176)	Gasoline and most solvents are harmless if applied for a very short time (wipe out quickly).	Flammable
PS	Polystyrene	80 (176)	Avoid solvents.	Flammable
PVC	Poly Vinyl Chloride	80 (176)	Gasoline and most solvents are harmless if applied for a very short time (wipe out quickly).	Poisonous gas is emitted when burned.
TPO	Thermoplastic Olefine	80 (176)	↑	Flammable
AAS	Acrylonitrile Acrylic Styrene	85 (185)	Avoid gasoline and solvents.	—
PMMA	Poly Methyl Methacrylate	85 (185)	↑	—
EVAC	Ethylene Vinyl Acetate	90 (194)	↑	—
PP	Polypropylene	90 (194)	Gasoline and most solvents are harmless if applied for a very short time (wipe out quickly).	Flammable, avoid battery acid.
PUR	Polyurethane	90 (194)	Avoid gasoline and solvents.	—
UP	Unsaturated Polyester	90 (194)	↑	Flammable
ASA	Acrylonitrile Styrene Acrylate	100 (212)	↑	Flammable
PPE	Poly Phenylene Ether	110 (230)	↑	—
TPU	Thermoplastic Urethane	110 (230)	↑	—
PBT+ PC	Poly Butylene Terephthalate + Polycarbonate	120 (248)	↑	Flammable
PC	Polycarbonate	120 (248)	↑	—
POM	Poly Oxymethylene	120 (248)	↑	Avoid battery acid.
PA	Polyamide	140 (284)	↑	Avoid immersing in water.
PBT	Poly Butylene Terephthalate	140 (284)	↑	—
PAR	Polyarylate	180 (356)	↑	—
PET	Polyethylene terephthalate	180 (356)	↑	—
PEI	Polyetherimide	200 (392)	↑	—

CAUTION:

When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.

Plastic parts should be repaired and painted using methods suiting the materials^, characteristics.

Location of Plastic Parts

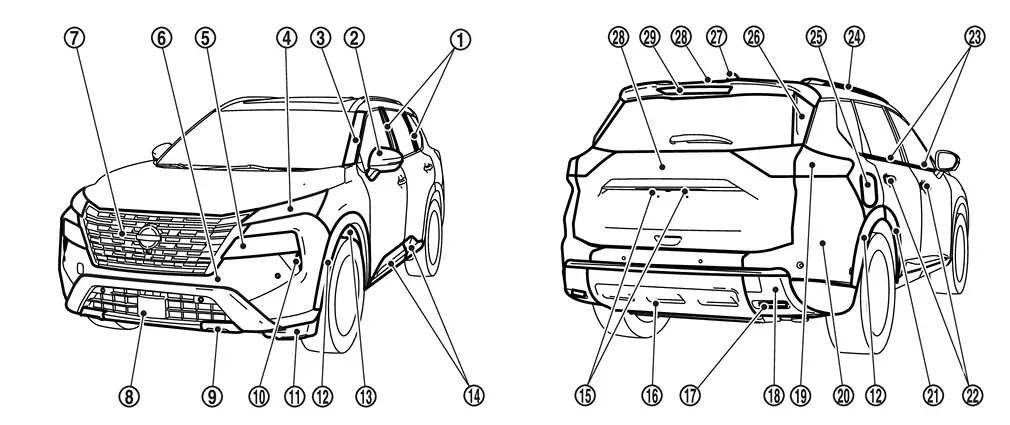

EXTERIOR

Component				Material	Component				Material
1.	Front door sash cover rear		Gloss black	PMMA	15.	License plate lamp		Lens	PC
	Front door sash cover rear		Material color	AES	15.	License plate lamp		Housing	PA + Glass fiber
	Rear door sash cover front		Gloss black	PMMA	16.	Rear bumper finisher			PP + EPM
	Rear door sash cover front		Material color	AES	16.	Rear bumper molding (if equipped)			ABS
	Rear door sash cover rear		Gloss black	PMMA	17.	Rear reflex reflector		Lens	PMMA
	Rear door sash cover rear		Material color	AES	17.	Rear reflex reflector		Housing	ABS
2.	Door mirror cover		Body color	ABS	18.	Rear bumper fascia (Lower)			PP + EPM
	Door mirror cover		Material color	ASA	19.	Rear combination lamp	Body side	Lens	PMMA
	Door mirror finisher			ASA				Housing	ASA
	Door mirror base		Body	ASA				Inner panel	PBT
			Frame	PA + Glass fiber				Inner lens	PMMA, PC
			Base	PA + Glass fiber			Back door side	Lens	PMMA
			Cover base upper	ASA				Housing	ASA
			Cover base lower	ASA				Inner panel	PC
3.	Front pillar finisher		Gloss black	PMMA + ABS				Inner lens	PMMA, PC
3.	Front pillar finisher		Material color	AES	20.	Rear bumper fascia (RH & LH)			PP + EPM
4.	Front combination lamp		Lens	PMMA	21.	Rear fillet molding front			PP + EPM
			Housing	PP	22.	Front and rear door outside handle escutcheon			PC + PET
			Inner panel	PC		Front and rear door outside handle bracket			PA + Glass fiber
			Inner lens	PMMA, PC		Front and rear door outside handle grip		Grip body	PC + PET
			Base	PC		Front and rear door outside handle grip		Grip cover	PC + AES + Glass fiber
5.	Headlamp		Lens	PC		Front gasket			PP
			Housing	PP		Rear gasket			TPO
			Inner panel	PC	23.	Front door outside molding and Rear door outside molding		Molding	TPO + PP + Stainless
6.	Front bumper fascia			PP + EPM	23.	Front door outside molding and Rear door outside molding		End cap	PBT
	Front bumper grille			PP + EPM	24.	With roof rail models	Roof rail		PC + PET
	License plate bracket			PP		With roof rail models	Roof rail cover front and rear		PC + PET
7.	Front grille cover			PP + EPM		Without roof rail models	Roof side molding	Molding	PVC + Stainless
	Front grille		Grille	ASA				End cap	PC + ASA
	Front grille		Molding	ABS				Hinge cover	PC + ASA
	Front emblem			PC, AES	25.	Fuel filler base assembly		Base	PP + Glass fiber + EPDM
8.	Front bumper molding (if equipped)			ABS		Fuel filler base assembly		Hinge	PP + Glass fiber
8.	Front bumper molding lower			PP + EPM		Fuel filler lid			PPE + PA
9.	Front bumper lower finisher	PP + EPM				Fuel filler base mask			PP + Glass fiber + EPDM
					26.	Back door panel			PP
					27.	Roof antenna			PC + ABS
						Back door panel		Outer	PP
						Back door panel		Inner	PP + Glass fiber
10.	Front bumper finisher			PP + EPM		Emblem			ABS
11.	Front spoiler			PP + EPDM	29.	High-mounted stop lamp		Lens	PMMA
12.	Front fillet molding			PP + EPM	29.	High-mounted stop lamp		Housing	ABS
12.	Rear fillet molding rear			Fog lamp finisher	—	—			—
13.	Front fender protector			PP
14.	Front side guard molding		Main body	PP + EPM
	Front side guard molding		Molding	ABS
	Rear side guard molding		Main body	PP + EPM
	Rear side guard molding		Molding	ABS

INTERIOR

Component				Material	Component				Material
1.	Luggage room lamp housing		Base	PP	8.	Instrument lower panel			PP
	Luggage room lamp housing		Knob	PP		Instrument lower cover			PP
	Luggage room lamp lens			PC		Glove box			PP + EPM
2.	Luggage side upper finisher			PP		Instrument pad B			PC + ABS
	Luggage side lower finisher	Luggage side front finisher		PP		Switch panel			PP
		Luggage side lower base	Base	PET + PE + PP		Instrument lower panel center			PP + EPM
		Luggage side lower base	Skin	PET		Cluster lid A			PP
		Trunk side finisher		PP		Steering column cover upper		Upper	PP
3.	Personal lamp assembly		Lens	PC		Steering column cover lower		Lower	PP
			Housing	PA + Glass fiber	9.	Console finisher assembly		AT console finisher	ABS
			Knob	PC				Tray	PP
			Cover	PC + ABS				Cup holder	PP
4.	Room lamp housing		Housing	PP		Instrument side panel			PP
	Room lamp housing		Button	PC		Cluster lid finisher	Hard type		PP
	Room lamp lens			PC			Soft type	Panel	ABS
5.	Center pillar upper garnish			PP			Soft type	Skin	PVC
5.	Center pillar lower garnish			PP		Center console assembly		Main body	PP + Glass fiber
6.	Map lamp assembly		Console	PC + ABS				Body console	PP
	Map lamp assembly		Sunglass bin	PC + ABS				Under tray	PP
	Map lamp housing		Housing	PP				Upper finisher pocket	PP
	Map lamp housing		Button	PC		Console rear finisher			PP
	Map lamp lens			PC		Console upper finisher			ABS
	Map lamp finisher			PC + ABS		Console lid assembly		Lid skin	PVC
7.	Front pillar garnish			PP				Lid cushion	PUR
7.	Dash side finisher			PP				Outer lid	PP + Glass fiber
8.	Instrument garnish			PP				Inner lid	PP + Glass fiber
	Instrument panel assembly		Core	PP + EPM				Base	PP + Glass fiber
			Pad	PUR				Finisher	PP
			Skin	TPO				Knob finisher	PP
	Instrument mask			PP				Knob	POM
	Instrument pad A			PC + ABS	—	—			—

 Replacement Operations

Precautions for Body Repair WARNING: The repair information in this section is intended for trained body repair technicians who have attained a high level of skill and experienc...

 Driver Controls. Mirrors

Other materials:

P0106 Manifold Absolute Pressure Sensor
DTC Description DTC DETECTION LOGIC DTC CONSULT screen terms (Trouble diagnosis content) DTC detection condition P0106 00 ABSL PRES SEN/CIRC (Manifold Absolute Pressure/Barometric Pressure Sensor Circuit Range/Performance) Diagnosis condition — Signal (terminal) ...

U2648-87 Can Comm Circuit
DTC Description CAN COMMUNICATIONCAN (Controller Area Network) is a serial communication line for real time applications. It is an on-Nissan Ariya vehicle multiplex communication line with high data communication speed and excellent error detection ability. Modern Nissan Ariya vehicle is eq ...

Mac Key Writing
Description When replacing around view monitor control unit, it is necessary to write MAC key to around view monitor control unit. Write MAC key to around view monitor control unit according to "MAC Key writing" procedure of "CONSULT Operation Manual". Refer to Work Procedure.CAUTION: During ...
