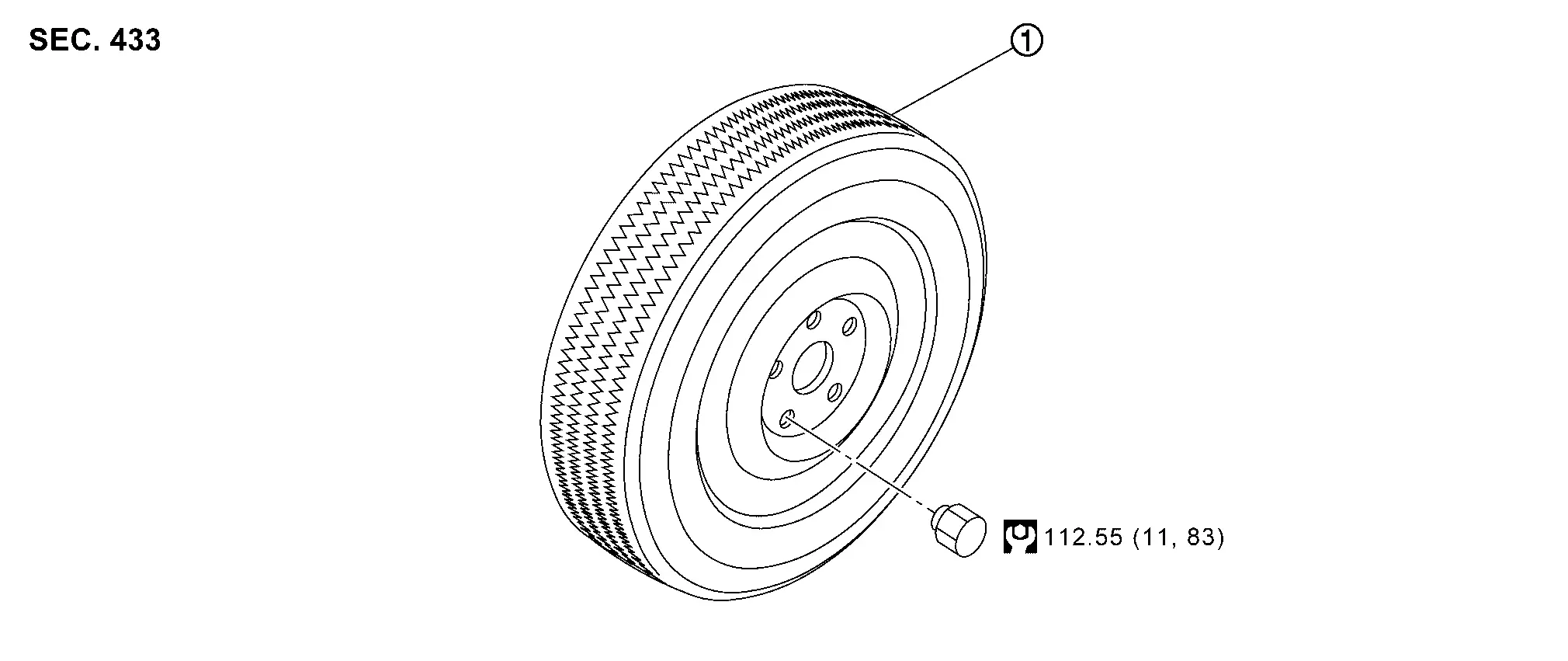

Exploded View

Tire assembly
: N·m (kg-m, ft-lb)

Removal & Installation

REMOVAL

Remove wheel nuts.

Remove tire assembly.

INSTALLATION

Note the following, install in the reverse order of removal.

  • When replacing or rotating wheels, perform following;

    • Perform the ID registration. Refer to Work Procedure.

Inspection

ALUMINUM WHEEL

Check tires for wear and improper inflation.

Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel runout.

Remove tire from wheel and mount wheel on a tire balancer machine.

CAUTION:

DO NOT use center hole cone-type clamping machines to hold the wheel during tire removal/installation or balancing. Damage to the wheel finish, cladding or chrome may occur. Use only rim-type or universal lug-type clamping machines to hold the wheel.

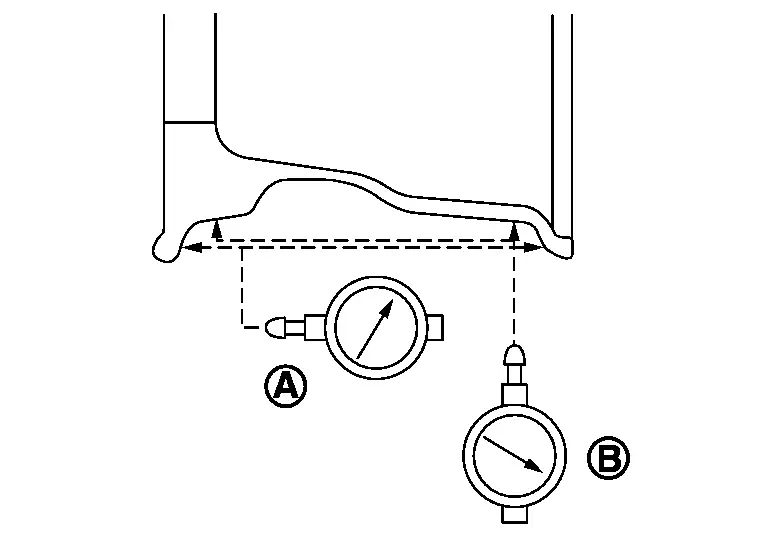

Set dial indicator as shown. Check runout, if lateral runout or radial runout exceeds the limit, install a new wheel.

Lateral Deflection Refer to Road Wheel.
Vertical Deflection Refer to Road Wheel.

STEEL WHEEL

Check tires for wear and improper inflation.

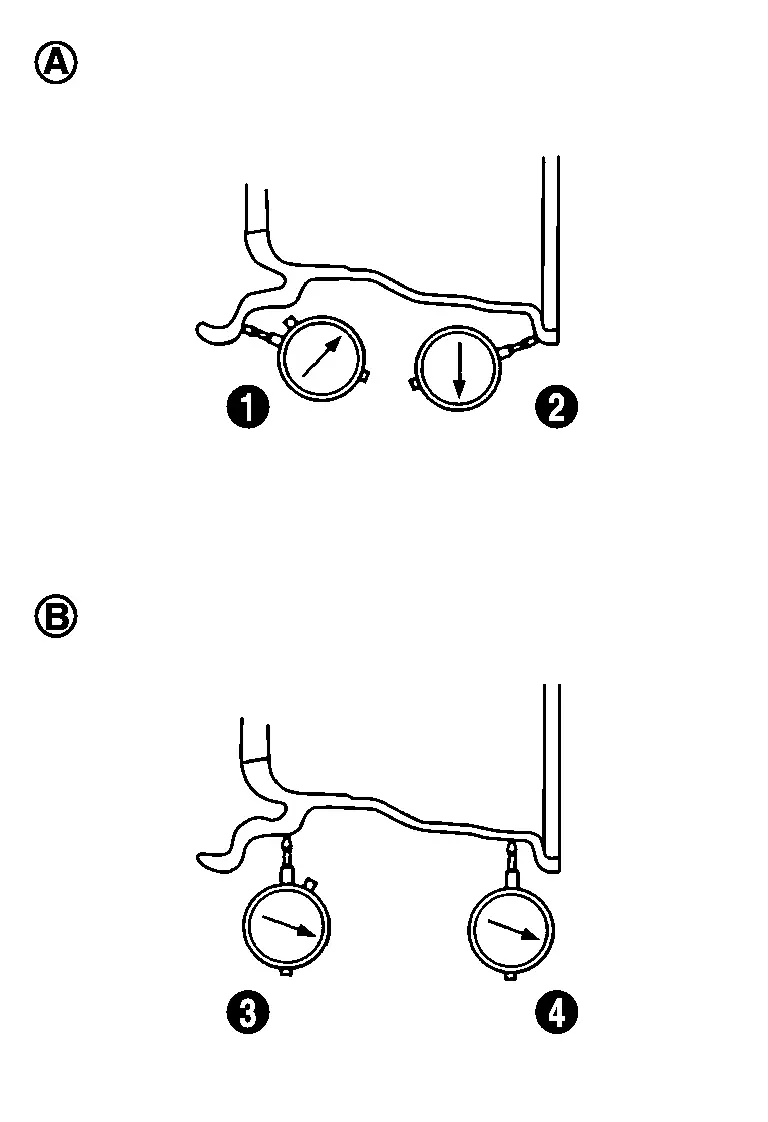

Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel runout.Remove tire from steel wheel and mount wheel on a tire balance machine. Set two dial indicators as shown in the illustration.

Set each dial indicator to “0”. Rotate wheel and check dial indicators at several points around the circumference of the wheel. Calculate runout at each point as shown below.

Axial runout : (+)/2
Radial runout : (+)/2

Select maximum positive runout value and the maximum negative value. Add the two values to determine total runout.

CAUTION:

In case a positive or negative value is not available, use the maximum value (negative or positive) for total runout.

Limit
Axial runout Refer to Road Wheel.
Radial runout Refer to Road Wheel.

If the total runout value exceeds limit, replace steel wheel.
