Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Rear Seat Heater Switch
Removal and Installation
REMOVAL
Remove console rear finisher. Refer to Removal and Installation.

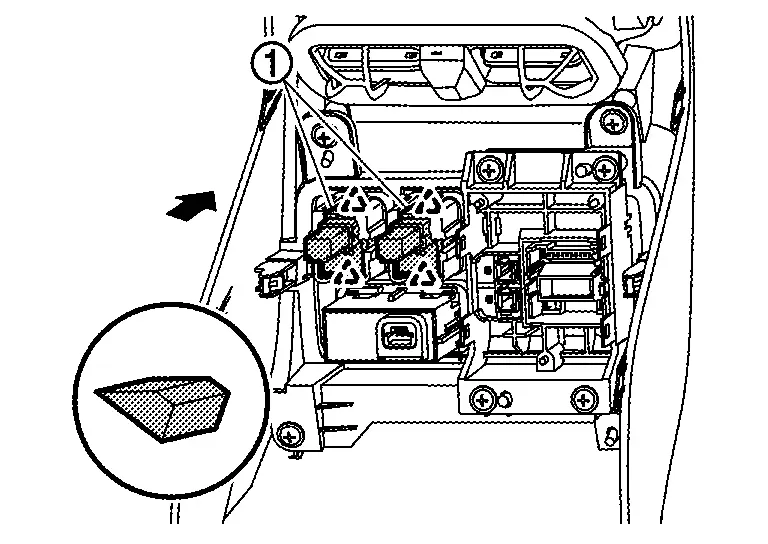

Disengage the fixing pawls and then remove rear seat heater switch
.
 |
: Pawl |
INSTALLATION
Installation is in the reverse order of removal.
