Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Rain Sensor

Removal and Installation

REMOVAL

Remove front camera cover. Refer to Exploded View Without ProPILOT Assist 2.1 or Exploded View With ProPILOT Assist 2.1.

Disconnect harness connector from rain sensor.

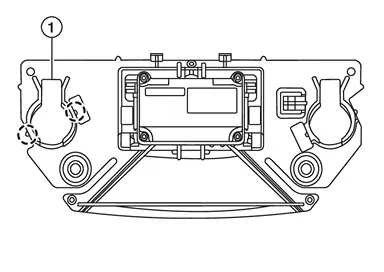

Release pawls and remove rain sensor (1).

INSTALLATION

Installation is in the reverse order of removal.

    Removal and Installation. Wiper and Washer Switch
    Removal and Installation Wiper and washer switch is integrated in the combination switch. Refer to Removal and Installation.
    Service Data and Specifications (sds)
    Specifications Windshield washer fluid capacity Except for Canada 2.4 (2 1/2 US qt, 2 1/8 Imp qt) For Canada 5.0 (5 1/2 US qt, 4 3/8 Imp qt) Windshield washer fluid specificatio...
