Nissan Rogue (T33) 2021-Present Service Manual: Ecu Diagnosis Information :: Front Power Window Motor (driver Side)

Nissan Rogue (T33) 2021-Present Service Manual / Body Exterior, Doors, Roof & Vehicle Security :: Power Window Control System / Ecu Diagnosis Information :: Front Power Window Motor (driver Side)

Reference Value

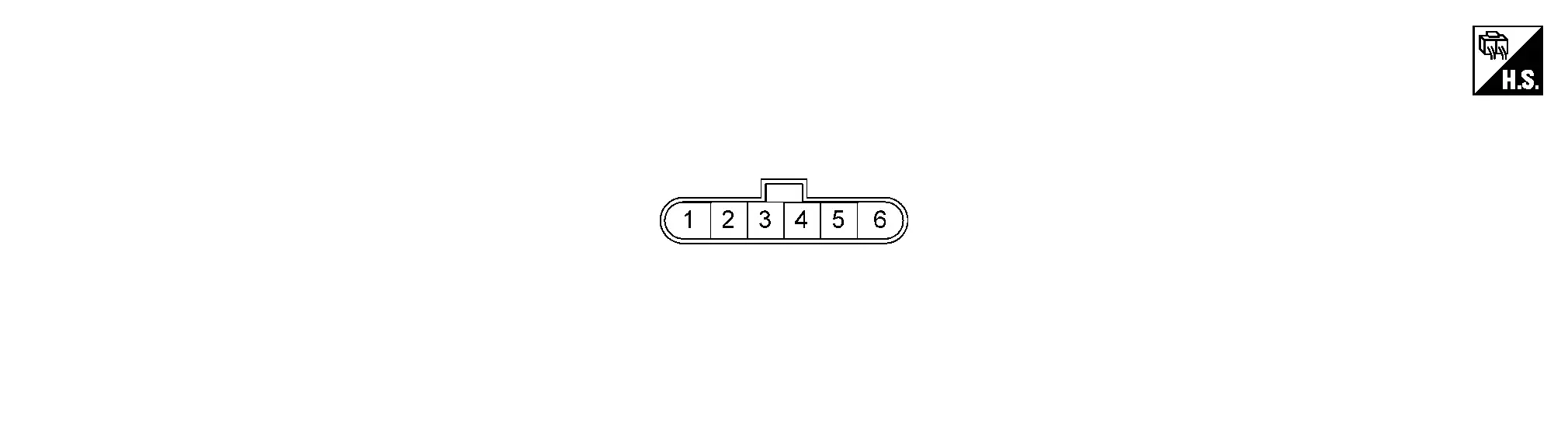

TERMINAL LAYOUT

PHYSICAL VALUES

Terminal No.

(Wire color) 		Description Condition

Value

(Approx.)
(+) (–) Signal name Input/Output

1

(Y) 		Ground Front power window motor (driver side) DOWN signal (for submersion) Input Ignition switch OFF (auto ACC status) or ON Battery voltage
Ignition switch OFF (not auto ACC status) 0 V

3

(B) 		Ground Ground — — 0 V

4

(W) 		Ground Auto ACC power supply Input Ignition switch OFF (auto ACC status) or ON Battery voltage
Ignition switch OFF (not auto ACC status) 0 V

6

(L) 		Ground LIN communication signal Input/Output Ignition switch ON

Fail-safe

FAIL-SAFE CONTROL BY POWER WINDOW MOTOR

Power window motor switches power window operation to fail-safe control when malfunction is detected.

Detected item Judgment condition Fail-safe operation Recovery condition
Non-Initialized condition When the motor integrated CPU detect door glass position non-initialized condition. Auto UP operation (Anti-pinch) is forbidden. Initialization completed.
Thermal protection When the motor integrated CPU first detects thermal protection. DOWN operation is forbidden.

When the window motor operation has switched to fail-safe control, put the Nissan Ariya vehicle in the "IGN ON" condition.

For the window motor to reach the counted value of "0", it is necessary to let the window motor rest for approximately 70 minutes with the Nissan Ariya vehicle electrical system energized with "IGN ON".
When the motor integrated CPU detects thermal protection again when UP operated from the above state. Operation is forbidden (UP and DOWN is forbidden).
Consecutive reverse operation malfunction When the motor integrated CPU has detected consecutively 3 times the reverse operation. Auto UP operation (Anti-pinch) is forbidden. Approximately 10 seconds passed or the motor integrated CPU detect door glass fully close position.

FAIL-SAFE CONTROL BY DTC

Power window motor performs fail-safe control when any DTC are detected.

DTCFail-safe
B2C41–04 Front power window motor (driver side) operation is stop or inching.
