Component Parts

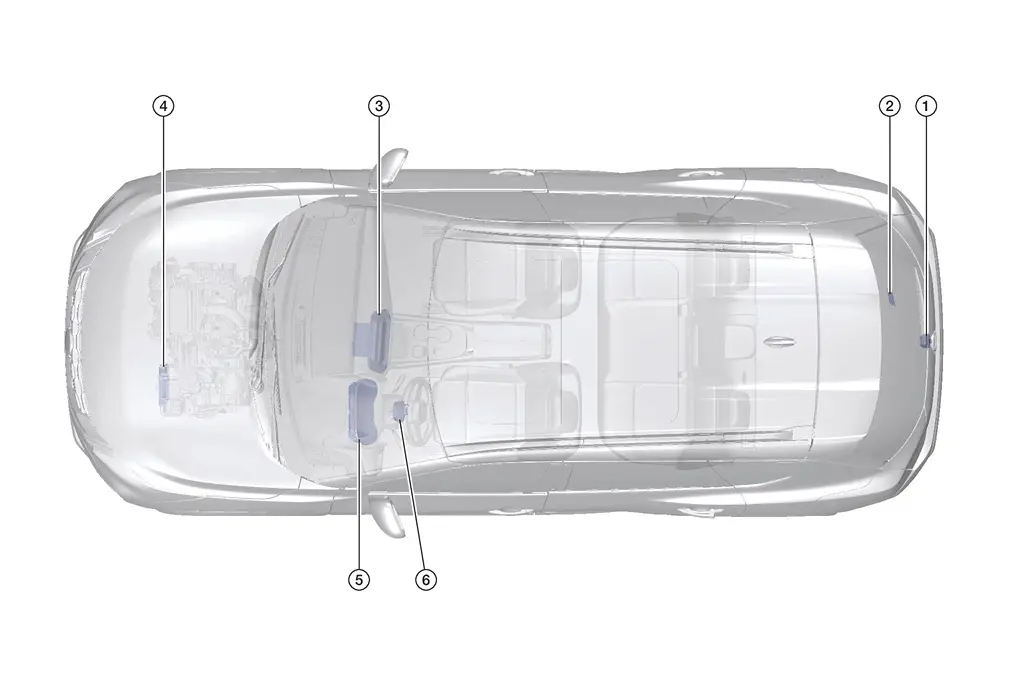

Component Parts Location

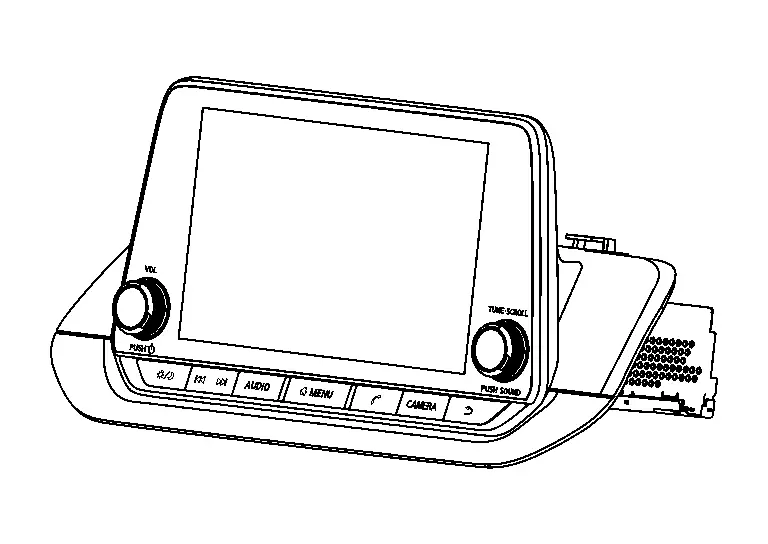

AV Control Unit

• AV control unit is located in the center of the instrument panel assembly.



• An 8" display, AM/FM electronic tuner radio, audio amplifier and camera controller are integrated into the AV control unit.

• The display is a high resolution monitor that includes touch panel functions.

• Music files stored in a compatible device can be played using one of the separate USB interfaces located in the front auxiliary input jacks.

Rear View Camera

• The rear view camera is installed at the center of the back door finisher.



• Power for the camera is supplied from the AV control unit, and the image at the rear of the Nissan Ariya vehicle is sent to the AV control unit display.

System

Rear View Monitor

System Description

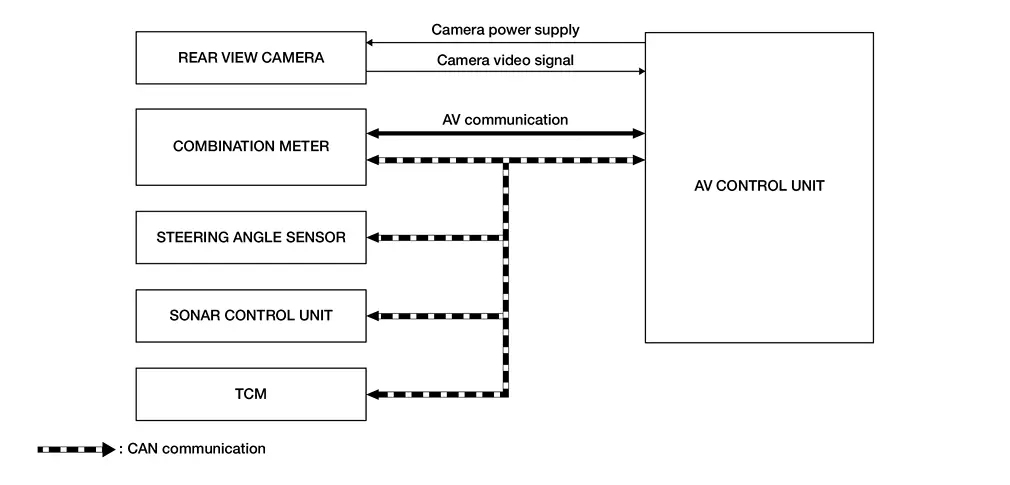

SYSTEM DIAGRAM

AV control unit Input Signal (CAN Communication)

DESCRIPTION

Operation Description

• When the selector lever is shifted to the reverse position, the rear view monitor image is displayed.

• When the selector lever is shifted to any position other than the reverse position, the original image (the image displayed before the rear view monitor image) is displayed.

Camera Image Operation Principle

• The AV control unit receives the reverse signal input and supplies power to the rear view camera.

• The rear view camera inputs the image signal to the AV control unit.

• The AV control unit displays the rear view camera image when the reverse signal is received.

• The AV control unit generates the warning message, Nissan Ariya vehicle width guide lines and the predicted course lines on the image from the rear view camera.

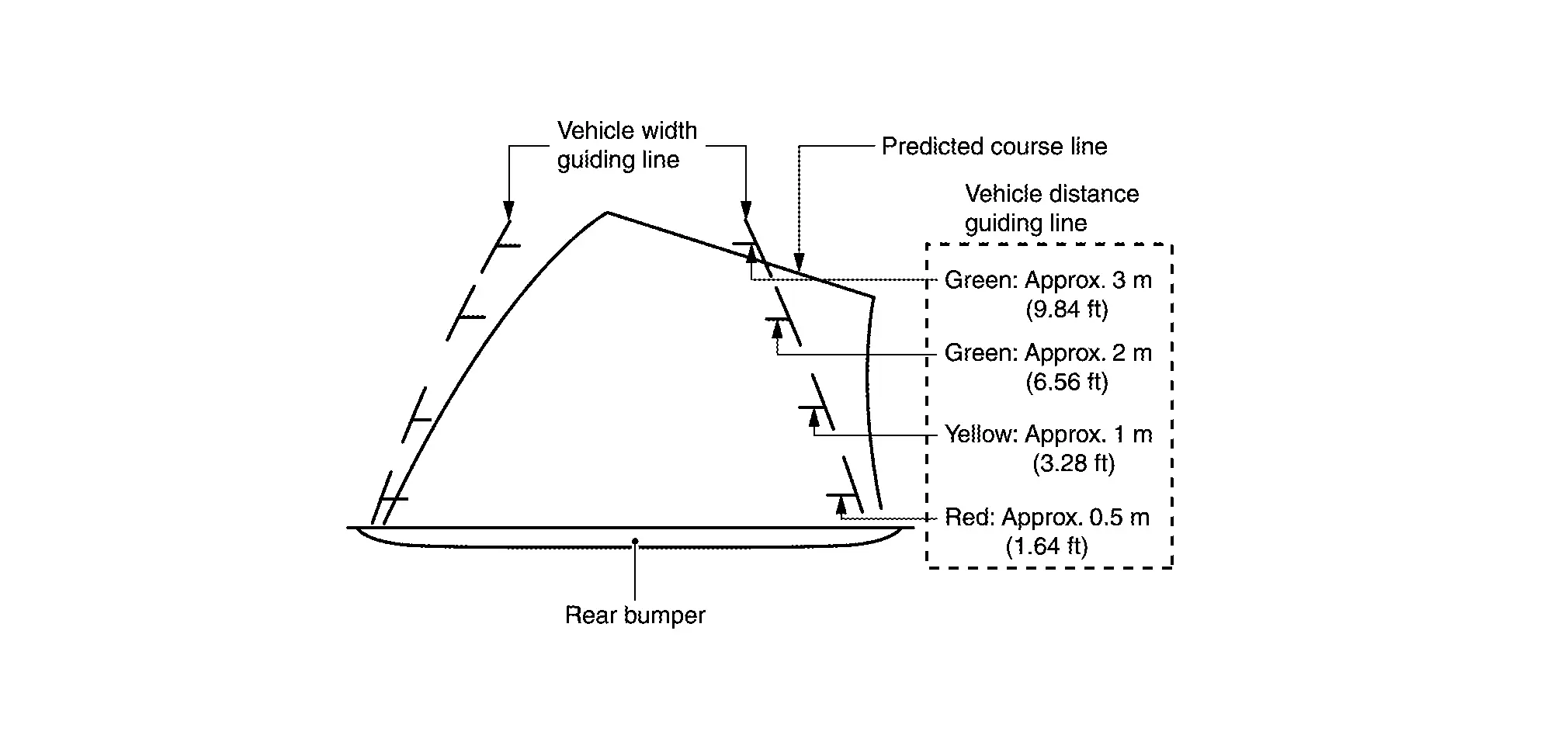

Vehicle Width Guide Lines and Predicted Course Lines Display Function

• The vehicle width guide lines and the predicted course lines that indicate the vehicle route according to the steering angle are displayed to allow the driver to more easily judge distances between the Nissan Ariya vehicle and objects and to help the driver back into a parking space.

• The AV control unit receives the steering signal from the steering sensor via CAN communication and draws a Nissan Ariya vehicle width guide line according to the steering angle.

• Vehicle width guide lines are displayed translucently.

• The predicted course lines are not displayed when the steering is in the neutral position.

Precautions for Vehicle Width Guide Lines and Predicted Course Lines

Vehicle width guide lines and predicted course lines displayed may be different from actual lines depending on Nissan Ariya vehicle conditions and road conditions.

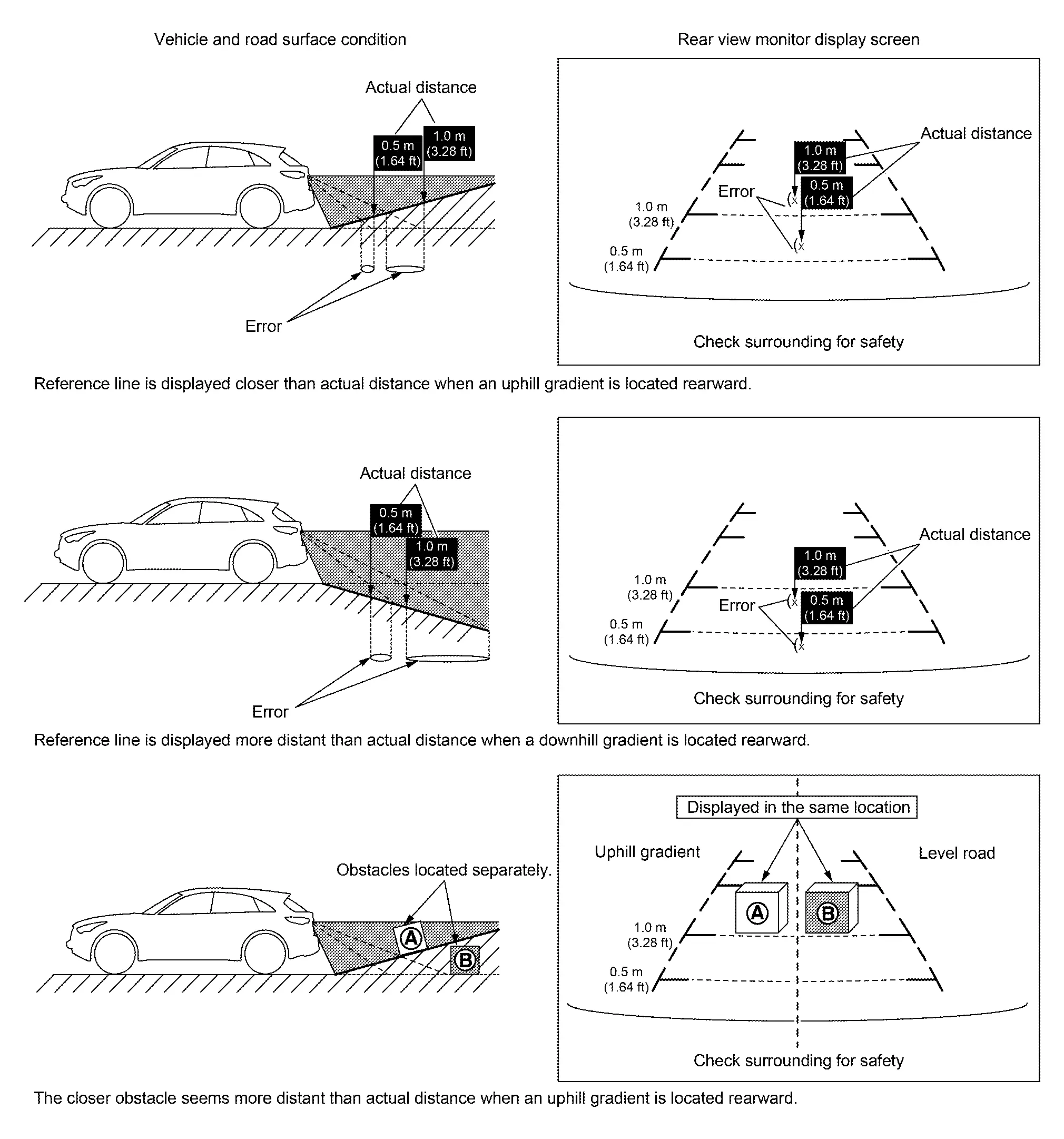

Precautions for road conditions

• Since vehicle width guide lines and predicted course lines are drawn based on the road, a different distance may be displayed if uphill or downhill gradient is present nearby.

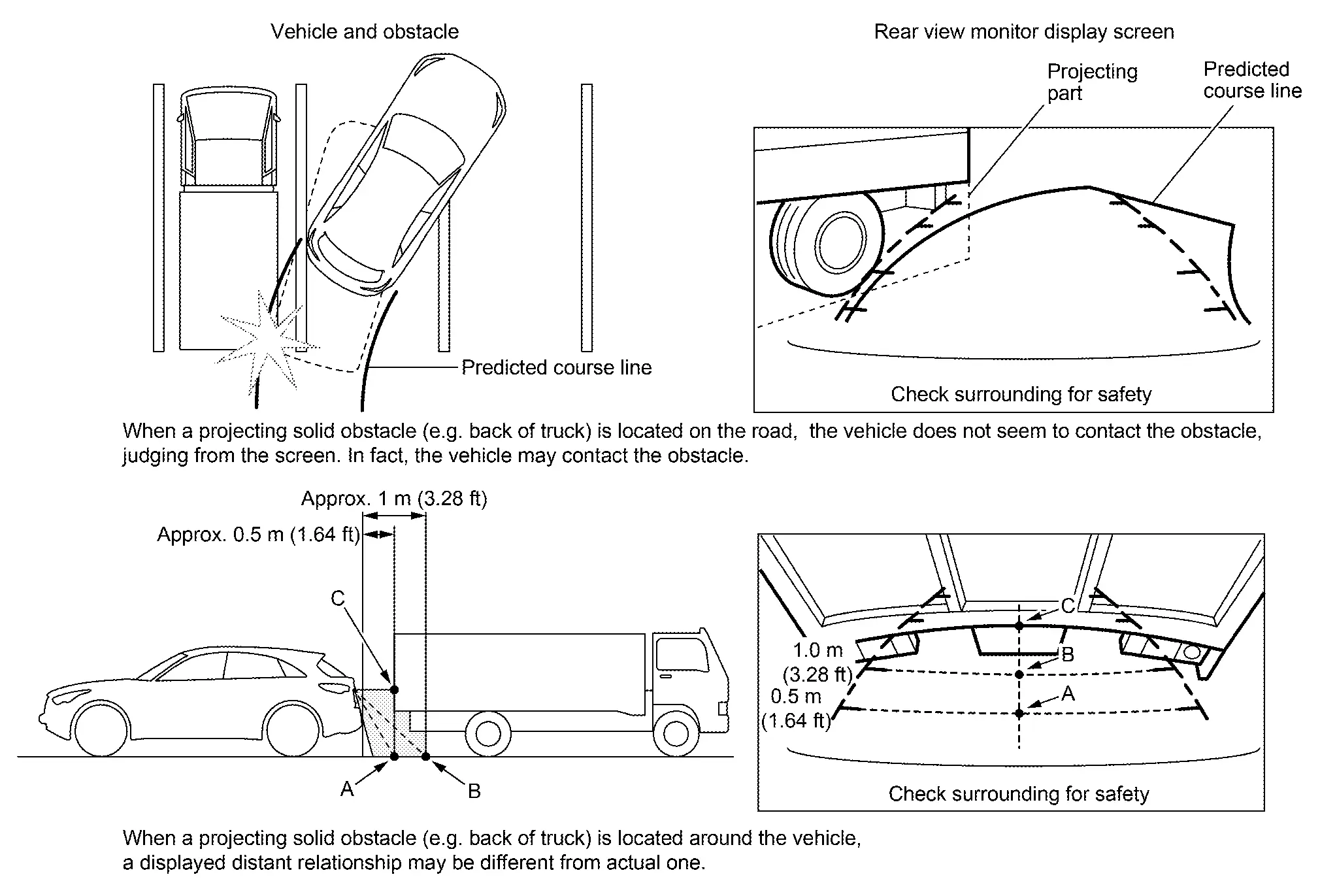

Precautions for block

• Since vehicle width guide lines and predicted course lines are drawn based on the road, a different distance may be displayed if a projecting obstacle is present nearby.
