Nissan Rogue Service Manual: Primary speed sensor

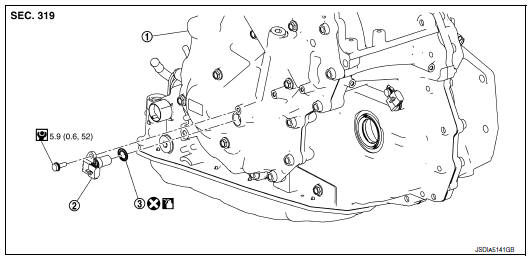

Exploded View

Exploded View

  1. Transaxle assembly
  2. O-ring
  3. Primary speed sensor

: Always replace after every disassembly.
: N·m (kg-m, in-lb)
: Apply CVT fluid

Removal and Installation

REMOVAL

  1.  Remove the engine undercover. Refer to EXT-37, "ENGINE UNDER COVER : Removal and Installation".
  2.  Disconnect the primary speed harness connector.
  3.  Remove the primary speed sensor bolt and remove the primary speed sensor.
  4.  Remove the O-ring from the primary speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to TM-190, "Inspection".

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to TM-192, "Adjustment".
