Basic information
WARNING
In addition, the temperature inside a closed Nissan Rogue on a warm day can quickly rise to dangerous levels and pose a serious risk of injury or death to people and animals.
The power windows operate when the ignition switch is in the ON position, and for a short period after the ignition switch is placed in the OFF position. If the driver’s or front passenger’s door is opened during this time, power window operation is canceled.

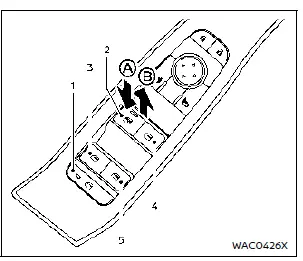

Main power window switch (driver's side)
To open or close a window, push down A or pull up B on the switch and hold it. The main power window switch panel on the Nissan Rogue driver’s door can control all windows in the vehicle.
Locking rear passenger's windows
When the window lock button is pushed (indicator illuminated), the rear passenger windows cannot be operated from the rear door switches. In this state, the rear windows can only be controlled using the driver’s main switch. To restore rear passenger operation, push the window lock button again.

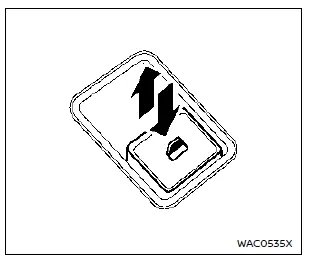

Passenger side power window switch
Each passenger window switch controls its corresponding window. When the driver activates the window lock button, the rear passenger switches are disabled and the rear windows can only be controlled from the driver’s side.

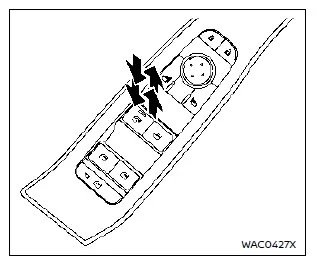

Automatic operation (driver's side)
The automatic function allows the driver’s window of the Nissan Rogue to fully open or close without holding the switch.
To fully open the window, press the power window switch down to the second detent and release it. To fully close the window, pull the switch up to the second detent and release it. The switch does not need to be held during automatic operation.
To stop the window while it is opening or closing automatically, move the switch in the opposite direction (up or down).
Windows
Auto-reverse function (driver's side)Spark plugs
Replacing spark plugs
Platinum-tipped spark plugs
It is not necessary to replace platinum-tipped A
spark plugs as frequently as conventional type
spark plugs because they last much longer. Follow
the maintenance log shown in the “NISSAN
Service and Maintenance Guide”. Do not service
p ...
P0222, P0223 TP sensor
DTC Description
DTC DETECTION LOGIC
DTC No.
CONSULT screen terms
(Trouble diagnosis content)
DTC detecting condition
P0222
TP SEN 1/CIRC-B1
(Throttle/pedal position sensor/switch ″B″
circuit low)
An excessively low voltage from the TP sensor 1 is se ...
Spark plug
Exploded view
Ignition coil
Spark plug
Rocker cover
Removal and installation
REMOVAL
Remove air duct assembly.
Remove ignition coil. Refer to EM-36, "Exploded View".
Remove spark plug using Tool.
Tool number : — (J-48891)
INSPECT ...
