Nissan Rogue (T33) 2021-Present Service Manual: Power Distribution System :: Removal and Installation. Push-Button Ignition Switch
Push-Button Ignition Switch
Removal and Installation
REMOVAL
Remove switch panel. Refer to Removal and Installation.

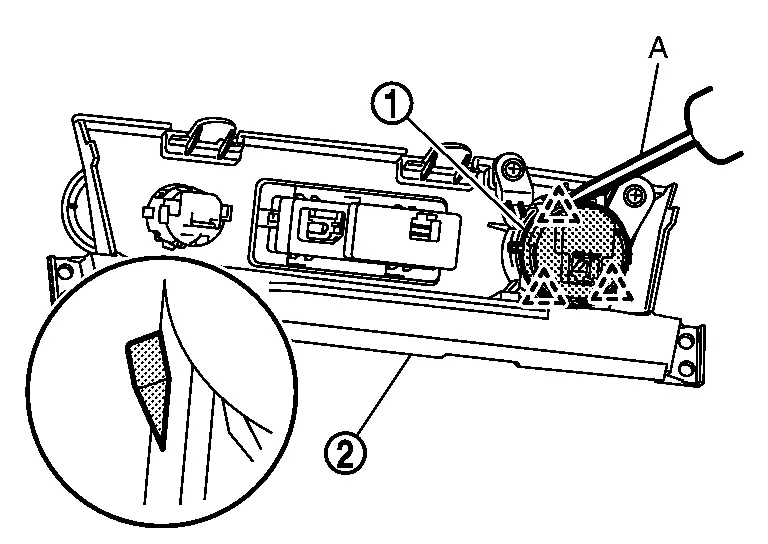

Disengage the fixing pawls using a remover tool (A) and then remove push-button ignition switch
from switch panel
.
 |
: Pawl |
INSTALLATION
Installation is in the reverse order of removal.
