Ipdm E/r

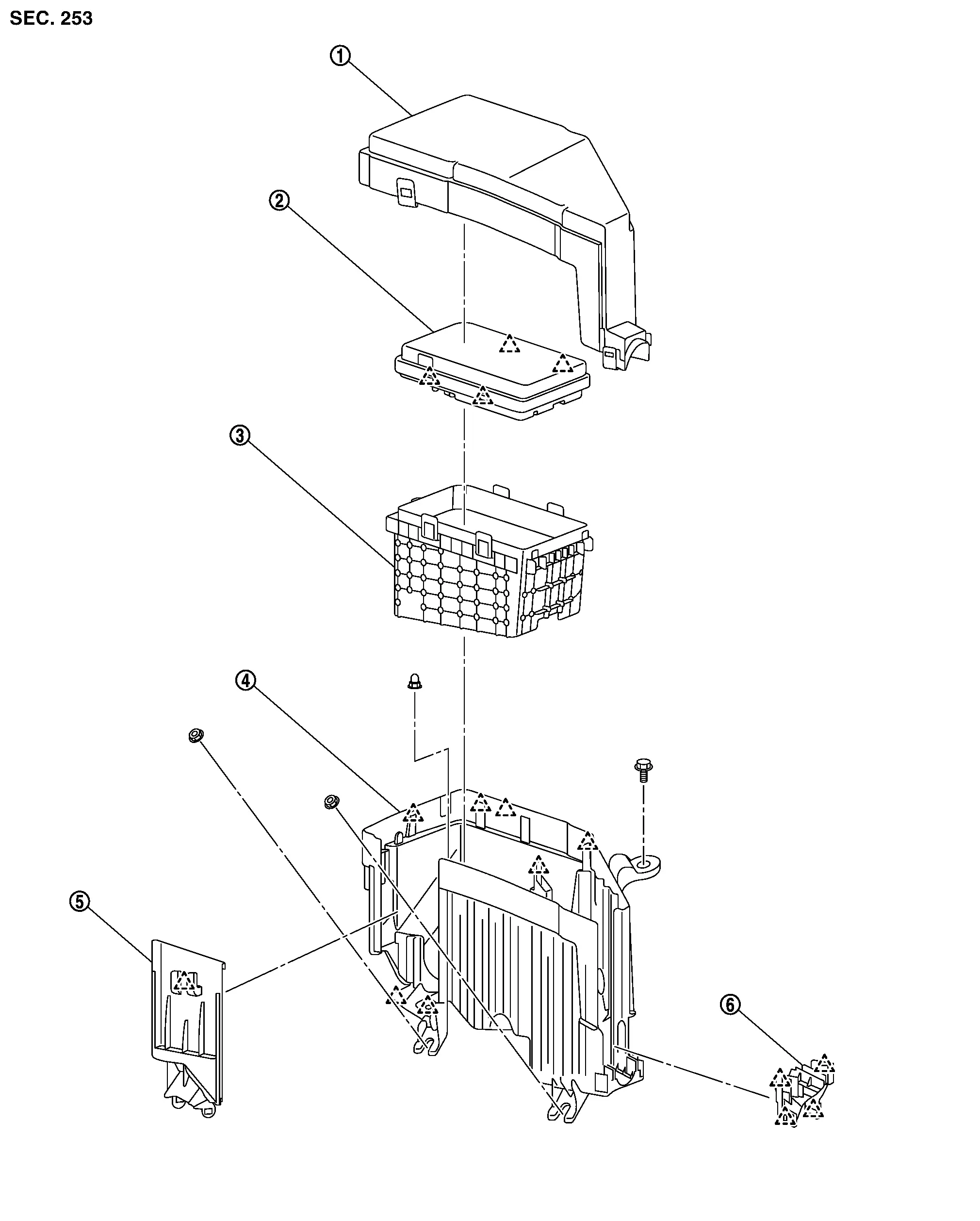

Exploded View

IPDM E/R cover A IPDM E/R IPDM E/R cover B
IPDM E/R cover C IPDM E/R cover D IPDM E/R cover E
: Pawl

Removal and Installation

REMOVAL

Disconnect the battery cable from the negative terminal.

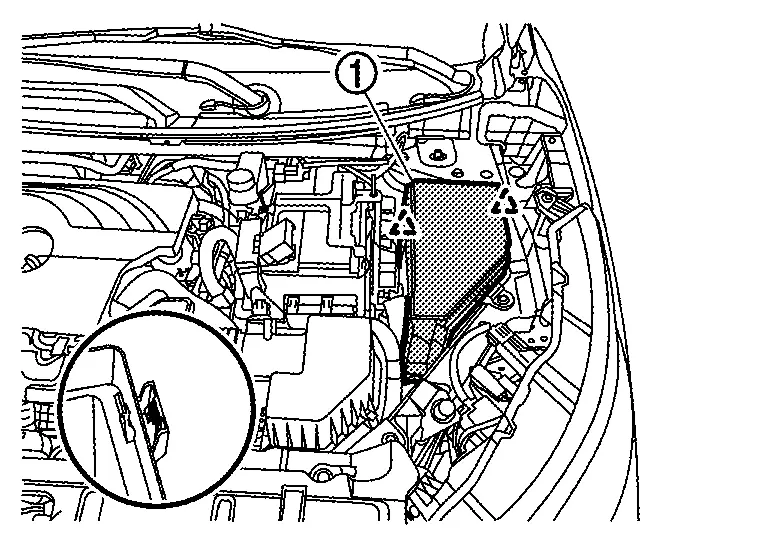

Disengage the fixing pawls and then remove IPDM E/R cover A .

: Pawl

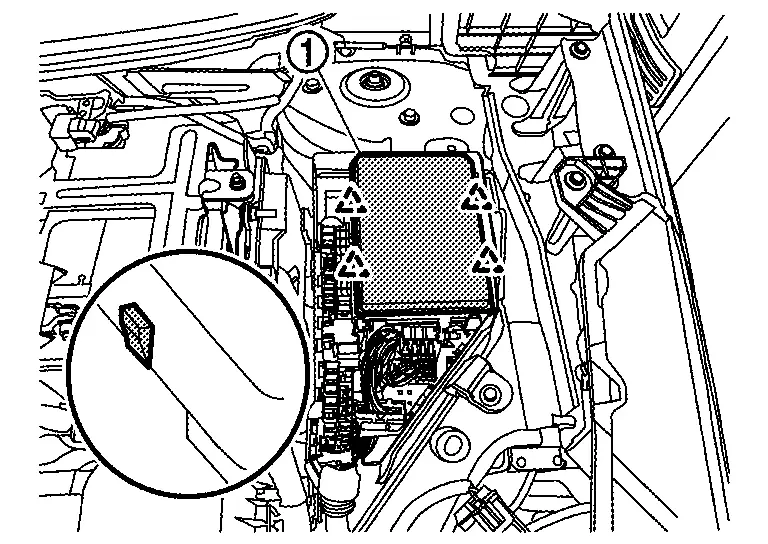

Disengage the fixing pawls and then pull up IPDM E/R .

: Pawl

Disconnect the IPDM E/R harness connector and then remove IPDM E/R from the Nissan Ariya vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL". Refer to Required Procedure After Battery Disconnection.

Perform "ADDITIONAL SERVICE WHEN REPLACING IPDM E/R" when replacing IPDM E/R". Refer to Description.
