Nissan Rogue Service Manual: Interior room lamp control system

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

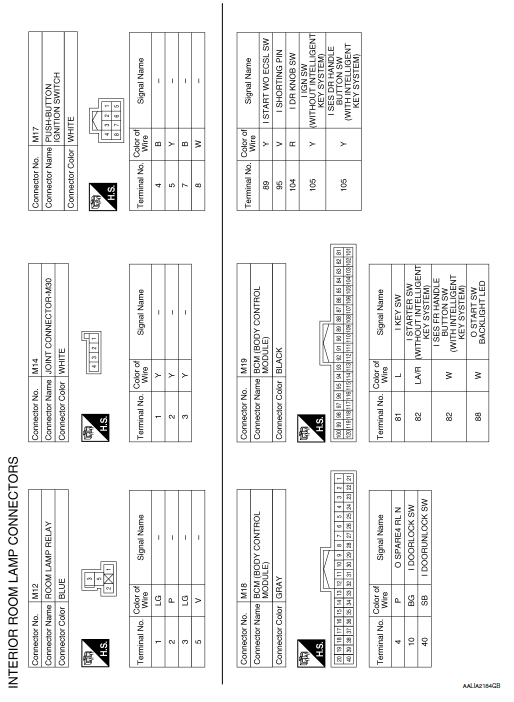

Wiring Diagram

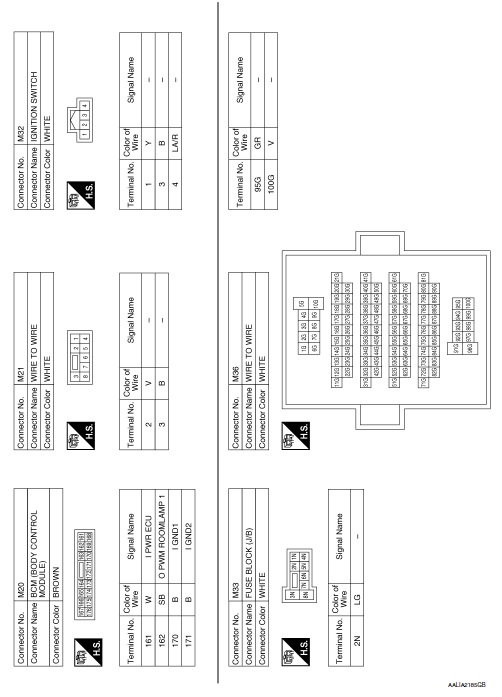

Wiring Diagram

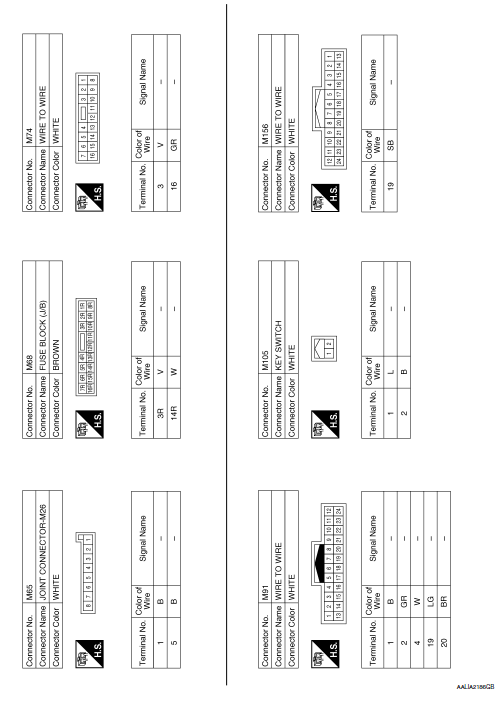

Wiring Diagram

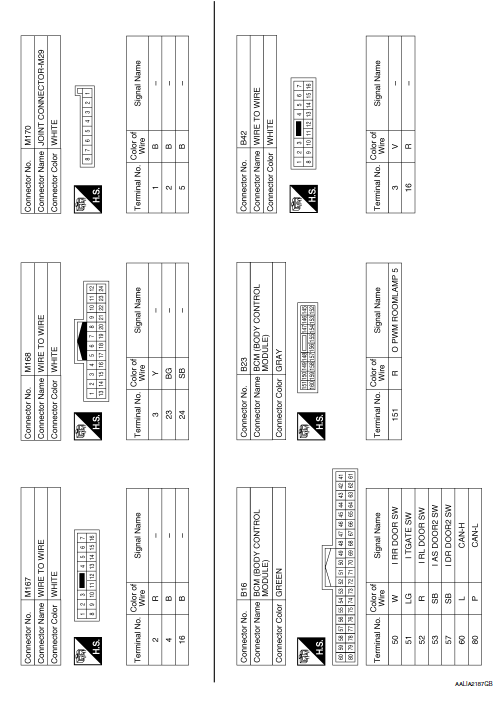

Wiring Diagram

Wiring Diagram

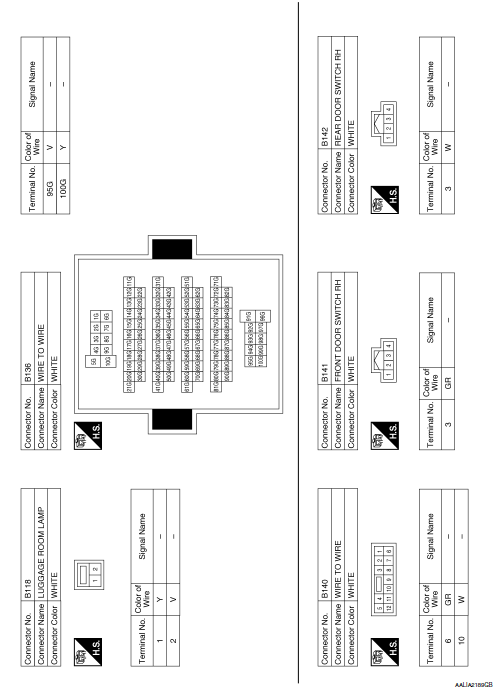

Wiring Diagram

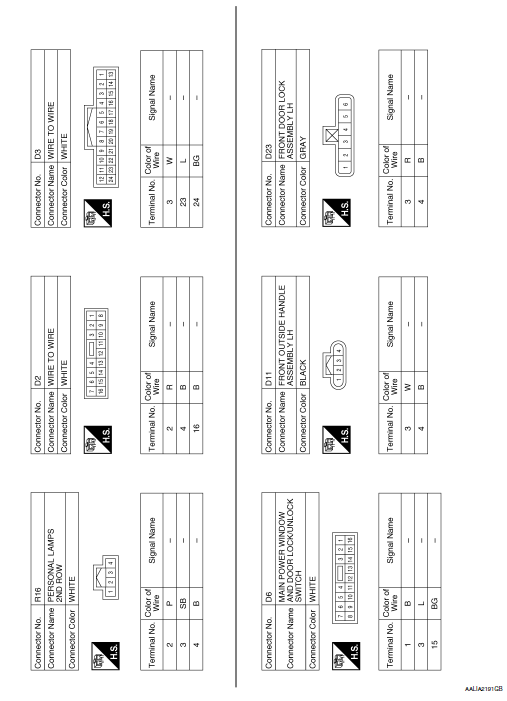

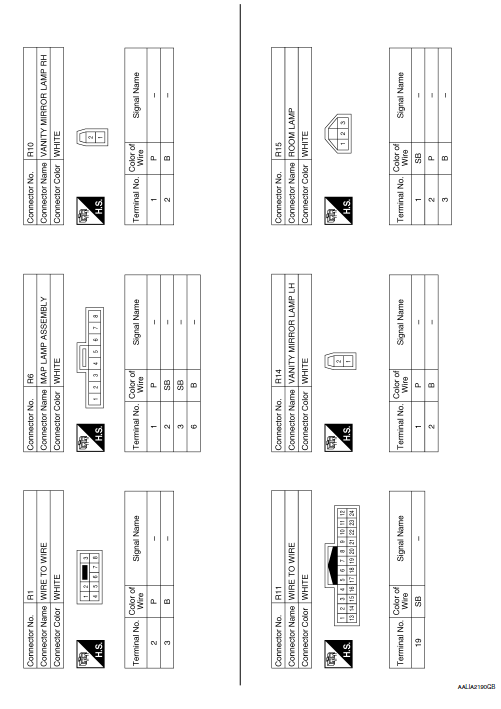

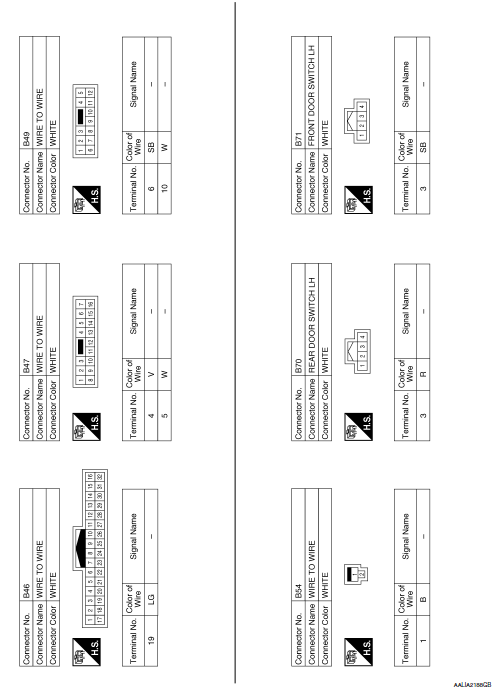

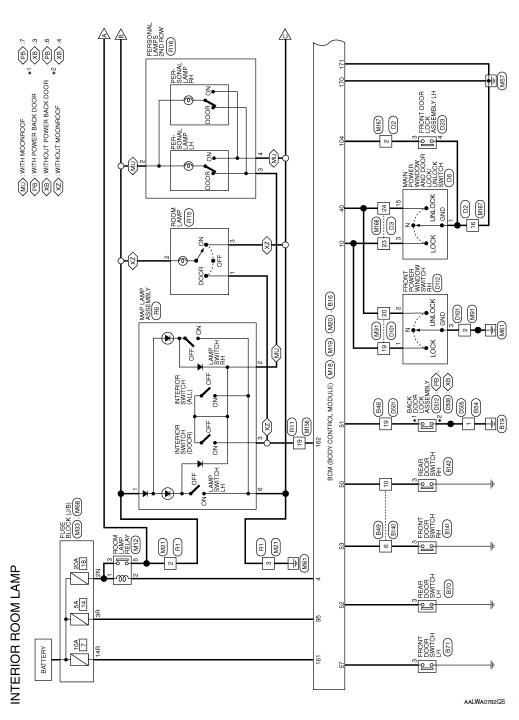

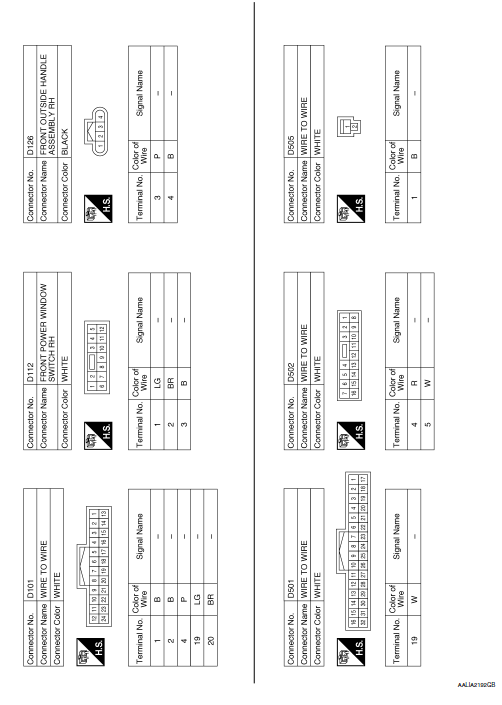

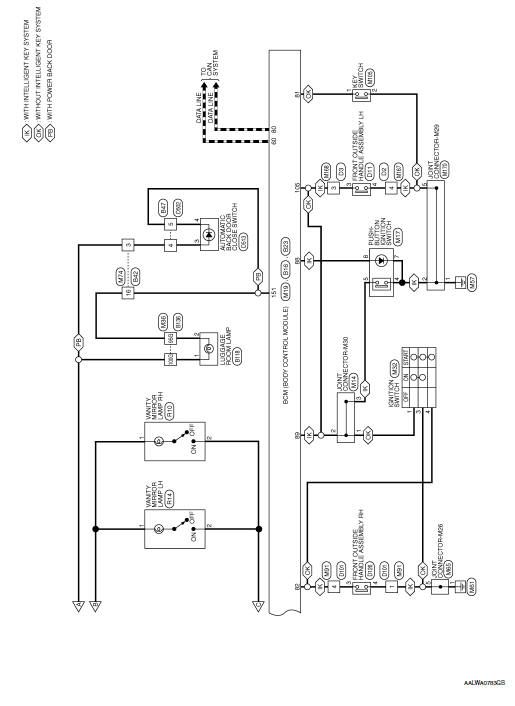

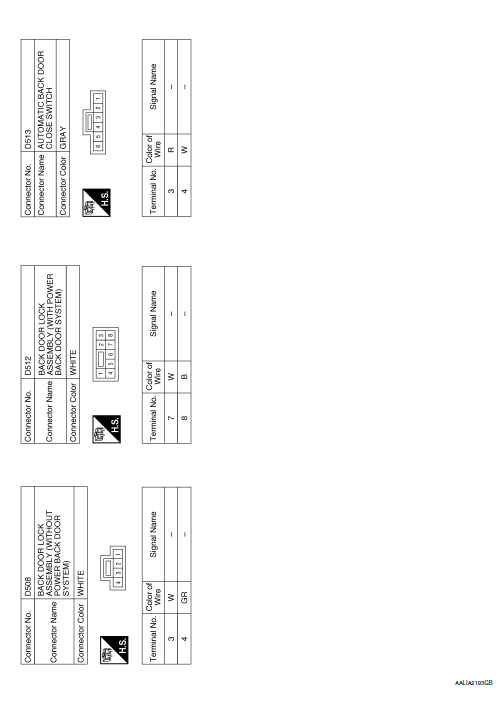

Wiring diagram
...

Illumination
Wiring Diagram ...
