Preparation

Special Service Tools

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name 		Description

-

(NI-53373)

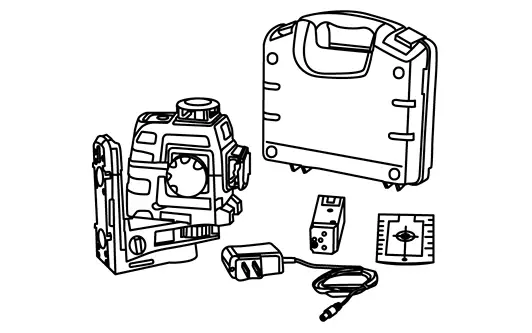

ADAS calibration laser level

Target setup and ADAS calibration

-

(NI-53371)

ADAS calibration rod

Measuring laser height

-

(NI-53378)

Pro park alignment targets

Laser alignment

Commercial Service Tools

Tool Description
Power tool

Loosening screws

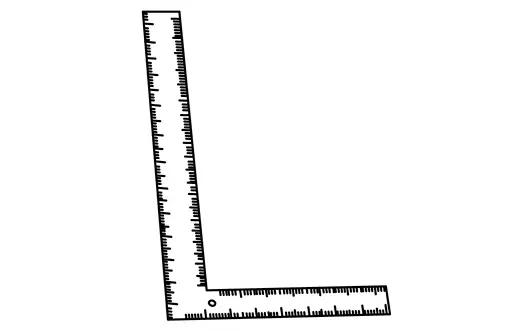

Carpenter's square, minimum 12 in (305 mm) long

Making a square line
Painter's tape, minimum width of 1.875 in (48 mm)

Marking area

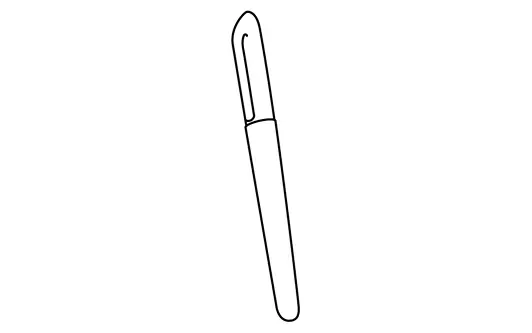

Permanent marker

Marking

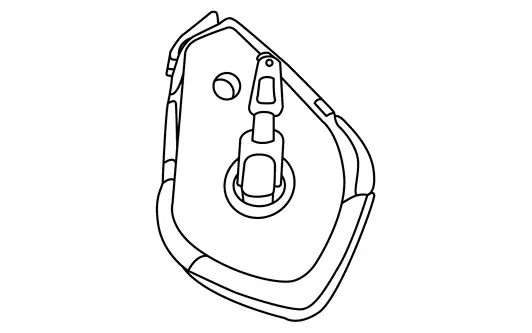

Chalk line tool

Making a chalk line

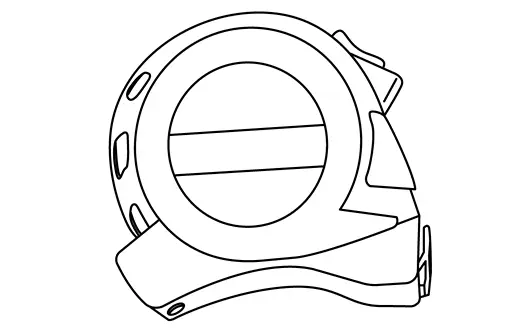

Metric tape measure, minimum of 5 meters long

Measuring
