Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: How to park with predictive course lines
WARNING
- If the tires on your Nissan Rogue are replaced with different sizes, the predictive course lines may be displayed incorrectly.
- On snowy or slippery surfaces, actual vehicle movement may differ from what the predictive course lines show.
- If the battery is disconnected or discharged, predictive course line accuracy may be affected. To recalibrate:
- Turn the steering wheel from lock to lock with the engine running.
- Drive straight for more than 5 minutes.
- Turning the steering wheel with the ignition ON may temporarily distort predictive course line display.
1. Visually confirm the parking space is safe before parking the Nissan Rogue.

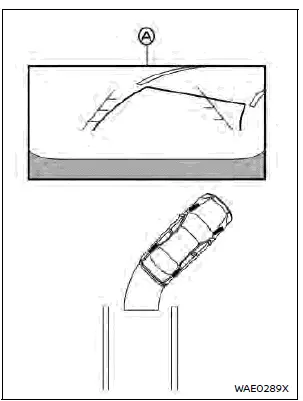

2. Move the shift lever to R (Reverse). The rear view will appear on the display screen A.

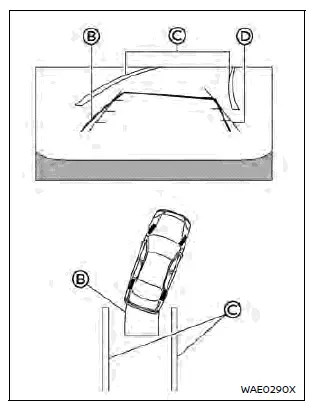

3. Slowly back up and adjust steering so predictive course lines B align with the parking space C.
4. Maneuver the steering wheel until the vehicle width guide lines D become parallel to the parking space C.
5. Once fully positioned, shift to P (Park) and apply the parking brake.
Adjusting the screen

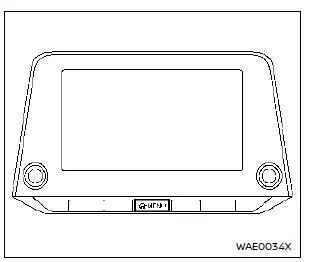

1. Push the MENU button.
2. Select "Settings" → "Camera".
3. Touch "Display Settings".
4. Adjust "Brightness", "Contrast", "Tint", "Color", or "Black Level".
5. Use the "+" or "-" touch controls to fine-tune the display.
NOTE:
Adjust display settings only while the Nissan Rogue is parked with the parking brake applied.
How to turn predictive course lines ON/OFF
1. Push MENU.
2. Select "Settings" → "Camera".
3. Toggle "Predictive Course Lines" ON or OFF.
When in R (Reverse), pressing the CAMERA button also toggles predictive course lines.
RearView Monitor system operation
On the Nissan Rogue, the RearView Monitor displays the rear camera view using the camera 1 mounted just above the license plate. This system activates automatically when the ignition is ON and the s ...
RearView Monitor system limitations
WARNING
Be aware of system limitations when reversing the Nissan Rogue—improper use may result in injury or vehicle damage.
Blind spots still exist—the system cannot show everything.
Areas und ...
