Nissan Rogue Service Manual: ECU diagnosis information

AV CONTROL UNIT

Reference Value

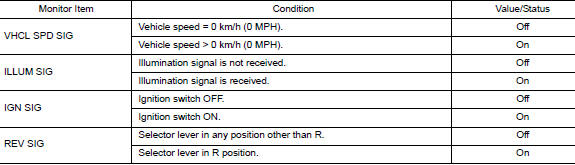

VALUES ON THE DIAGNOSIS TOOL

Values on the diagnosis tool

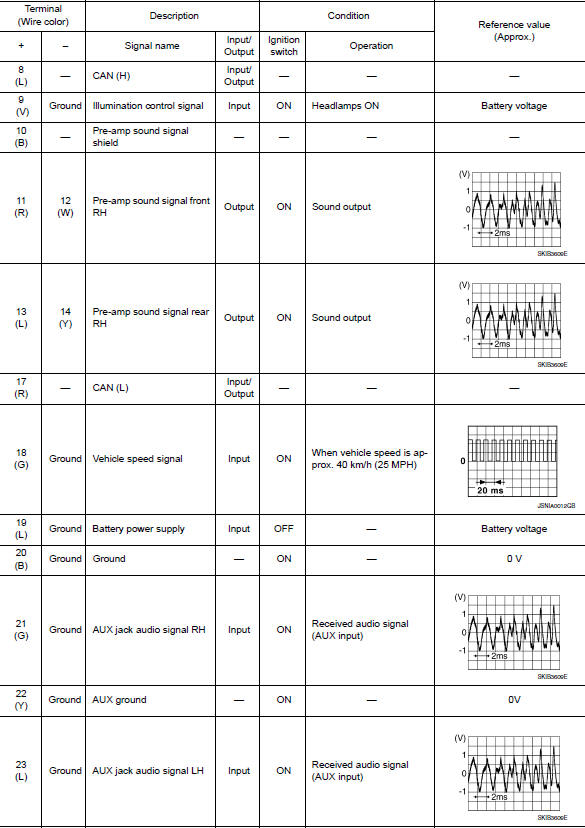

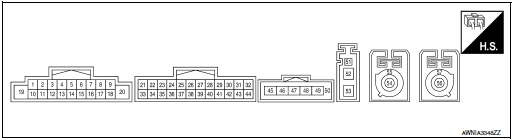

TERMINAL LAYOUT

Terminal layout

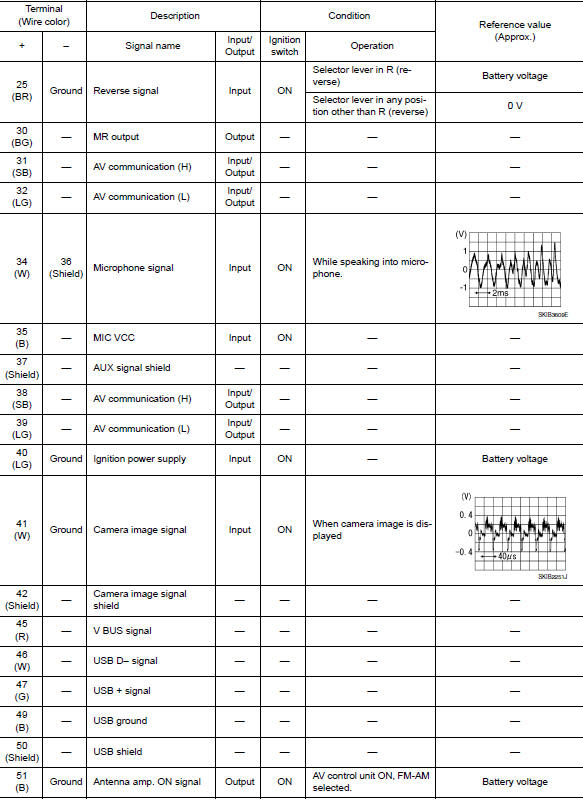

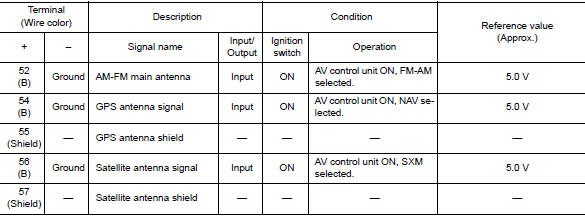

PHYSICAL VALUES

Physical values

Physical values

Physical values

Physical values

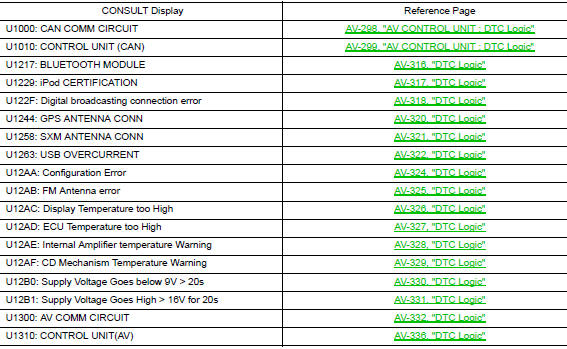

DTC Index

DTC Index

BOSE SPEAKER AMP

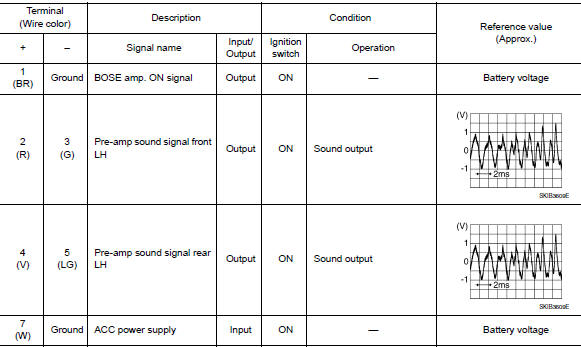

Reference Value

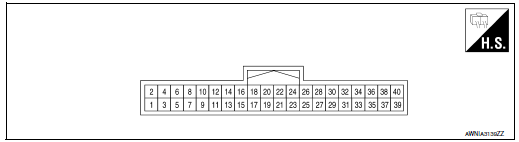

TERMINAL LAYOUT

Terminal layout

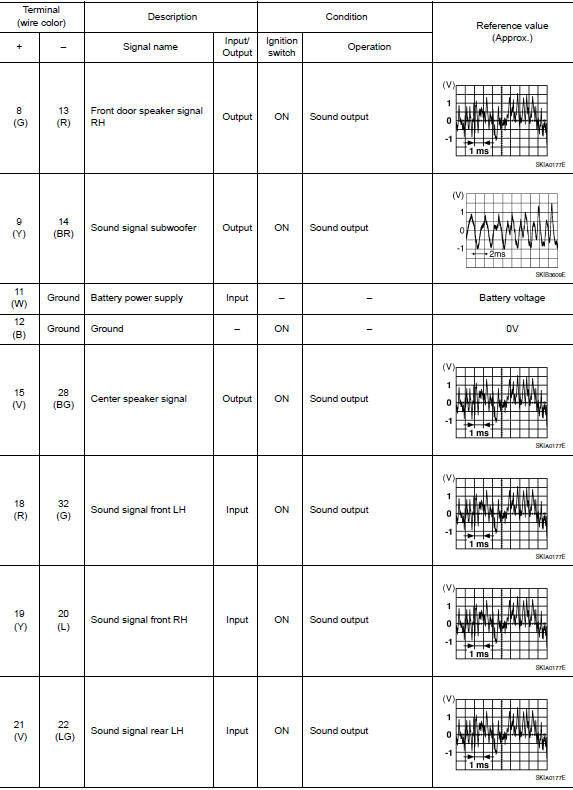

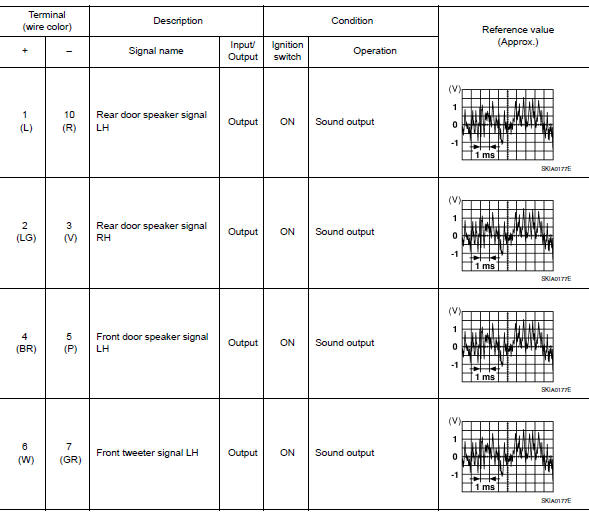

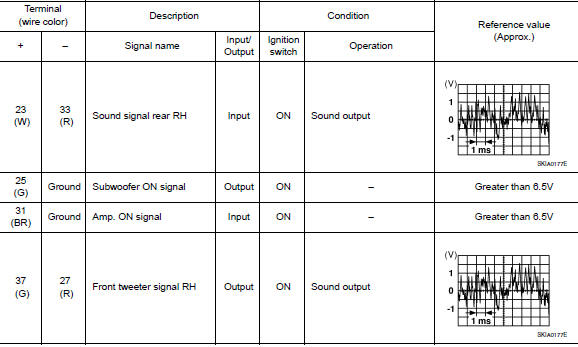

PHYSICAL VALUES

Physical values

Physical values

Physical values

AROUND VIEW MONITOR CONTROL UNIT

WITHOUT DRIVER ASSISTANCE SYSTEM

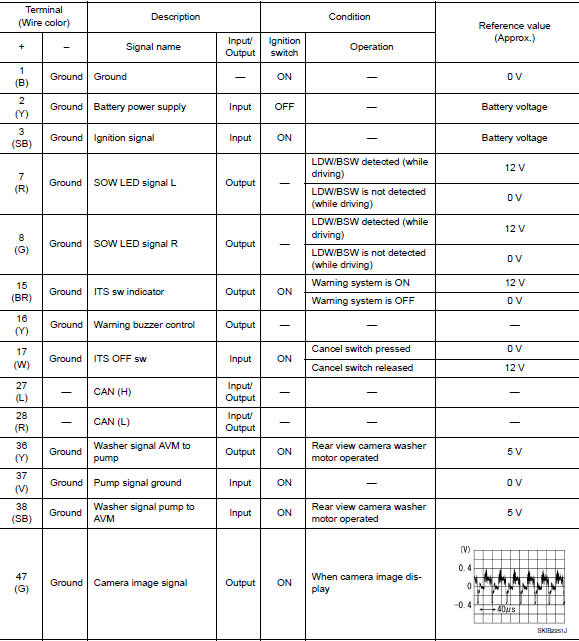

WITHOUT DRIVER ASSISTANCE SYSTEM : Reference Value

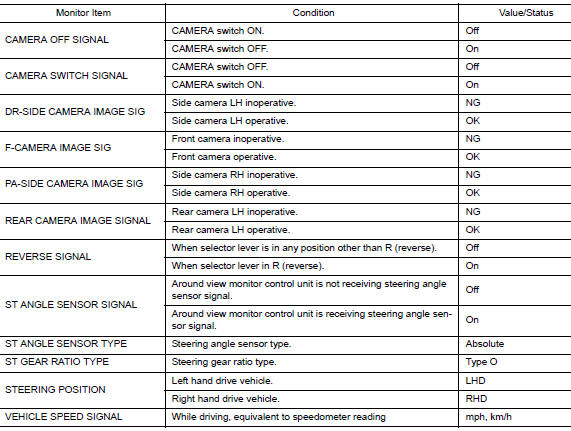

VALUES ON THE DIAGNOSIS TOOL

Values on the diagnosis tool

TERMINAL LAYOUT

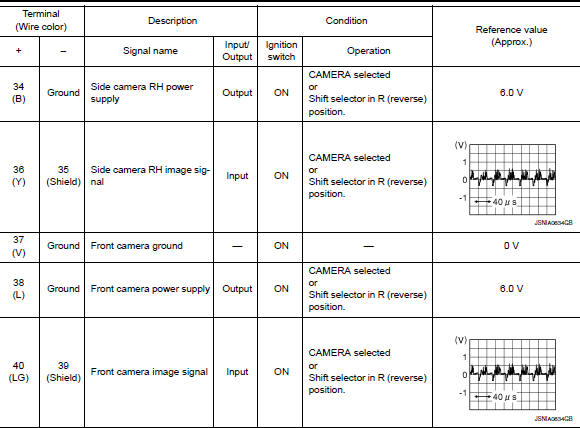

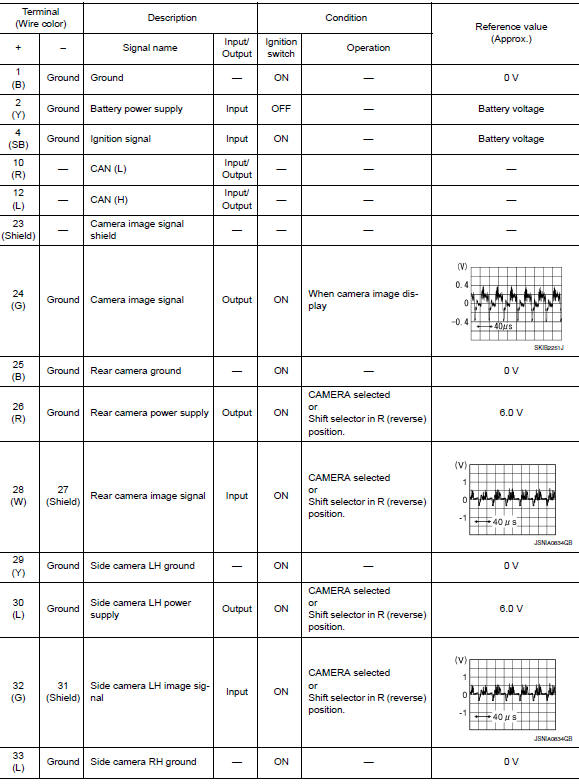

Terminal layout

PHYSICAL VALUES

Physical values

Physical values

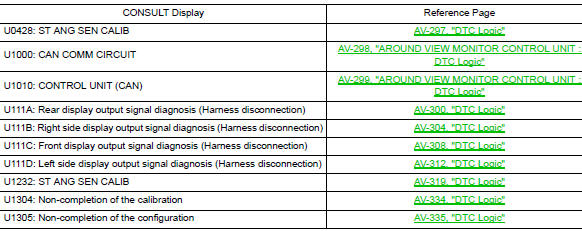

WITHOUT DRIVER ASSISTANCE SYSTEM : DTC Index

DTC Index

WITH DRIVER ASSISTANCE SYSTEM

WITH DRIVER ASSISTANCE SYSTEM : Reference Value

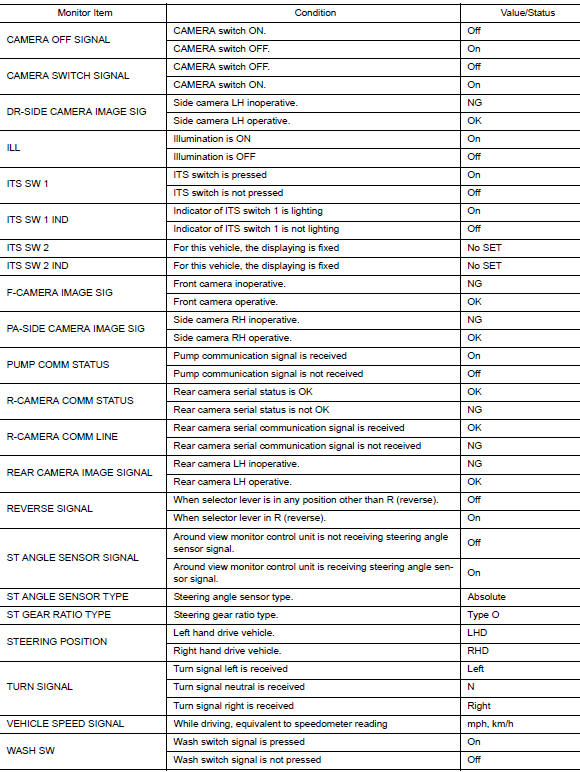

VALUES ON THE DIAGNOSIS TOOL

Values on the diagnosis tool

TERMINAL LAYOUT

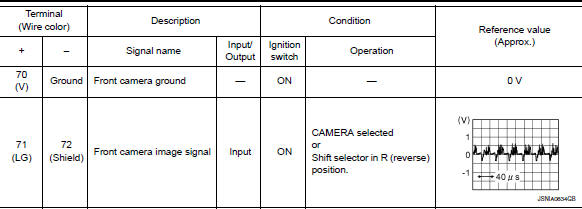

Terminal layout

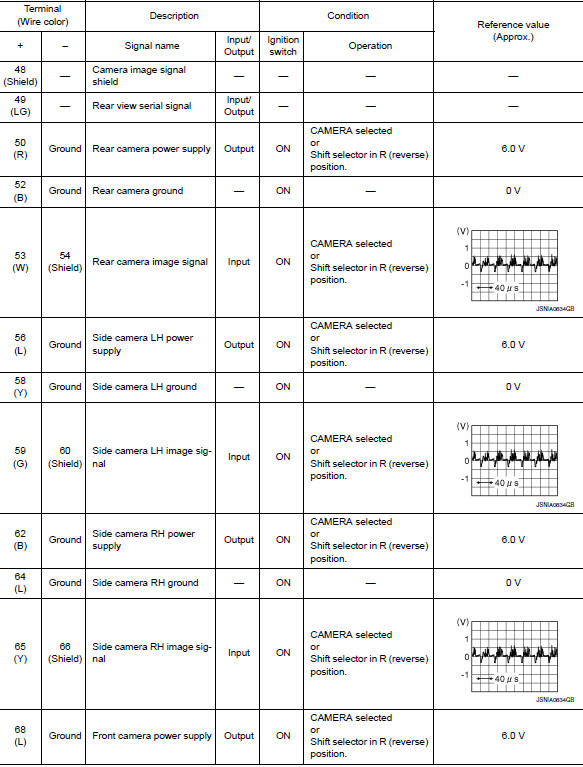

PHYSICAL VALUES

Physical values

Physical values

Physical values

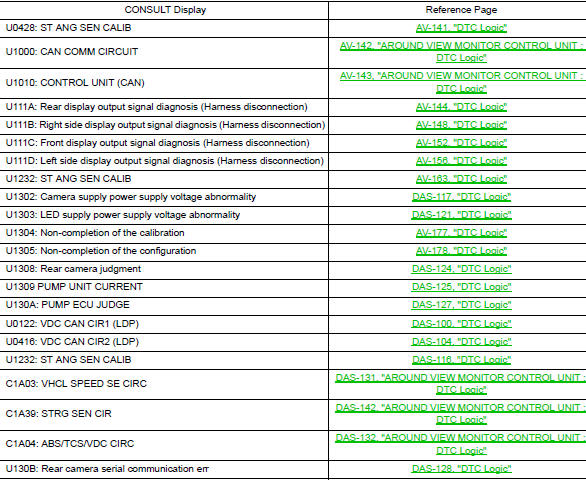

WITH DRIVER ASSISTANCE SYSTEM : DTC Index

DTC Index

System description
COMPONENT PARTS Component Parts Location View under rear of front passenger seat  View with spare tire cover removed  Center of back door  View with glove box removed ...

Wiring diagram
