Nissan Rogue (T33) 2021-Present Service Manual: Combination Meter

Nissan Rogue (T33) 2021-Present Service Manual / Driver Information & Multimedia :: Meter, Warning Lamp & Indicator / Type a :: Ecu Diagnosis Information / Combination Meter

Reference Value

VALUES ON THE DIAGNOSIS TOOL

NOTE:

The following table includes information (items) inapplicable to this Nissan Ariya vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

Monitor Item Condition Value/Status

SPEED METER

[mph or km/h] 		Ignition switch ON While driving Input value of Nissan Ariya vehicle speed signal (CAN communication signal)

Speed output

[mph or km/h] 		Ignition switch ON While driving Output value of Nissan Ariya vehicle speed signal (CAN communication signal)

Odometer output

[mi or km] 		Ignition switch ON — Output value of odometer signal (CAN communication signal)

Tacho meter

[rpm] 		Ignition switch ON Engine running Input value of engine speed signal (CAN communication signal)

Fuel meter

[L] 		Ignition switch ON — Input value of fuel level sensor signal

Water temperature meter

[°F or °C] 		Ignition switch ON — Input value of engine coolant temperature signal (CAN communication signal)
ABS warning lamp Ignition switch ON ABS warning lamp: ON On
Other than the above Off
VDC indicator Ignition switch ON VDC OFF indicator lamp: ON On
Other than the above Off
VDC warning lamp Ignition switch ON VDC warning lamp: ON On
Other than the above Off
Brake warning lamp Ignition switch ON Brake warning lamp: ON On
Other than the above Off
Electric parking brake warning lamp Ignition switch ON Electric parking brake warning lamp: ON On
Other than the above Off
Door warning Ignition switch ON During door open warning indication On
Other than the above Off
Trunk/glass hatch Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
HI-BEAM IND Ignition switch ON High beam indicator lamp: ON On
Other than the above Off
Turn indicator Ignition switch ON Turn signal indicator lamp: ON On
Other than the above Off
Front fog lamp indicator Ignition switch ON Front fog lamp indicator lamp: ON On
Other than the above Off
Rear fog lamp indicator Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Position lamp indicator Ignition switch ON Position lamp indicator lamp: ON On
Other than the above Off
Engine oil pressure warning lamp Ignition switch ON During engine oil pressure warning lamp ON On
Except during engine oil pressure warning lamp OFF Off
Malfunction indicator lamp (MIL) Ignition switch ON Malfunction indicator lamp (yellow) ON On
Malfunction indicator lamp (yellow) OFF Off
GLOW IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
C-ENG2 W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
CRUISE IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SET IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
CRUISE W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
BA W/L Ignition switch ON AEB warning lamp: ON On
Other than the above Off
ATC/T-AMT W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off

ATF TEMP W/L

[Off] 		Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
CVT IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
4WD W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Fuel warning lamp Ignition switch ON During low fuel warning indication On
Other than the above Off
Washer warning lamp Ignition switch ON During low washer fluid warning indication On
Other than the above Off
Low tire pressure warning lamp Ignition switch ON Low tire pressure warning lamp ON On
Other than the above Off
KEY GREEN/YELLOW WARNING LAMP Ignition switch ON During Intelligent Key system malfunction indication On
Except during Intelligent Key system malfunction indication Off
KEY R W/L Ignition switch ON During Intelligent Key system malfunction indication On
Except during Intelligent Key system malfunction indication Off
KEY KNOB W/L Ignition switch ON During Intelligent Key system malfunction indication On
Except during Intelligent Key system malfunction indication Off
Power steering warning lamp Ignition switch ON Power steering warning lamp ON On
Other than the above Off
e-4WD W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
AFS OFF IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
4WAS/RAS W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
DDS W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
LANE W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
LDP IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SLOW IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
READY IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
INVT TEMP IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SYS FAIL W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
HV BAT W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
HEV BRAKE W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SFT OPER W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
LANE KEEP W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
IDOL STOP IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Charge warning lamp Ignition switch ON 12V battery charge warning lamp ON On
Other than the above Off
4WD AUTO IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
DPF W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
TRAILER IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ECO MODE IND Ignition switch ON ECO drive indicator lamp ON On
Other than the above Off
ATP W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
E-SUS IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
DCA IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
MT SYNC REV IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
FILTER W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Urea remaining W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ACC TARGET Ignition switch ON During Nissan Ariya vehicle ahead detection indicator is displayed On
During Nissan Ariya vehicle ahead detection indicator is not displayed Off
ACC DISTANCE Ignition switch ON set distance indicator (short) is displayed SHORT
set distance indicator (mid) is displayed Mid
set distance indicator (long) is displayed LONG
During set distance indicator not displayed Off
ACC SET SPEED Ignition switch ON During set Nissan Ariya vehicle speed indicator not displayed Off
During set Nissan Ariya vehicle speed indicator displayed Indicates the set vehicle speed
ACC UNIT Ignition switch ON Set Nissan Ariya vehicle speed indicator unit display ON On
Set Nissan Ariya vehicle speed indicator unit display OFF Off
SHIFT IND Ignition switch ON — Indicates the shift position
GEAR SHIFT IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
4WD IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
OFFLOAD IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ECO DRIVE IND G Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ECO DRIVE IND O Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
BSW IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
DRIVE MODE STATS Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SCR/OIL DISP Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
TOW MODE IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
CHECK SUS IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
FUEL CAP W/L Ignition switch ON During fuel filler cap warning indication On
Other than the above Off
Electric parking brake indicator Ignition switch ON Electric parking brake indicator lamp ON On
Other than the above Off
PNP P SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
PNP N SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
O/D OFF SW Ignition switch ON SPORT mode switch ON On
Other than the above Off
RANGE 1 Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
AT S MODE SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
AT P MODE SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
M RANGE SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
NM RANGE SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
AT SFT UP SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
AT SFT DWN SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ST SFT UP SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ST SFT DWN SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
AIR COND SIG Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
HEATER FAN SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
REAR DEF SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
A/C LOW TEMP Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
COMP F/B SIG Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
4WD LOCK SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SYNC MODE Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
PKB SW Ignition switch ON Parking brake switch ON (except electric parking brake system) On
Parking brake switch OFF (except electric parking brake system) Off
BUCKLE SW Ignition switch ON Driver seat belt not fastened On
Driver seat belt fastened Off
Brake oil switch Ignition switch ON Brake fluid level switch ON On
Other than the above Off
AIR BAG SIG Ignition switch ON SRS air bag warning lamp signal is received On
Other than the above Off
CHG SIG Ignition switch ON 12V battery charge warning lamp signal is received On
Other than the above Off
RR COMB STATE Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ABS EXIST Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
VDC/TCS EXIST Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
AMB POWER Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
MODE A SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
MODE B SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
MT SYNC REV SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
PASS BUCKLE SW Ignition switch ON

  • When getting in the passenger seat.

  • When passenger seat belt is unfastened.

 On

  • When getting in the passenger seat.

  • When passenger seat belt is fastened

 Off
TOW MODE SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ECO MODE SW Ignition switch ON ECO mode switch ON On
Other than the above Off
SPORT MODE SW Ignition switch ON SPORT mode switch ON On
Other than the above Off
Electric shift warning lamp (red) Ignition switch ON Electric shift warning lamp (red): ON On
Other than the above Off
LED LAMP RIGHT OPEN Ignition switch ON Front combination lamp RH malfunction On
Other than the above Off
LED LAMP LEFT OPEN Ignition switch ON Front combination lamp LH malfunction On
Other than the above Off

Distance

[km] 		Ignition switch ON — Distance to empty

Outside temperature

[°F or °C] 		Ignition switch ON — Displays the ambient air temperature which is input from the ambient sensor.
FUEL LOW SIG Ignition switch ON Low fuel warning: ON On
Other than the above Off
Cranking signal Ignition switch ON When engine is cranking On
Other than the above Off
Starter control signal Ignition switch ON When starter control status signal is received from BCM via CAN communication. On
Other than the above Off
DOOR LOCK SIG Ignition switch ON Door lock signal: ON On
Other than the above Off
DR DOOR SIG Ignition switch ON — LHD
Buzzer Ignition switch ON Buzzer ON On
Buzzer OFF Off
BATTERY CIRCUIT STATUS — Shipping mode ON On
Other than shipping mode Off
Parking assist display Ignition switch ON Sonar display setting ON On
Sonar display setting OFF Off
Parking assist sensor Ignition switch ON When sonar set to "OFF" Off
When sonar set to "Rear" Rear
When sonar set to "Front" FRONT
When sonar set to "ON" On
Other than above Not support
Parking assist volume Ignition switch ON When sonar volume set to "HIGH" HIGH
When sonar volume set to "MIDDLE" MEDIUM
When sonar volume set to "LOW" LOW
Other than above Not support
Parking assist range Ignition switch ON When sonar range set to "NEAR" NEAR
When sonar range set to "MEDIUM" MEDIUM
When sonar range set to "FAR" FAR
Other than above Not support
RAB W/L Ignition switch ON RAB warning lamp: ON On
Other than the above Off
Electric shift warning lamp Ignition switch ON Electric shift warning lamp: ON On
Other than the above Off
Sailing stop W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ALL PWER MTER Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 kw
SOC METER Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 %
VOLTMETER Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 V
BRAKE PAD W/L Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 V
TPMS DISP Ignition switch ON TPMS display: ON On
Other than the above OIf
TIRE STATUS FR Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
TIRE STATUS FL Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
TIRE STATUS RR Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
TIRE STATUS RL Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Sonar setting available Ignition switch ON During the setting of the combination meter Available
Other than the above Unavailable
Steering switch input Ignition switch ON Control switch is pressed SW1
Jog dial is rotated upward SW2
Jog dial is rotated downward SW3
OK switch is pressed SW4
LEFT/BACK switch is pressed SW5
RIGHT switch is pressed SW6
VOLUME DOWN switch is pressed SW7
VOLUME UP switch is pressed SW8
TEL switch is pressed SW9
VR switch is pressed SW10
SEEK DOWN switch is pressed SW11
SEEK UP switch is pressed SW12
Other than above NO INPUT
STRG SW OUTPUT Ignition switch ON Control switch is pressed SW1
Jog dial is rotated upward SW2
Jog dial is rotated downward SW3
OK switch is pressed SW4
LEFT/BACK switch is pressed SW5
RIGHT switch is pressed SW6
VOLUME DOWN switch is pressed SW7
VOLUME UP switch is pressed SW8
TEL switch is pressed SW9
VR switch is pressed SW10
SEEK DOWN switch is pressed SW11
SEEK UP switch is pressed SW12
Other than above NO OUTPUT
ITS SONAR SET OUTPUT Ignition switch ON LDW status in combination meter selection ON LDW On
LDW status in combination meter selection OFF LDW Off
BSW status in combination meter selection ON BSW On
BSW status in combination meter selection OFF BSW Off
AEB status in combination meter selection ON FEB On
AEB status in combination meter selection OFF FEB Off
MOD setting: ON P MV ON
MOD setting: OFF P MV OFF
Sonar display setting: ON SONAR ON
Sonar display setting: ON SONAR OFF
Sonar sensor setting: ON P SEN ON
Sonar sensor setting: OFF P SEN OFF
Sonar sensor setting: FRONT P SEN FRONT
Sonar volume setting: HIGH P BUZ HIGH
Sonar volume setting: MED P BUZ MED
Sonar volume setting: LOW P BUZ LOW
Sonar distance setting: FAR P RNG FAR
Sonar distance setting: MED P RNG MED
Sonar distance setting: NEAR P RNG NEAR
Other than above NO SW ST
High-beam assist indicator lamp Ignition switch ON High beam assist indicator lamp ON On
High beam assist indicator lamp OFF Off
AVM display Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Sonar detection status Ignition switch ON Sonar control unit detected the obstacle On
Sonar control unit not detected the obstacle Off
Sonar warning Ignition switch ON Sonar sensor error ON (sonar system ON) ERROR
Sonar system OFF DEACT
Sonar sensor error OFF (sonar system ON) Off
Sonar detection display rear center Ignition switch ON Level of distance from center sensor rear to obstacle level1 LEVEL1
Level of distance from center sensor rear to obstacle level2 LEVEL2
Level of distance from center sensor rear to obstacle level3 LEVEL3
Level of distance from center sensor rear to obstacle level4 LEVEL4
Sonar detection display area rear center Ignition switch ON Obstacle is within the warning area of center sensor rear On
Other than above Off
DIPPED BEAM IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Sonar detection display rear left Ignition switch ON Level of distance from corner sensor rear LH to obstacle level1 LEVEL1
Level of distance from corner sensor rear LH to obstacle level2 LEVEL2
Level of distance from corner sensor rear LH to obstacle level3 LEVEL3
Level of distance from corner sensor rear LH to obstacle level4 LEVEL4
Sonar detection display area rear left Ignition switch ON Obstacle is within the warning area of corner sensor rear LH On
Other than above Off
Sonar detection display rear right Ignition switch ON Level of distance from corner sensor rear RH to obstacle level1 LEVEL1
Level of distance from corner sensor rear RH to obstacle level2 LEVEL2
Level of distance from corner sensor rear RH to obstacle level3 LEVEL3
Level of distance from corner sensor rear RH to obstacle level4 LEVEL4
Sonar detection display area rear right [On/Off] Ignition switch ON Obstacle is within the warning area of corner sensor rear RH On
Other than above Off
Sonar detection display front center Ignition switch ON Level of distance from center sensor front to obstacle level1 LEVEL1
Level of distance from center sensor front to obstacle level2 LEVEL2
Level of distance from center sensor front to obstacle level3 LEVEL3
Level of distance from center sensor front to obstacle level4 LEVEL4
Sonar detection display area front center Ignition switch ON Obstacle is within the warning area of center sensor front On
Other than above Off
Sonar detection display front left

Ignition switch ON

 Level of distance from corner sensor front LH to obstacle level 1 LEVEL1
Level of distance from corner sensor front LH to obstacle level 2 LEVEL2
Level of distance from corner sensor front LH to obstacle level 3 LEVEL3
Level of distance from corner sensor front LH to obstacle level 4 LEVEL4
Sonar detection display area front left Ignition switch ON Obstacle is within the warning area of corner sensor front LH On
Other than above Off
Sonar detection display front right Ignition switch ON Level of distance from corner sensor front RH to obstacle level 1 LEVEL1
Level of distance from corner sensor front RH to obstacle level 2 LEVEL2
Level of distance from corner sensor front RH to obstacle level 3 LEVEL3
Level of distance from corner sensor front RH to obstacle level 4 LEVEL4
Sonar detection display area front right Ignition switch ON Obstacle is within the warning area of corner sensor front RH On
Other than above Off
Sonar distance display Ignition switch ON Distance from obstacle to corner sensor is less than 30 cm STOP
Distance from obstacle to corner sensor is 30 cm or more and less than 40 cm 30 cm
Distance from obstacle to corner sensor is 40 cm or more and less than 50 cm 40 cm
Distance from obstacle to corner sensor is 50 cm or more and less than 60 cm 50 cm
Distance from obstacle to corner sensor is 60 cm or more and less than 70 cm 60 cm
Distance from obstacle to corner sensor is more than 70 cm Off
Engine Off timer Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 0
TRQ DSTRBT Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 %
LANE IND Ignition switch ON LANE display: ON On
LANE display: blink BLINK
LANE display: OFF Off
Front collision warning indicator lamp Ignition switch ON FCW system: ON On
FCW system: blink BLINK
FCW system: OFF Off
Lane departure warning indicator lamp Ignition switch ON LDW system: ON On
LDW system: blink BLINK
LDW system: OFF Off
TPMS FLT TIRE Ignition switch ON Flat tire On
Other than above Off
TPMS PRESS L Ignition switch ON Tire pressure is low On
Tire pressure is normal Off
4WD CL TMP H Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
4WD TIRE CHCK Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
4WD SYS MALF Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
E SUS MALF Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ABS MALF Ignition switch ON ABS malfunction display: ON On
Other than above Off
VDC MALF Ignition switch ON VDC malfunction display: ON On
Other than above Off
ENG SYS CHCK Ignition switch ON Engine warning display: ON On
Other than above Off
ASCD SYS MALF Ignition switch ON ASCD malfunction display: ON On
Other than above Off
OVER-BOOST IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ASCD SPEED BLINK Ignition switch ON Set Nissan Ariya vehicle speed indicator blinking On
Set vehicle speed indicator not blinking Off
ASCD STATUS Ignition switch ON ASCD system OFF Off
ASCD system ON ASCD
ASCD set Nissan Ariya vehicle speed CRUISE
ASCD REQUEST SPEED Ignition switch ON While driving Same value as ASCD or speed limiter set Nissan Ariya vehicle speed
Urea remain Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
E/O CHG TMNG Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 0
ENGINE OIL CHG TMNG RST Ignition switch ON Resetting of a remaining distance to the engine oil change time. On
Other than above Off
Urea time Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 0
AT STOP START IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
AT STOP START STS Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
AT STOP START SW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
HILL HOLD WARNING Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
ASSIST/CHARGE GAUGE Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 %
ACCEL GAUGE Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 %
ECO ACCEL POSITION Ignition switch ON — Value of ECO pedal guide display
REGENERATIVE BRAKE TRQ Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 %
MECHANICAL BRAKE TRQ Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 %
ENERGY FLOW Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 MODE8
Ecology drive navigator Ignition switch ON — LEVEL 0 - LEVEL 30
Target front Nissan Ariya vehicle Ignition switch ON Target front Nissan Ariya vehicle display: ON On
Target front Nissan Ariya vehicle display: BLINK BLINK
Target front Nissan Ariya vehicle display: IBA BLINK IBA BLINK
Other than above Off
BCI Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
BCI LEFT Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
BCI RIGHT Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
CRUISE READY IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Set forward emergency brake Ignition switch ON AEB setting is ON On
AEB setting is OFF Off
AEB is not available. Not support
Set lane departure warning Ignition switch ON LDW setting is ON On
LDW setting is OFF Off
LDW is not available. Not support
Set blind spot warning Ignition switch ON BSW setting is ON On
BSW setting is OFF Off
BSW is not available. Not support
Set Lane timing Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SET BCI BRAKE RESUME Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SET DCA Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Set lane departure prevention Ignition switch ON I-LI setting is ON On
I-LI setting is OFF Off
I-LI is not available. Not support
SET DCA TIMING Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SET RMOD Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SET BCI IGNITION STATUS Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SET IBA Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Not support
MSS RADER DEACTIVATED Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
CHASSIS CONTROL WARN Ignition switch ON Chassis control display (warning) indication On
Other than above Off
Set direct adaptive steering Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Set Emergency Assist Pedal Ignition switch ON EAPM setting is ON On
EAPM setting is OFF Off
EAPM is not available. Not support
Set No Entry Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Not support
Set Traffic Sign Recognition Ignition switch ON TSR setting is ON On
TSR setting is OFF Off
TSR is not available. Not support
SIGNAL WARNING STATUS Ignition switch ON signal warning is ON On
Other than above Off
HEV system state Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
LOW LI-ION BAT CHG WARN Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
VSP OFF IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
TIRE PRESS FR Ignition switch ON — 0 - 63.75
TIRE PRESS FL Ignition switch ON — 0 - 63.75
TIRE PRESS RR Ignition switch ON — 0 - 63.75
TIRE PRESS RL Ignition switch ON — 0 - 63.75
Blind spot warning indicator lamp Ignition switch ON BSW system display: ON On
BSW system display: WARN ON WARN ON
BSW system display: BLINK BLINK
Other than above Off
IBA IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
DCA IND Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Lane departure prevention indicator lamp Ignition switch ON I-LI system display ON On
Other than above Off
Blind spot intervention indicator lamp Ignition switch ON I-BSI system display ON On
Other than above Off
STATUS CHECK DSP Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
SET SPEED FLASHING Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
MSS STATUS WARNING ERR Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
MSS NO WARN SET Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
MSS NO DYNAMIC SET Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
PA display request Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Ack for PA Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Camera display request Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
PA malfunction Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Steering SW output Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 Off
Status of call display Ignition switch ON ProPILOT Assist system display jump function: ON On
ProPILOT Assist system display jump function: OFF Off
Lane detect Ignition switch ON Lane detection: ON On
Other than above Off
PP inst message Ignition switch ON ProPILOT Assist system instruction message: Speed Speed
ProPILOT Assist system instruction message: Active 1 Active 1
ProPILOT Assist system instruction message: Active 2 Active 2
ProPILOT Assist system instruction message: Standby Standby
ProPILOT Assist system instruction message: No message No msg
ProPILOT Assist system instruction message: OFF Off
PP display status Ignition switch ON Stand-by display (white) ON Stby
Stand-by display (white) blink Stby P
Operation display (green) ON Active
Operation display (green) blink Active P
Steering assist alert display (red) ON Free
Steering assist alert display (red) blink Free H
PloPILOT system is malfunction Malf
PloPILOT display OFF Off
Hands off warning lamp Ignition switch ON Hands off warning display: ON On
Other than above Off
PP cancel info Ignition switch ON ProPILOT Assist system cancel information: Speed Speed
ProPILOT Assist system cancel information: Target Target
ProPILOT Assist system cancel information: PA PA
ProPILOT Assist system cancel information: Obstacle Obstacle
ProPILOT Assist system cancel information: Weather Weather
ProPILOT Assist system cancel information: E-PKB E-PKB
ProPILOT Assist system cancel information: Seatbelt Seatbelt
ProPILOT Assist system cancel information: OFF No act
FEB status Ignition switch ON AEB system function: ON On
Other than above Off
PP setting status Ignition switch ON ProPILOT Assist system function is not available. Temp 1
ProPILOT Assist system function is not available. Temp 2
ProPILOT Assist system function is available. Avail 1
ProPILOT Assist system function is available. Avail 2
Nissan Ariya Vehicle distance Ignition switch ON

NOTE:

This item is displayed, but cannot be monitored.

 0
EAPM status Ignition switch ON EAPM is ON On
EAPM is OFF Off
EAPM is not available. No spprt
Traffic sign Ignition switch ON TSR display: Signal Signal
TSR display: No entry No entry
TSR display: Stop stop
TSR display: No message No msg

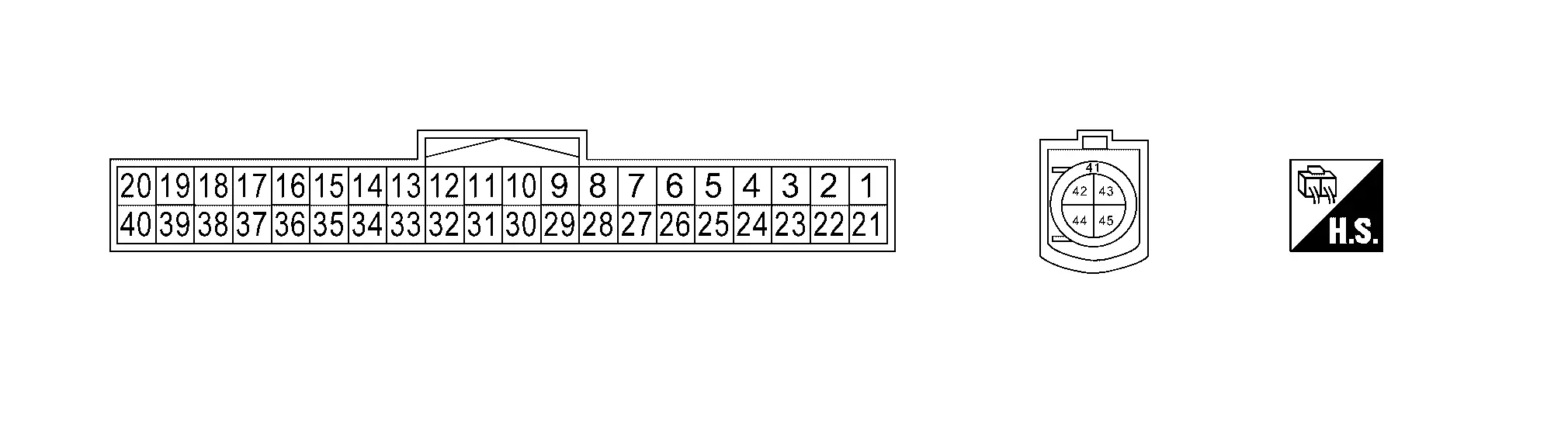

TERMINAL LAYOUT

PHYSICAL VALUES

Terminal No.

(Wire color) 		Description Condition

Value

(Approx.)
+ – Signal name

Input/

Output

1

(LA/G) 		Ground Illumination control signal Output Ignition switch ON

  • Lighting switch 1ST position

  • When meter illumination is minimum

— Battery voltage

  • Lighting switch 1ST position

  • When meter illumination is step 11

  • Lighting switch 1ST position

  • When meter illumination is maximum

 0 V

3

(LA/Y)

4

(LA/L) 		Meter speaker signal Output

[Ignition switch ON]

  • Sound output

 Outputs waveform synchronized with sound.

5

(LA/G) 		Ground Battery power supply Input Ignition switch OFF — Battery voltage

6

(LA/BR) 		Ground Ignition signal Input Ignition switch ON — Battery voltage

7

(B) 		Ground Ground — — — 0 V

15

(Y)5		 Ground Washer level switch signal Input Ignition switch ON Washer fluid level switch ON 0 V
Washer fluid level switch OFF 12 V

18

(LA/L) 		Ground CAN-High — — — —

19

(LA/R) 		Ground CAN-Low — — — —

23

(G) 		Ground Steering switch signal B Input Ignition switch ON Keep pressing VOLUME DOWN switch 0 V
Keep pressing VOLUME UP switch 0.3 V
Keep pressing TEL switch 0.7 V
Keep pressing VR switch 1.2 V
Keep pressing SEEK DOWN switch 1.9 V
Keep pressing SEEK UP switch 2.7 V
Other than the above 3.3 V

25

(W) 		Ground Illumination control switch signal (+) Input Ignition switch ON Illumination control switch (+) is pressed 0 V
Other than the above 3.3 V

28

(V) 		Ground Brake fluid level switch signal Input Ignition switch ON Brake fluid level low 5.0 V
Brake fluid level normal 12 V

29

(SB)

30

(P) 		Ambient sensor signal Input Ignition switch ON Changes depending to ambient temperature.

30

(P) 		Ground Ambient sensor ground — Ignition switch ON — 0 V

31

(R) 		Ground Illumination control switch signal (−) Input Ignition switch ON Illumination control switch (−) is pressed 0 V
Other than the above 3.3 V

32

(L)1

(B)2		 Ground Illumination control switch ground — Ignition switch ON — 0 V

33

(BG) 		Ground Steering switch signal A Input Ignition switch ON Keep pressing control switch 0 V
Keep rotating jog dial upward 0.3 V
Keep rotating jog dial downward 0.7 V
Keep pressing OK switch 1.2 V
Keep pressing LEFT/BACK switch 1.9 V
Keep pressing RIGHT switch 2.7 V
Other than the above 3.3 V

34

(GR) 		Ground Steering switch ground — Ignition switch ON — 0 V

35

(LA/G)

36

(LA/B) 		Fuel level sensor signal Input Ignition switch ON Fuel gauge indication position Full Less than 94.5 Ω
3/4 140 Ω
1/2 186 Ω
1/4 232 Ω
1/8 255 Ω
Empty More than 278 Ω

36

(LA/B) 		Ground Fuel level sensor signal — Ignition switch ON — 0 V

37

(LA/BR)

38

(LA/Y) 		Oil level sensor signal Input Ignition switch ON — Component Inspection

38

(LA/Y) 		Ground Oil level sensor signal — Ignition switch ON — 0 V

39

(LA/Y)3

(LA/LG)4		 Ground AV communication signal (L) — — — —

40

(LA/SB) 		Ground AV communication signal (H) — — — —
41 — Shield — — — —

44

(L) 		— Ethernet communication (+) — — — —

45

(R) 		— Ethernet communication (-) — — — —

1: U.S.A. production

2: Japan production

3: With ProPILOT Assist 2.1

4: Without ProPILOT Assist 2.1

5: For Canada only

Fail-Safe

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

Function Specifications
Speedometer Reset to zero by suspending communication.
Tachometer
Engine coolant temperature gauge

  • When reception time of an abnormal signal is 60 seconds or less, the last value received.

  • When reception time of an abnormal signal is more than 60 seconds, reset to zero.
Fuel gauge

  • The display turns OFF by suspending communication

  • Displays low fuel warning .
Odometer An indicated value is maintained at communications blackout.
Distance to empty The display turns " — — —" by suspending communication.
Ambient temperature The display turns "— — —" by suspending communication.
Shift position indicator The display turns OFF by suspending communication.
Illumination control

  • When suspending communication, changes to nighttime mode. (when ignition switch ON)

  • When suspending communication, changes to daytime mode. (when ignition switch OFF)
Information display Trip computer Current Nissan Ariya vehicle speed Reset to zero by suspending communication.
Current fuel consumption The last result calculated during normal condition is indicated.
Average fuel consumption
Average Nissan Ariya vehicle speed
ECO pedal guide The display turns OFF by suspending communication.
Buzzer The buzzer turns OFF by suspending communication.
Warning lamp/indicator lamp ABS warning lamp The lamp turns ON by suspending communication.
VDC warning lamp
Brake warning lamp
Electric power steering warning lamp
Malfunction indicator lamp (MIL)
12V battery charge warning lamp
Engine oil pressure warning lamp
SRS air bag warning lamp
Electric shift warning lamp
AEB warning lamp
RAB warning lamp
Electric parking brake warning lamp
Low tire pressure warning lamp

  • When reception time of an abnormal signal is 60 seconds or less, the lamp blinking.

  • When reception time of an abnormal signal is more than 60 seconds, the lamp turns ON.
Electric parking brake indicator lamp The lamp blinking caused by suspending communication.
High beam indicator lamp The lamp turns OFF by suspending communication.
Hands OFF warning lamp
High beam assist indicator lamp
VDC OFF indicator lamp
hill start assist indicator lamp
Turn signal indicator lamp
Front fog lamp indicator lamp
Position lamp indicator lamp
Seat belt warning lamp
Automatic brake hold indicator lamp

DTC Inspection Priority Chart

If multiple DTCs are detected simultaneously, check them one by one depending on the following DTC inspection priority chart.

Priority Detected items (DTC)
1

  • B2231-16: Battery voltage

  • B2231-17: Battery voltage
2

  • B2223-16: Combination meter

  • B2223-1C: Combination meter
3

  • U1010-49: CONTROL UNIT (CAN)

  • U1321-55: Config unfinished

  • U2118–87: CAN COMM CIRCUIT

  • U213D–87: CAN COMM CIRCUIT

  • U2140–87: CAN COMM CIRCUIT

  • U2141–87: CAN COMM CIRCUIT

  • U2148–87: CAN COMM CIRCUIT

  • U214A–87: CAN COMM CIRCUIT

  • U214F–87: CAN COMM CIRCUIT

  • U2150–87: CAN COMM CIRCUIT

  • U2152–83: CAN COMM CIRCUIT

  • U2152–87: CAN COMM CIRCUIT

  • U2153–87: CAN COMM CIRCUIT

  • U2154–87: CAN COMM CIRCUIT

  • U2159–87: CAN COMM CIRCUIT

  • U215B–87: CAN COMM CIRCUIT

  • U215F–87: CAN COMM CIRCUIT

  • U2165–87: CAN COMM CIRCUIT

  • U2169–87: CAN COMM CIRCUIT

  • U216B–87: CAN COMM CIRCUIT

  • U216E–87: CAN COMM CIRCUIT

  • U2173–87: CAN COMM CIRCUIT

  • U2175–87: CAN COMM CIRCUIT

  • U2176–87: CAN COMM CIRCUIT

  • U2193–87: CAN COMM CIRCUIT

  • U278C-87: Ethernet connection error
4

  • B2205-29: Nissan Ariya Vehicle SPEED

  • B2205-87: VEHICLE SPEED

  • B2267-29: TACHO METER

  • B2267-87: TACHO METER

  • B2268-29: WATER TEMP METER

  • B2268-87: WATER TEMP METER

  • B226A-82: ADAS CLK
5

  • B2202-11: Fuel level sensor

  • B2202-13: Fuel level sensor

  • B220A-11: ILLUMINATION OUTPUT CIRCUIT

  • B220B-23: Trip reset SW

  • B220C-23: Illumination up SW

  • B220D-23: Illumination down SW

  • B2210-11: Outside temp sens

  • B221A-23: Steering SW input1

  • B221B-23: Steering SW input2

  • B2221-11: Oil level sensor

  • B2221-13: Oil level sensor
6

  • B2227-86: AV communication

  • B2227-87: AV communication

DTC Index

Self Diagnostic Result
DTC CONSULT display Refer to
B2202-11 Fuel level sensor Refer to DTC Description.
B2202-13 Fuel level sensor Refer to DTC Description.
B2205-29 Nissan Ariya Vehicle SPEED Refer to DTC Description.
B2205-87 Nissan Ariya Vehicle SPEED Refer to DTC Description.
B220A-11 ILLUMINATION OUTPUT CIRCUIT Refer to DTC Description.
B220B-23 Trip reset SW Refer to DTC Description.
B220C-23 Illumination up SW Refer to DTC Description.
B220D-23 Illumination down SW Refer to .DTC Description
B2210-11 Outside temp sens Refer to DTC Description.
B221A-23 Steering SW input1 Refer to DTC Description.
B221B-23 Steering SW input2 Refer to DTC Description.
B2221-11 Oil level sensor Refer to DTC Description.
B2221-13 Oil level sensor Refer to DTC Description.
B2223-16 Combination meter Refer to DTC Description.
B2223-1C Combination meter Refer to DTC Description.
B2227-86 AV communication Refer to DTC Description.
B2227-87 AV communication Refer to DTC Description.
B2231-16 Battery voltage Refer to DTC Description.
B2231-17 Battery voltage Refer to DTC Description.
B2267-29 TACHO METER Refer to DTC Description.
B2267-87 TACHO METER Refer to DTC Description.
B2268-29 WATER TEMP METER Refer to DTC Description.
B2268-87 WATER TEMP METER Refer to DTC Description.
B226A-82 ADAS CLK Refer to DTC Description.
U1010-49 CONTROL UNIT (CAN) Refer to DTC Description.
U1321–55 Config unfinished Refer to DTC Description.
Network-DTC
DTC CONSULT display Refer to
U2118–87 CAN COMM CIRCUIT Refer to DTC Description.
U213D–87 CAN COMM CIRCUIT Refer to DTC Description.
U2140–87 CAN COMM CIRCUIT Refer to DTC Description.
U2141–87 CAN COMM CIRCUIT Refer to DTC Description.
U2148–87 CAN COMM CIRCUIT Refer to DTC Description.
U214A–87 CAN COMM CIRCUIT Refer to DTC Description.
U214F–87 CAN COMM CIRCUIT Refer to DTC Description.
U2150–87 CAN COMM CIRCUIT Refer to DTC Description.
U2152–83 CAN COMM CIRCUIT Refer to DTC Description.
U2152–87 CAN COMM CIRCUIT Refer to DTC Description.
U2153–87 CAN COMM CIRCUIT Refer to DTC Description.
U2154–87 CAN COMM CIRCUIT Refer to DTC Description.
U2159–87 CAN COMM CIRCUIT Refer to DTC Description.
U215B–87 CAN COMM CIRCUIT Refer to DTC Description.
U2165–87 CAN COMM CIRCUIT Refer to DTC Description.
U2169–87 CAN COMM CIRCUIT Refer to DTC Description.
U216B–87 CAN COMM CIRCUIT Refer to DTC Description.
U216E–87 CAN COMM CIRCUIT Refer to DTC Description.
U2173–87 CAN COMM CIRCUIT Refer to DTC Description.
U2175–87 CAN COMM CIRCUIT Refer to DTC Description.
U2176–87 CAN COMM CIRCUIT Refer to DTC Description.
U2193–87 CAN COMM CIRCUIT Refer to DTC Description.
U278C-87 Ethernet connection error Refer to DTC Description.
    Type a. Ecu Diagnosis Information
    Head up Display Unit
    Reference Value VALUES ON THE DIAGNOSIS TOOLNOTE: The following table includes information (items) inapplicable to this Nissan Ariya vehicle. For information (items) applicable ...

    Other materials:

    B20a4-87 Headlamp (lh) Lin Communication
    DTC Description DTC DETECTION LOGIC DTC No. CONSULT screen items (Trouble diagnosis content) DTC detection condition B20A4–87 Headlamp (LH) LIN communication [Headlamp (left hand) local interconnect network communication] [MISSING MESSAGE] Diagnosis condition Ignition switch ...

    Electric Wastegate Control Actuator
    Component Inspection INSPECTION START Do you have CONSULT? Do you have CONSULT? YES>> GO TO 2. NO>> GO TO 3. CHECK ELECTRIC WASTEGATE CONTROL ACTUATOR With CONSULT Turn ignition switch ON and engine stopped. On the CONSULT screen, select “ENGINE”>>“ACTIVE ...

    Mac Key Writing
    Description When replacing around view monitor control unit, it is necessary to write MAC key to around view monitor control unit. Write MAC key to around view monitor control unit according to "MAC Key writing" procedure of "CONSULT Operation Manual". Refer to Work Procedure.CAUTION: During ...
