Nissan Rogue Service Manual: Wiring diagram

MOONROOF SYSTEM

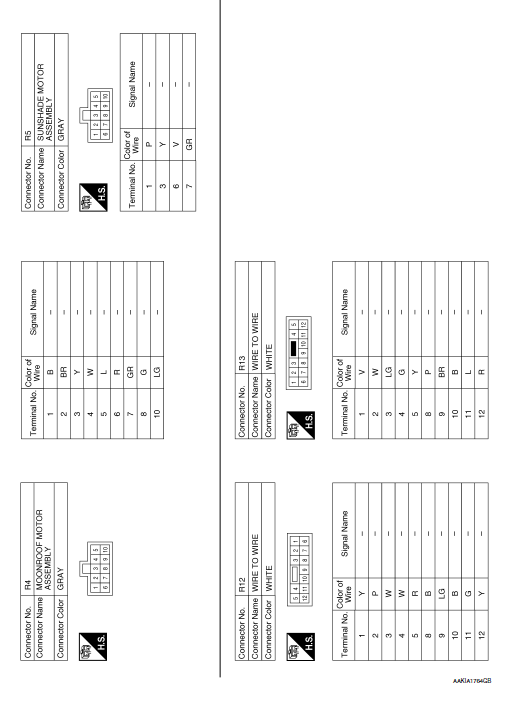

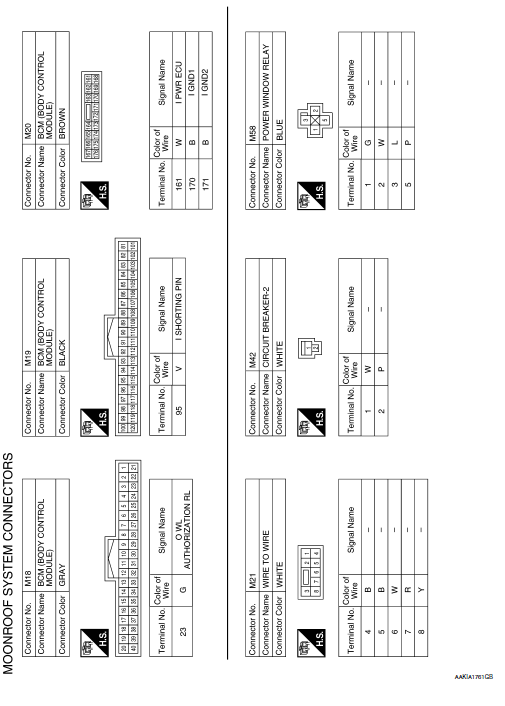

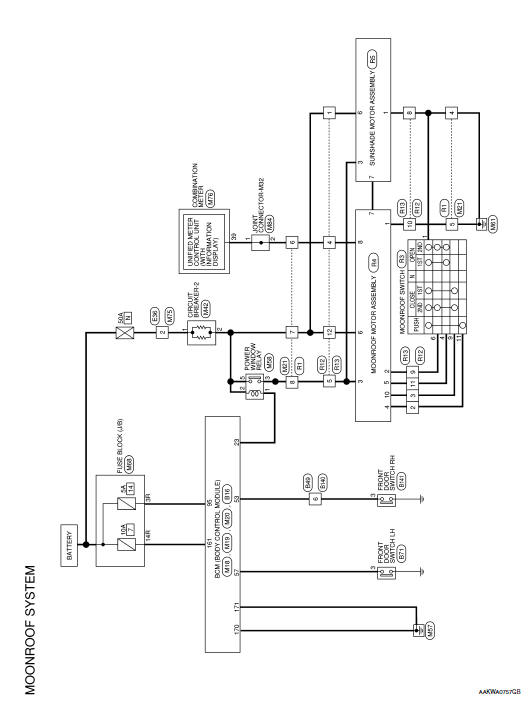

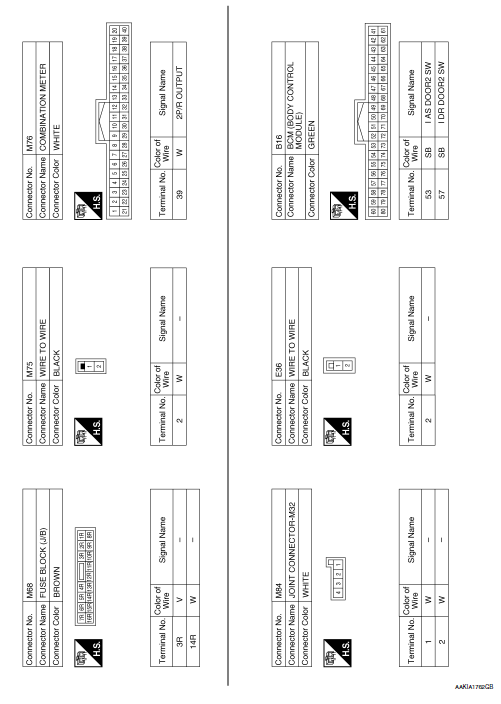

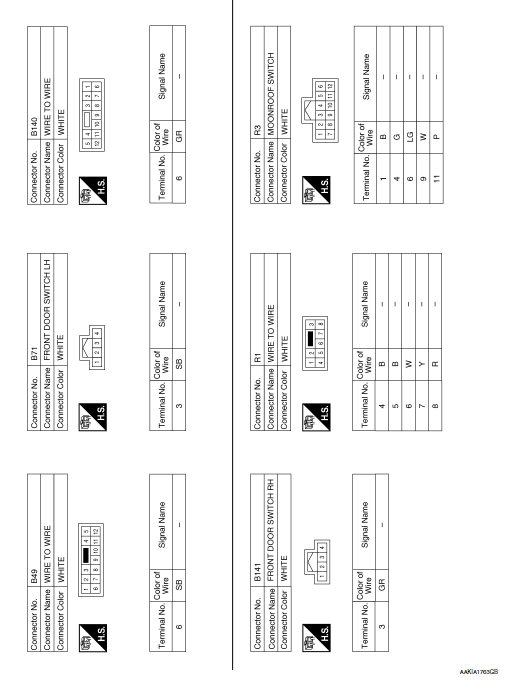

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Sunshade motor assembly
Reference Value TERMINAL LAYOUT PHYSICAL VALUES ...

Basic inspection
...
