Nissan Rogue Service Manual: Wiring diagram

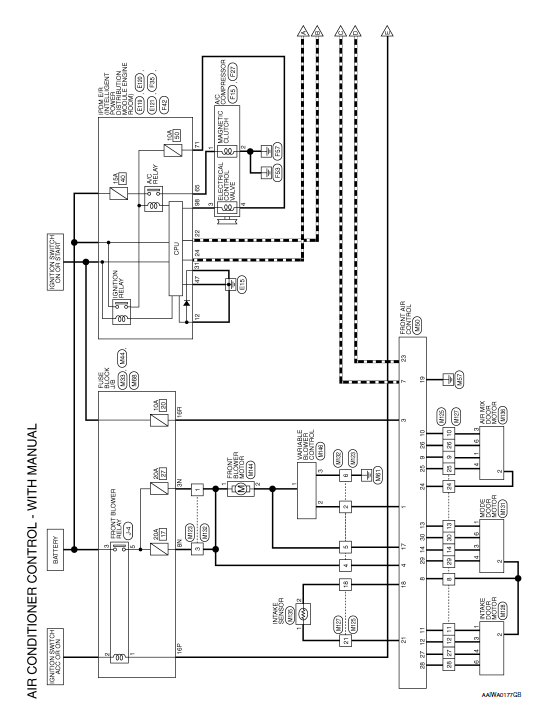

MANUAL AIR CONDITIONING SYSTEM

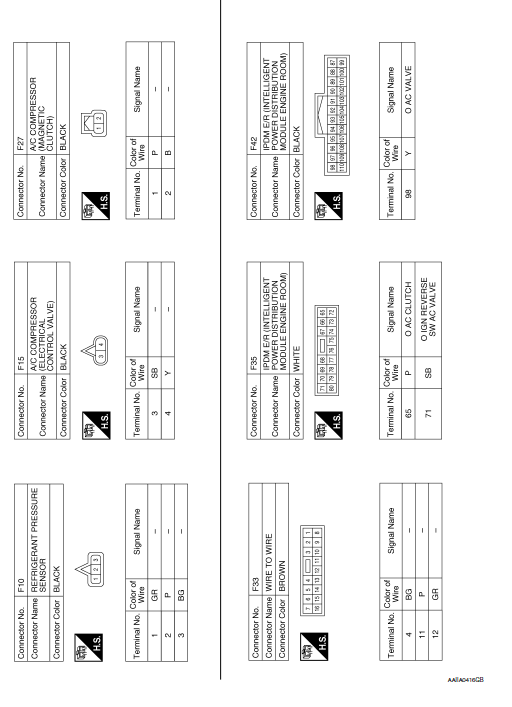

Wiring Diagram

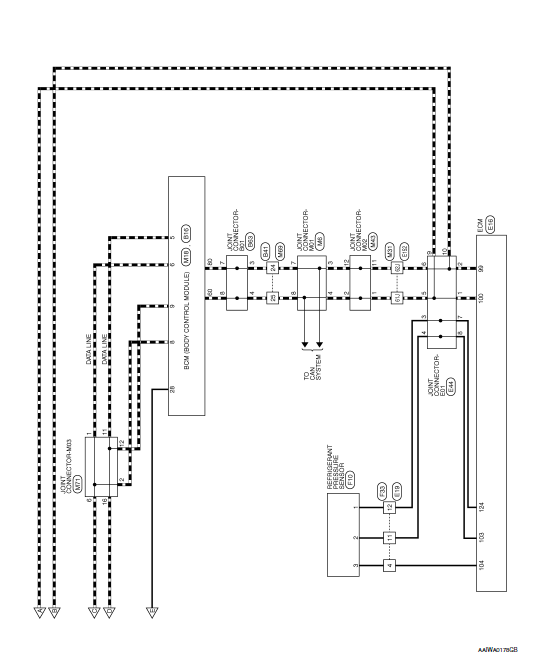

Wiring Diagram

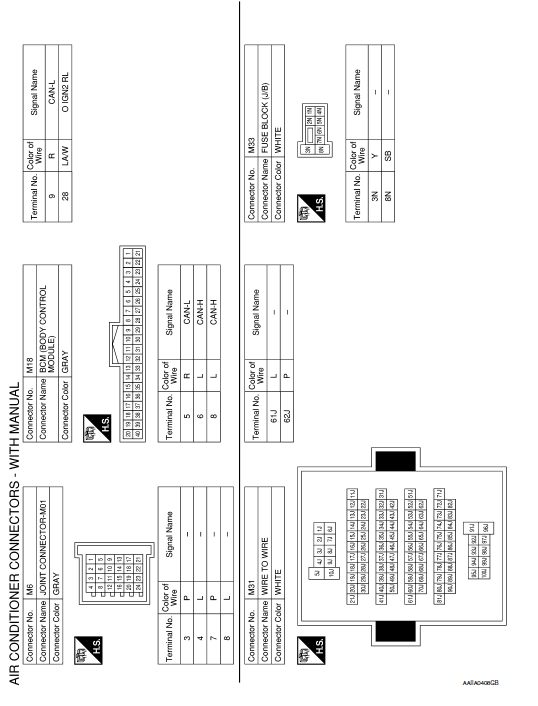

Wiring Diagram

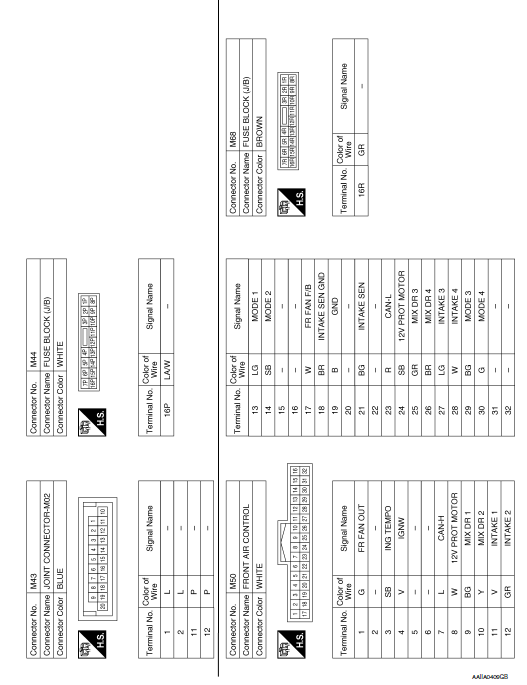

Wiring Diagram

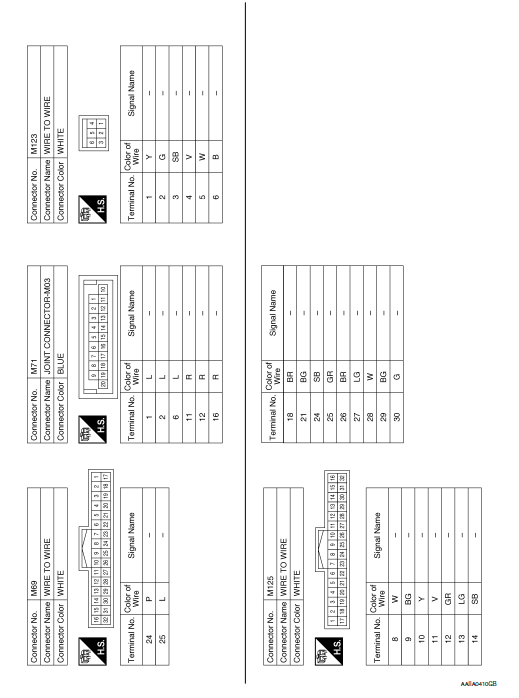

Wiring Diagram

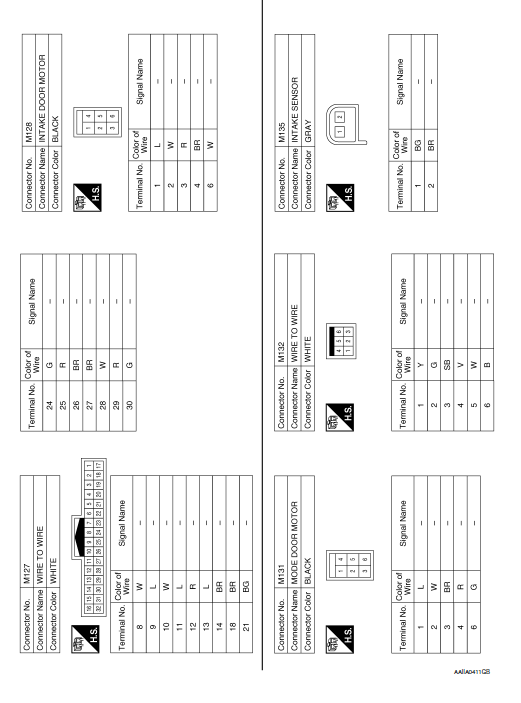

Wiring Diagram

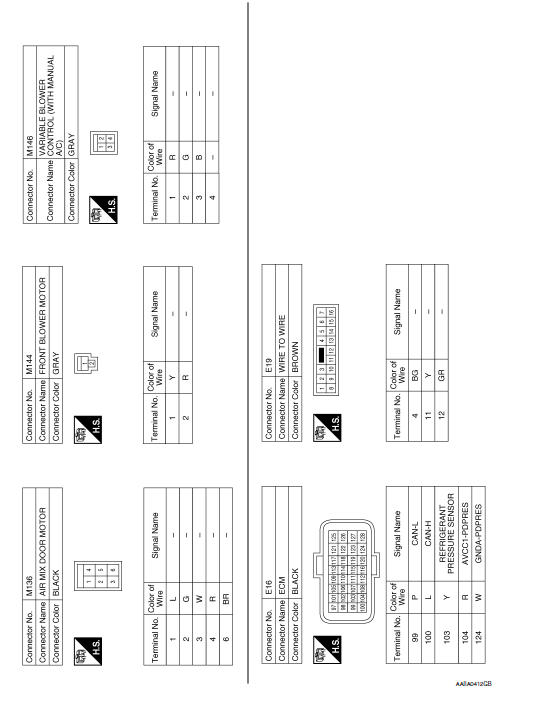

Wiring Diagram

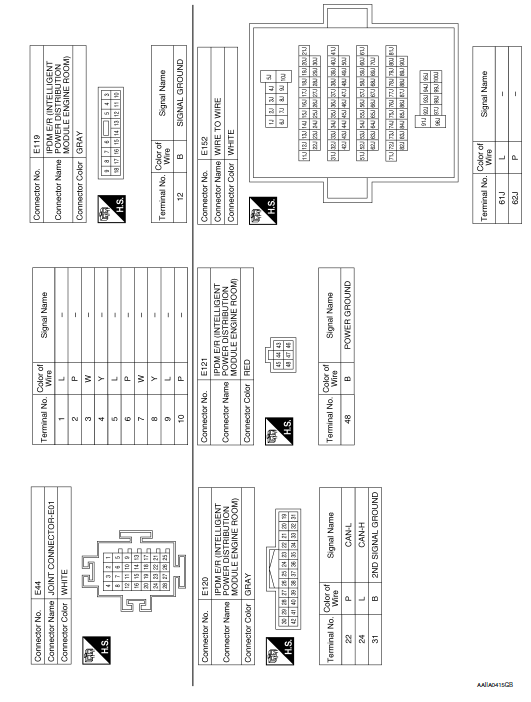

Wiring Diagram

Wiring Diagram

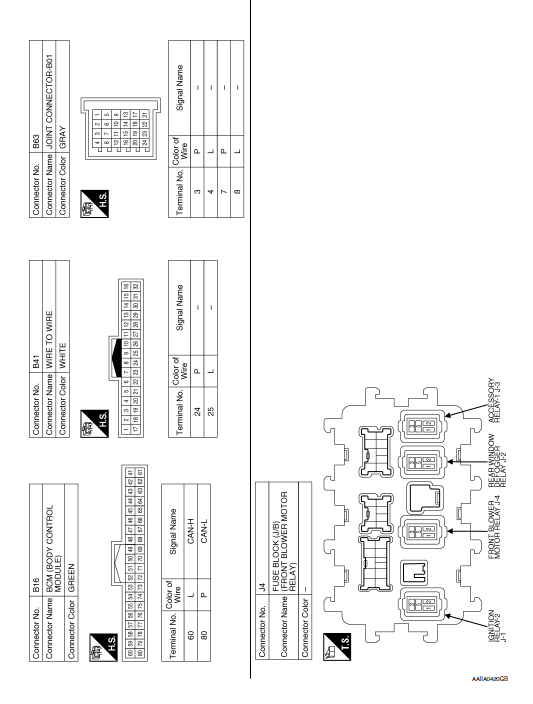

Wiring Diagram

Wiring Diagram

ECU diagnosis information
FRONT AIR CONTROL Reference Value TERMINAL LAYOUT PHYSICAL VALUES DTC Inspection Priority Chart If some DTCs are displayed at the same time, perform inspections one by one based ...

Basic inspection
DIAGNOSIS AND REPAIR WORKFLOW Work Flow OVERALL SEQUENCE DETAILED FLOW 1.INTERVIEW CUSTOMER Interview the customer to obtain as much information as possible about the conditions and environ ...

Other materials:

DTC/circuit diagnosis
U1000 CAN COMM CIRCUIT WITH INTELLIGENT KEY WITH INTELLIGENT KEY : Description Refer to LAN-8, "System Description". WITH INTELLIGENT KEY : DTC Logic DTC DETECTION LOGIC NOTE: U1000 can be set if a module harness was disconnected and reconnected, perhaps during a repair. Confirm ...

CAN system (type 2)
MAIN LINE BETWEEN IPDM-E AND DLC CIRCUIT Diagnosis Procedure 1.CHECK CONNECTOR  Turn the ignition switch OFF.  Disconnect the battery cable from the negative terminal.  Check the following terminals and connectors for damage, bend and loose connection (connector side an ...

Preparation
Special Service Tool The actual shape of the tools may differ from those illustrated here. Tool number (TechMate No.) Tool name Description KV38100500 ( — ) Drift Installing sensor rotor a: 80 mm (3.15 in) dia. b: 60 mm (2.36 in) dia. KV40 ...
