Nissan Rogue Service Manual: System

System Description

The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.

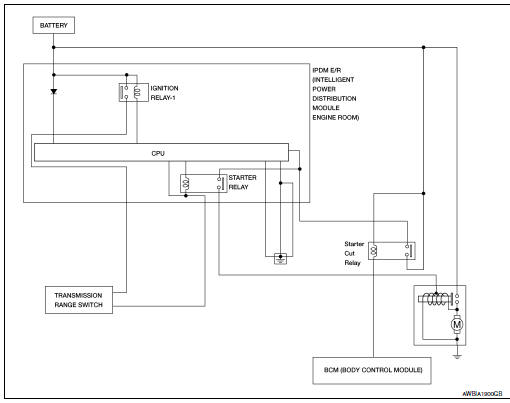

SYSTEM DIAGRAM

System diagram

Component parts
Component Parts Location Engine room (RH) View with transmission removed View with engine and transmission removed Behind instrument panel (LH) No. Component part Descr ...

Wiring diagram
STARTING SYSTEM Wiring Diagram ...
