Nissan Rogue Service Manual: Service data and specifications (SDS)

Nissan Rogue Service Manual / Transmission & driveline / Front Axle / FWD / Service data and specifications (SDS)

Wheel Bearing

Wheel Bearing

Drive Shaft

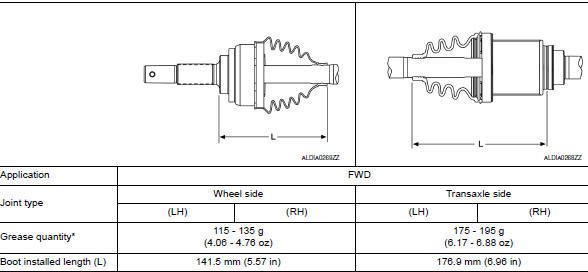

Drive Shaft Specifications

Drive Shaft Specifications

*Always check with the Parts Department for the latest parts information.

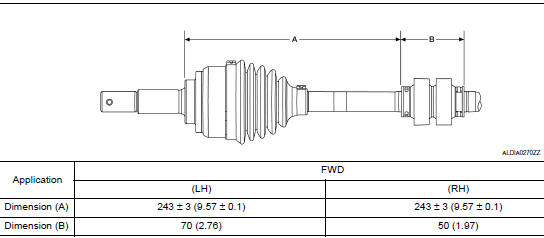

Dynamic Damper Specifications

Dynamic Damper Specifications

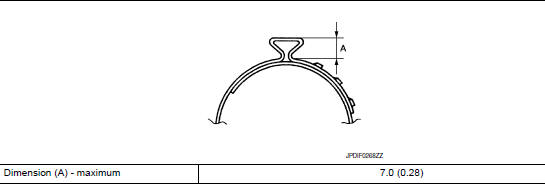

Boot Band Specification

Boot Band Specification
