Nissan Rogue Service Manual: Rear wiper and washer system

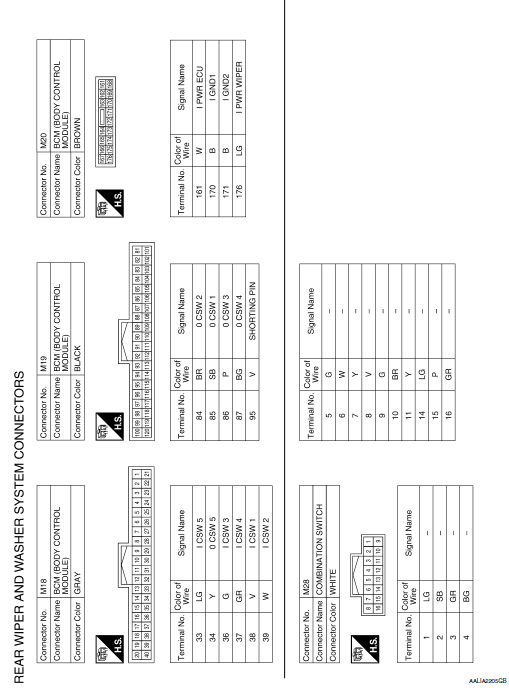

Wiring Diagram

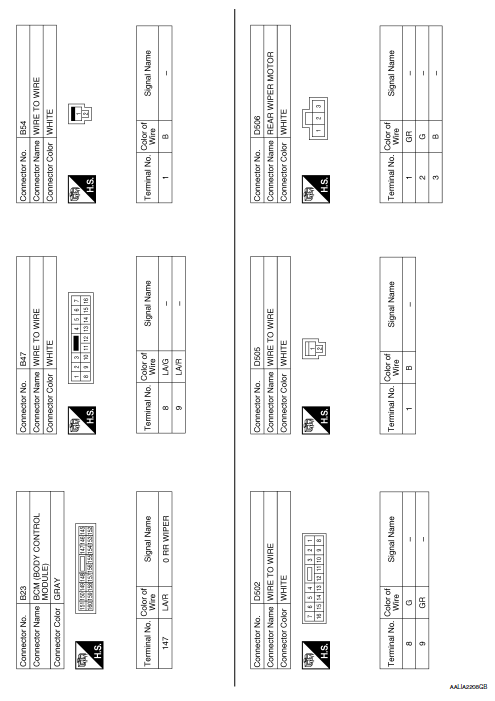

Wiring Diagram

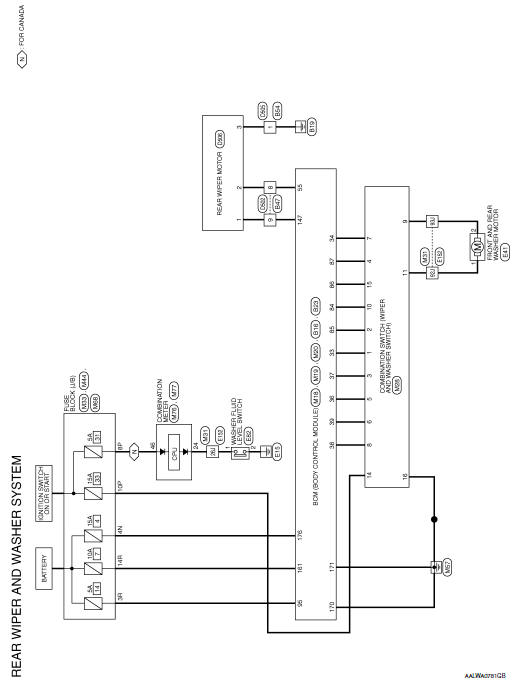

Wiring Diagram

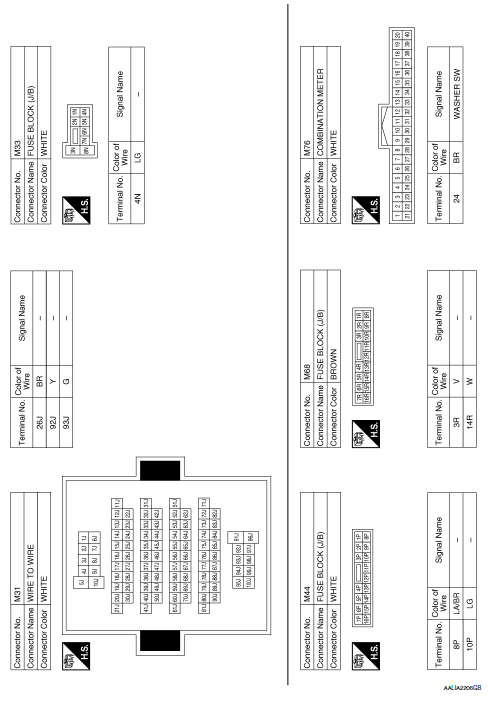

Wiring Diagram

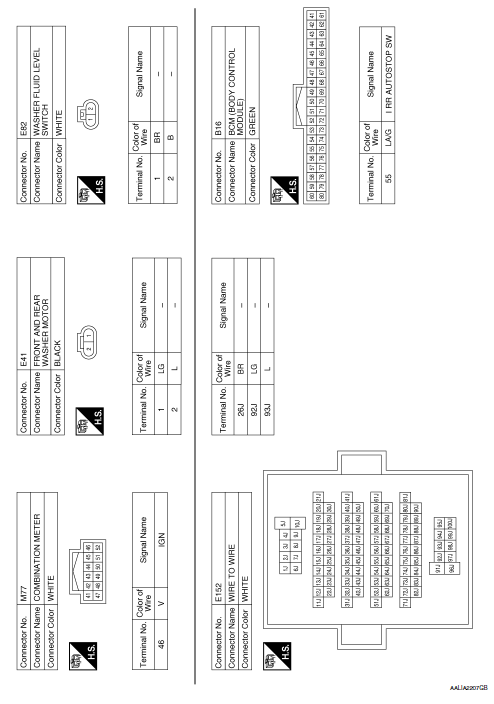

Wiring Diagram

Wiring Diagram

Front wiper and washer system
Wiring Diagram ...

Basic inspection
DIAGNOSIS AND REPAIR WORKFLOW Work Flow WORK FLOW DETAILED FLOW 1. REVIEW CUSTOMER COMPLAINT Review customer complaint. Try to obtain detailed information about the conditions when the sympto ...
