Nissan Rogue Service Manual: Front wiper and washer system

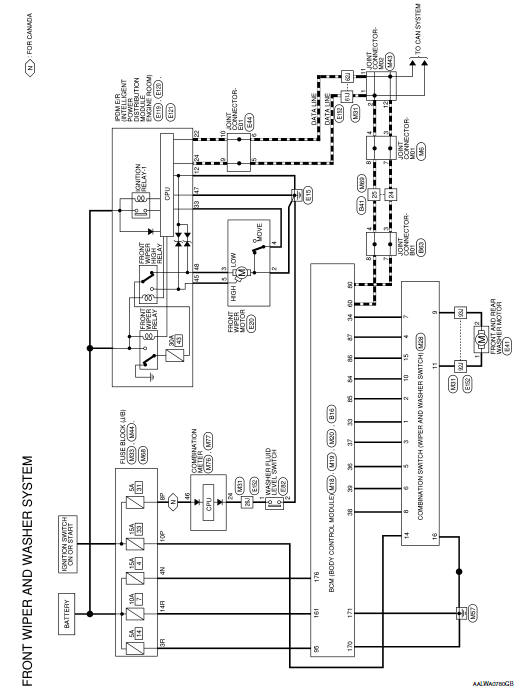

Wiring Diagram

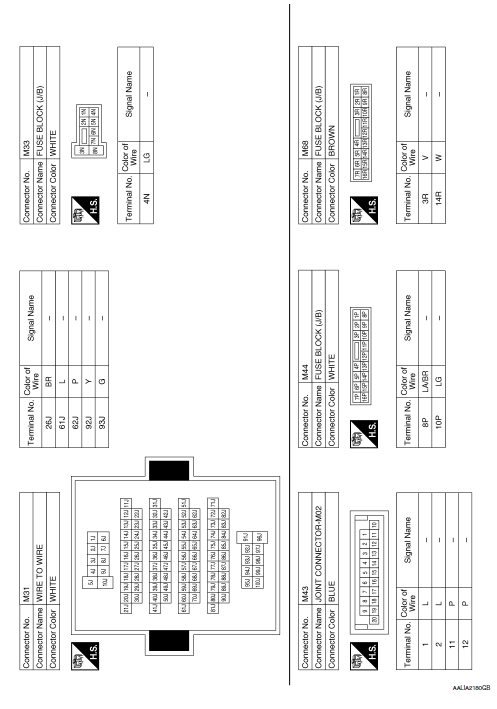

Wiring Diagram

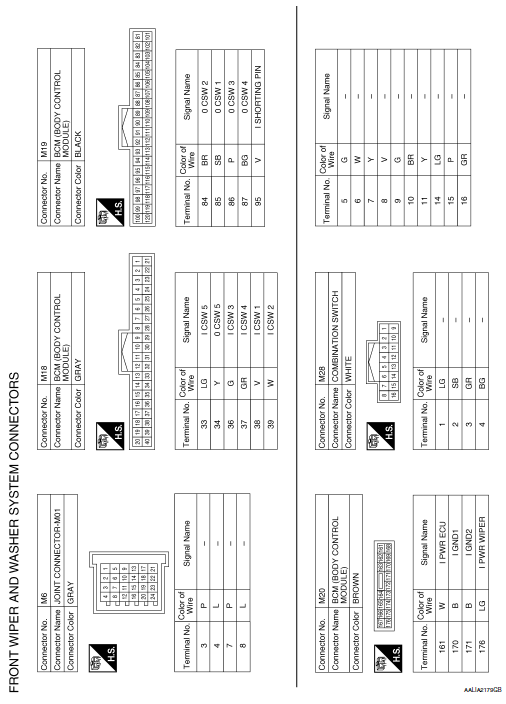

Wiring Diagram

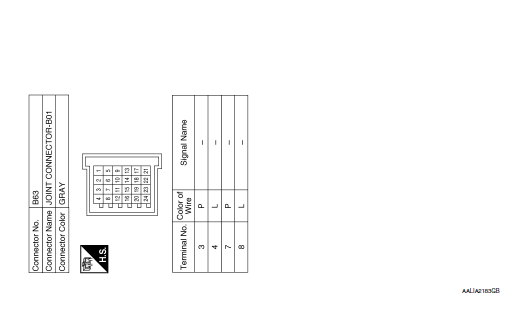

Wiring Diagram

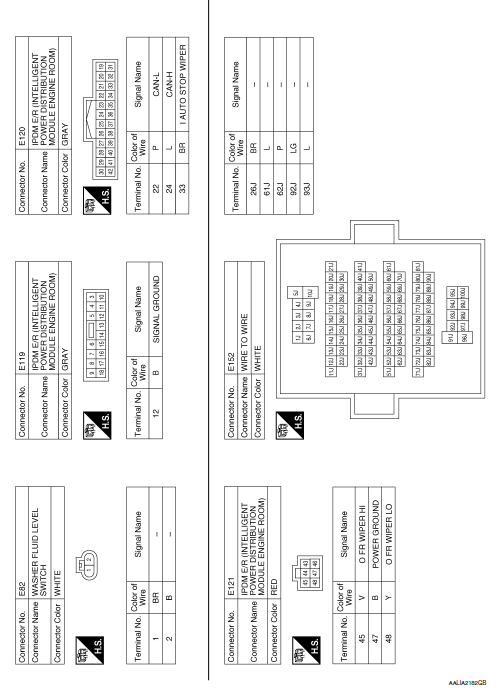

Wiring Diagram

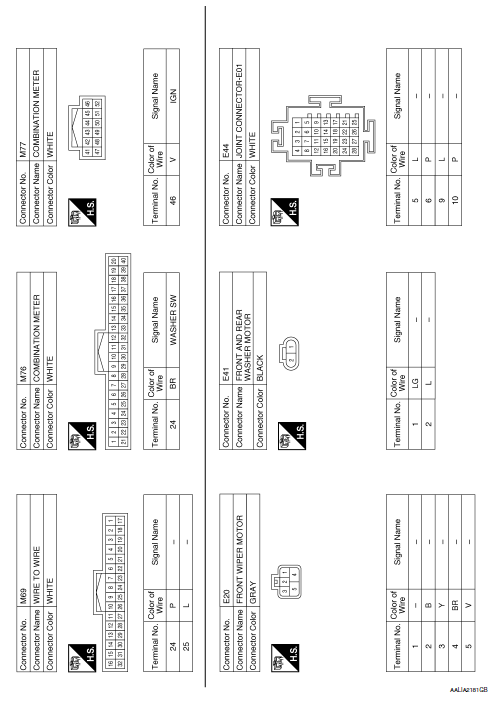

Wiring Diagram

Wiring Diagram

Wiring diagram
...

Rear wiper and washer system
Wiring Diagram ...
