Nissan Rogue Service Manual: Ignition coil

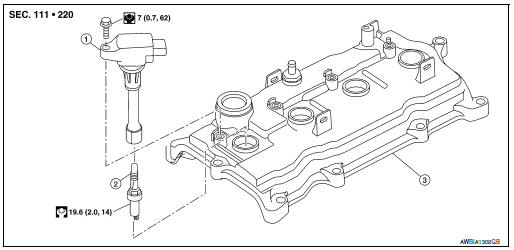

Exploded View

Exploded View

  1. Ignition coil
  2.  Spark plug
  3. Rocker cover

Removal and Installation

REMOVAL

  1.  Remove air duct assembly. Refer to EM-24, "Exploded View" .
  2.  Disconnect the harness connector from the ignition coil.
  3.  Remove the ignition coil.

    CAUTION: Do not drop or shock it.

INSTALLATION

Installation is in the reverse order of removal.

Oil pan and oil strainer
Exploded View Oil pan, upper  Oil filter  Front cover  O-ring  Oil strainer  Oil pan, lower  Washer Drain plug O-ring  Oil level gaug ...

Rocker cover
Oil filler cap  Rocker cover  Rocker cover gasket  Refer to INSTALLATION Engine front Removal and Installation REMOVAL  Remove intake manifold. Refer to ...
