Nissan Rogue Service Manual: EVAP control system pressure sensor

Nissan Rogue Service Manual / Engine / Fuel System / Removal and installation / EVAP control system pressure sensor

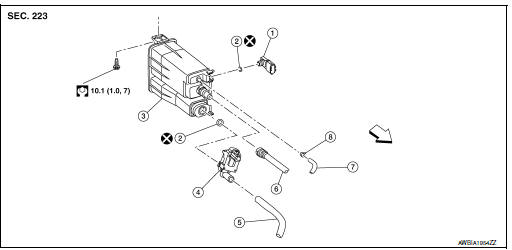

Exploded View

Exploded View

  1. EVAP control system pressure sensor
  2.  O-ring
  3. EVAP canister
  4.  EVAP canister vent control valve
  5. EVAP canister vent control valve hose
  6. EVAP vent line
  7.  EVAP canister purge hose
  8. Clamp

Front

Removal and Installation

NOTE: The EVAP canister system pressure sensor can be removed without removing the EVAP canister.

REMOVAL

  1.  Disconnect EVAP canister purge hose from EVAP canister.
  2.  Disconnect EVAP control system pressure sensor.
  3.  Remove EVAP control system pressure sensor and O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Do not reuse O-ring.
