Nissan Rogue Service Manual: Diagnosis system (BCM) (with intelligent key system)

Nissan Rogue Service Manual / Driver controls / Wiper & Washer / System description / Diagnosis system (BCM) (with intelligent key system)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Direct Diagnostic Mode

Description

Ecu Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration
  • The vehicle specification can be read and saved.
  •  The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.

SYSTEM APPLICATION

BCM can perform the following functions.

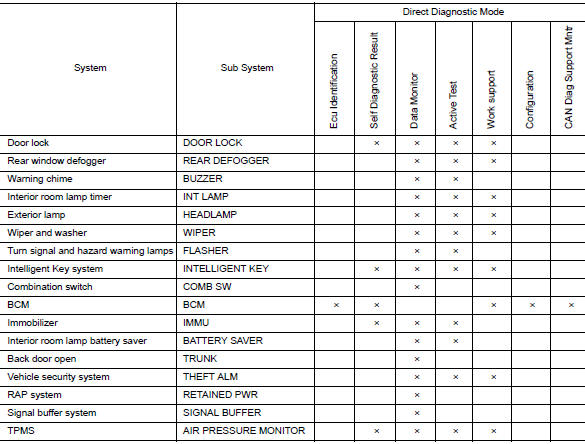

System application

WIPER

WIPER : CONSULT Function (BCM - WIPER)

DATA MONITOR

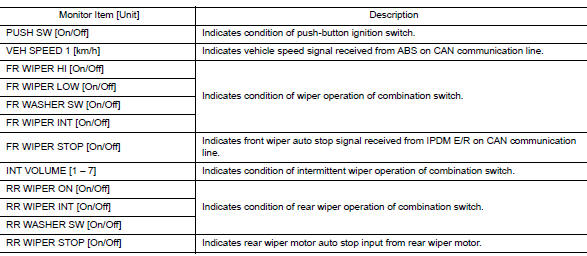

Data monitor

ACTIVE TEST

Active test

WORK SUPPORT

Work support

*: Initial Setting

System
