Nissan Rogue Service Manual: Air cleaner filter

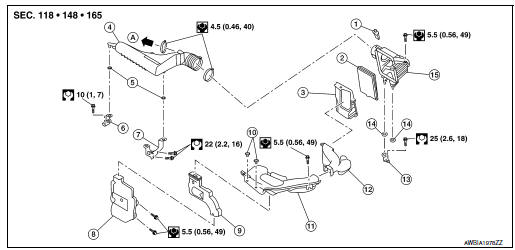

Exploded view

Exploded view

  1. Mass air flow sensor
  2.  Air cleaner filter
  3. Air cleaner case (lower)
  4.  Air duct assembly
  5. Grommet
  6. Resonator bracket (front)
  7.  Resonator bracket (rear)
  8. Resonator
  9. Air duct
  10.  Mounting clip
  11.  Air duct assembly
  12.  Air duct assembly
  13.  Air cleaner bracket
  14.  Grommet
  15.  Air cleaner case (upper)
  1.  To Electric throttle control actuator

Removal and installation

CHANGING THE AIR CLEANER FILTER

  1.  Remove air duct assembly from air cleaner case (upper).
  2.  Open the air cleaner case.
  3.  Remove the air cleaner filter.
  4.  Install a new air cleaner filter.
  5.  Close the air cleaner case.
  6.  Secure the air cleaner case clips.

INSPECTION AFTER REMOVAL

Examine the air cleaner filter for stains, clogging, or damage.

CAUTION: Do not clean the viscous paper type air cleaner filter by blowing as there is a risk of deterioration of its performance.

MAINTENANCE INTERVAL

Refer to MA-7, "Introduction of Periodic Maintenance".
