Nissan Rogue Service Manual: Wiring diagram

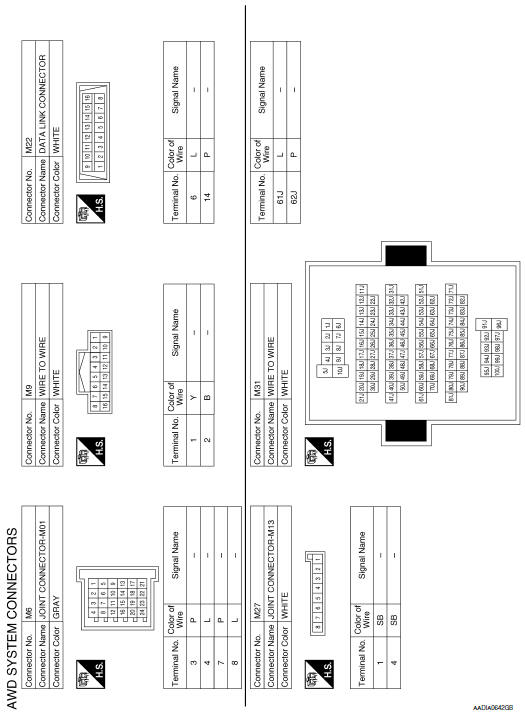

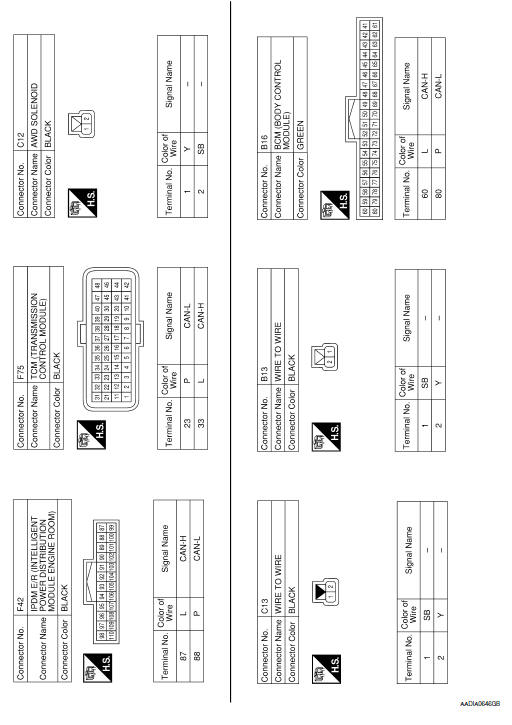

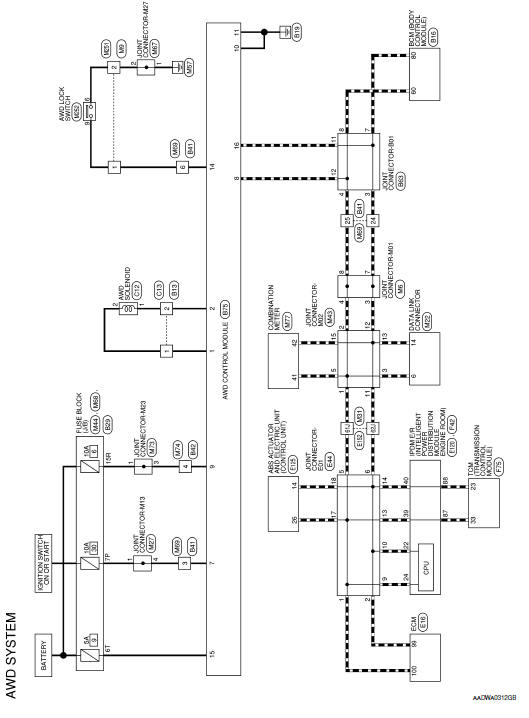

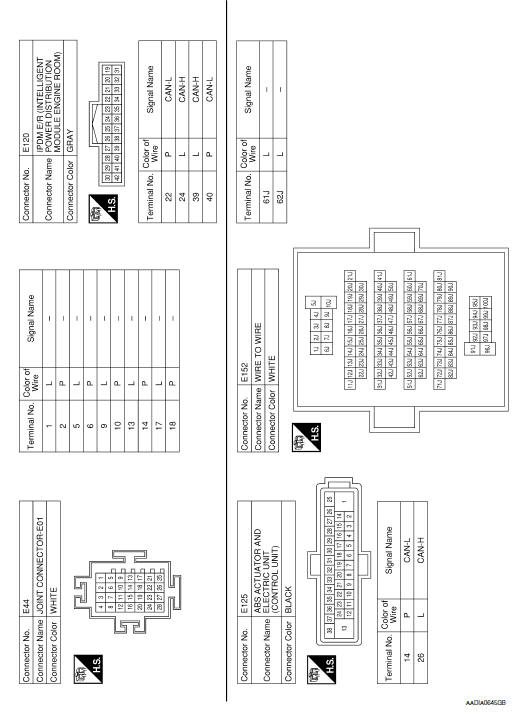

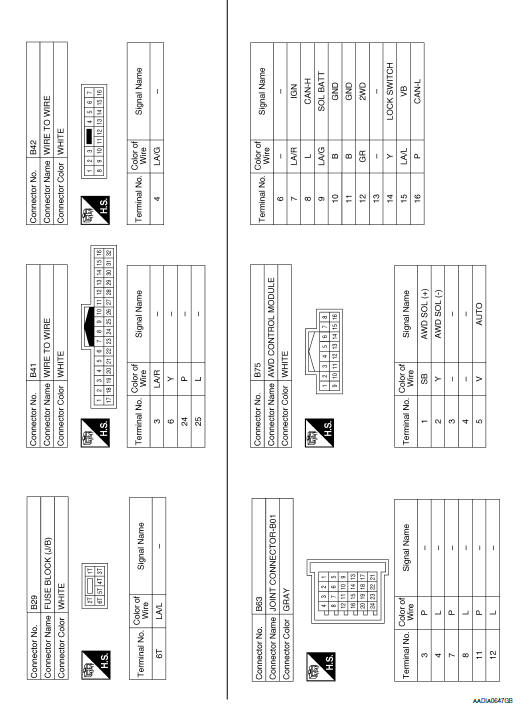

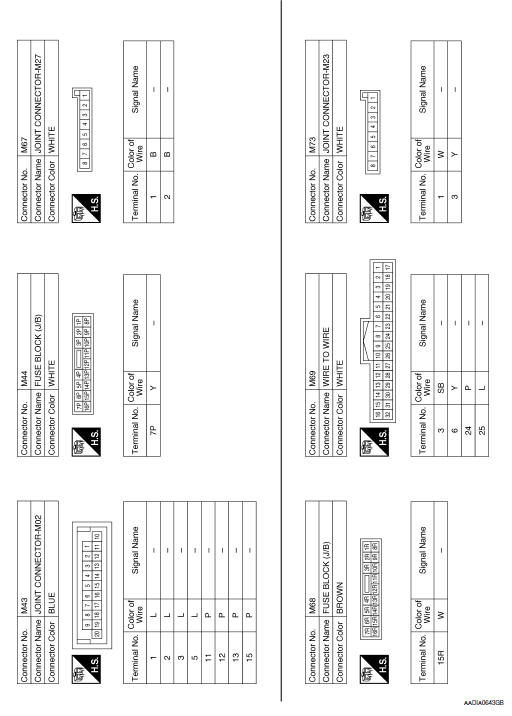

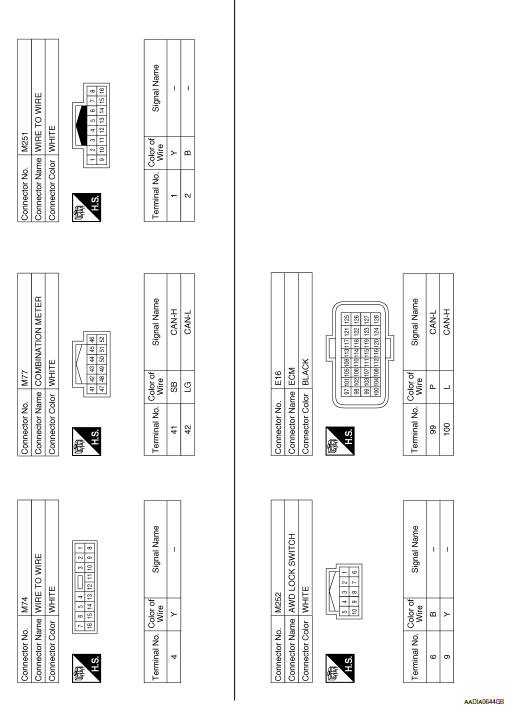

AWD SYSTEM

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

ECU diagnosis information
AWD CONTROL UNIT Reference Value VALUES ON THE DIAGNOSIS TOOL NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this veh ...

Basic inspection
DIAGNOSIS AND REPAIR WORK FLOW Work Flow DETAILED FLOW 1.INTERVIEW FROM THE CUSTOMER Clarify customer complaints before inspection. First of all, perform an interview utilizing DLN-32, "Dia ...
