Nissan Rogue Service Manual: Wiring diagram

BCM

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

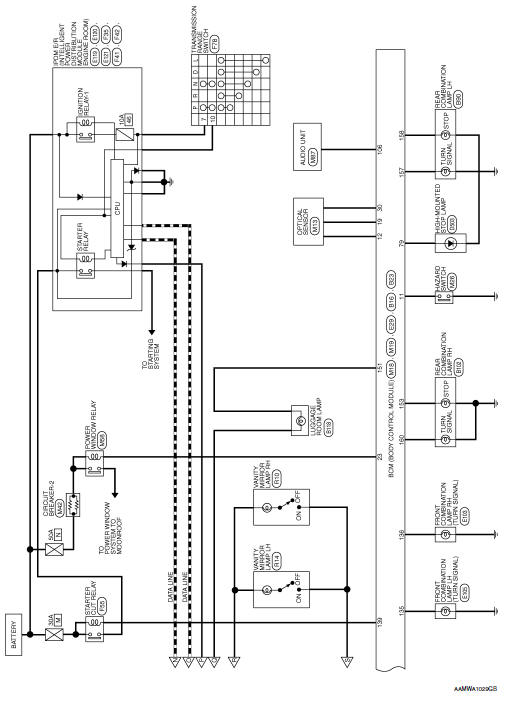

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

ECU diagnosis information
BCM Reference Value NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.  Activate ...

Basic inspection
INSPECTION AND ADJUSTMENT ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Description BEFORE REPLACEMENT When replacing BCM, save or pri ...
