Nissan Rogue Service Manual: Wiring diagram

HORN

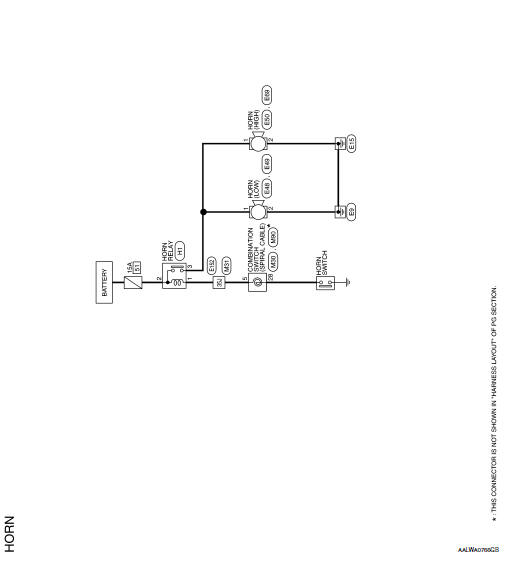

Wiring Diagram

Wiring Diagram

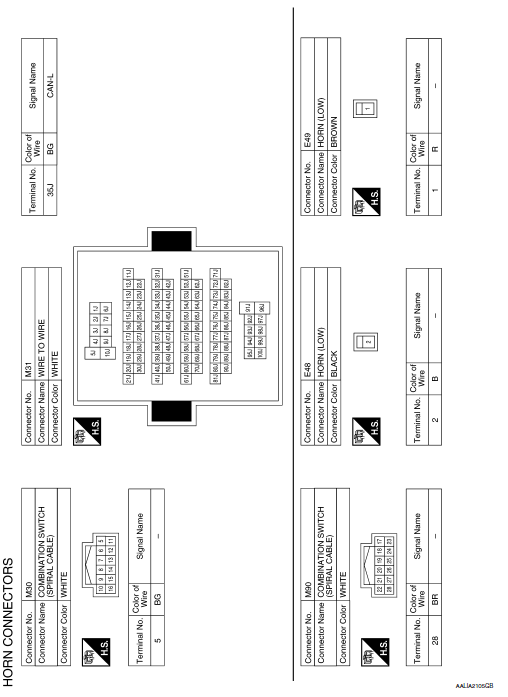

Wiring Diagram

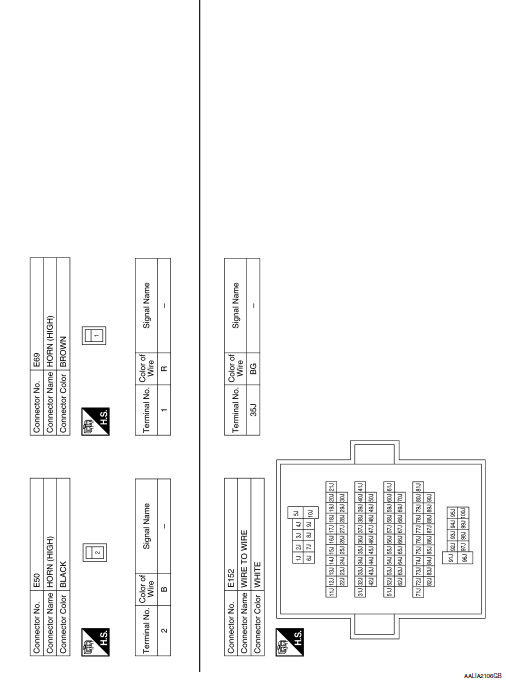

Wiring Diagram

Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONE ...

Removal and installation
HORN Exploded View Horn (LOW) Horn (HIGH) Removal and Installation REMOVAL Horn (LOW)  Remove the front grille. Refer to EXT-23, "Removal and Installation". &n ...
