Nissan Rogue Service Manual: Unit removal and installation
TRANSAXLE ASSEMBLY

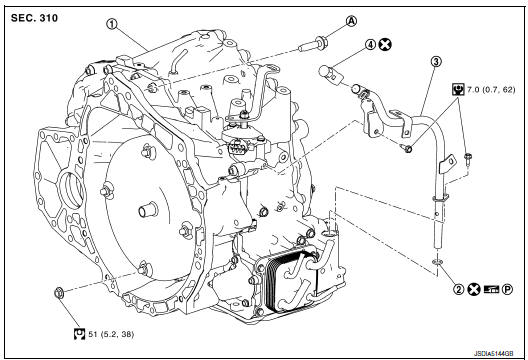

Exploded View
![Exploded View](images/books/293/24/index%2094.jpg)
- Transaxle assembly
- O-ring
- CVT fluid charging pipe
- CVT fluid charging pipe cap
- For the tightening torque, refer to TM-220, "Removal and
Installation".
Always replace after every
disassembly.
: N·m (kg-m, ft-lb)
: N·m (kg-m, in-lb)
: Apply petroleum jelly
Removal and Installation
REMOVAL
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur
from high pressure
engine coolant escaping from the radiator. Wrap a thick cloth around the cap.
Slowly turn it a quarter
turn to allow built-up pressure to escape. Carefully remove the cap by turning
it all the way.
CAUTION:
- Perform when the engine is cold.
- When replacing the TCM and transaxle assembly as a set, replace
the transaxle assembly first and
then replace the TCM. Refer to TM-82, "Description".
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings
to prevent fluid from spilling.
- Remove engine and transaxle assembly. Refer to EM-81, "Removal and
Installation (FWD)" (FWD) or
EM-85, "Removal and Installation (AWD)" (AWD).
- Remove the CVT water hoses from engine side. Refer to TM-212,
"Removal and Installation".
- Remove the transaxle to engine and engine to transaxle bolts.
- Separate the engine from the transaxle and remove the engine from
the front suspension member. Refer
to EM-81, "Removal and Installation (FWD)" (FWD) or EM-85, "Removal and
Installation (AWD)" (AWD).
NOTE:
Using paint, put matching marks on the drive plate and torque converter when
removing the torque converter
to drive plate nuts.
- Remove following parts from transaxle assembly (if necessary).
- Control cable bracket (Refer to TM-197, "Exploded View".)
- Air breather hose (Refer to TM-204, "Exploded View".)
- CVT water hoses and heater thermostat (Refer to TM-217, "Exploded
View".)
- Charging pipe and O-ring
INSTALLATION
Installation is in the reverse order of removal.
NOTE:

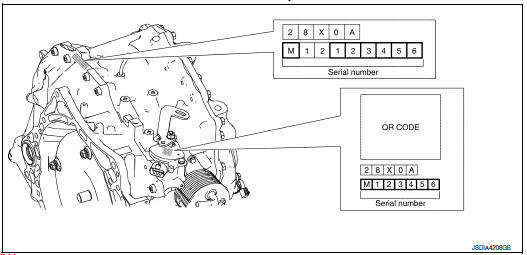

Write down the serial number of the new transaxle assembly.
![Installation](images/books/293/24/index%2096.jpg)
CAUTION:
- When replacing an engine or transaxle you must make sure any
dowels are installed correctly during
re-assembly
- Improper alignment caused by missing dowels may cause
vibration, oil leaks or breakage of drive
train components.
- Do not reuse O-rings or copper sealing washers.
- When turning crankshaft, turn it clockwise as viewed from the
front of the engine.
- When tightening the nuts for the torque converter while
securing the crankshaft pulley bolt, be sure
to confirm the tightening torque of the crankshaft pulley bolt. Refer to
EM-45, "Removal and Installation".
- After converter is installed to drive plate, rotate crankshaft
several turns to check that CVT rotates
freely without binding.
- When installing the CVT to the engine, align the matching mark
on the drive plate with the matching
mark on the torque converter.
- When installing the drive plate to torque converter nuts, tighten
them temporarily. then tighten the nuts to the
specified torque.

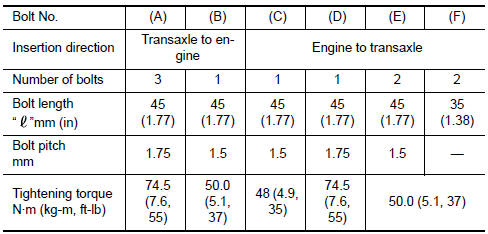

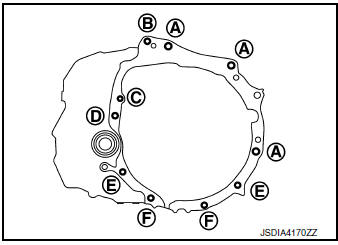

- Install the transaxle assembly and engine assembly mounting bolts
according to the following standards.
![Installation](images/books/293/24/index%2097.jpg)
![Installation](images/books/293/24/index%2098.jpg)
Inspection and Adjustment
INSPECTION BEFORE INSTALLATION

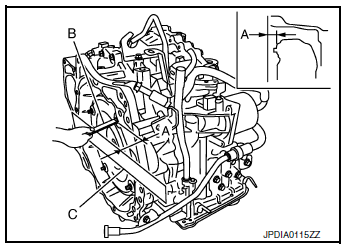

After inserting a torque converter to the CVT, check dimension (A)
with in the reference value limit.
![Inspection before installation](images/books/293/24/index%2045.gif)
B : Scale
C : Straightedge
Dimension (A) : Refer to TM-226, "Torque Converter".
INSPECTION AFTER INSTALLATION
Check the following items:
- CVT fluid leakage, refer to TM-190, "Inspection".
- For CVT position, refer to TM-196, "Inspection".
- Start the engine and check for coolant leakage from the parts
which are removed and reinstalled.
ADJUSTMENT AFTER INSTALLATION
- Adjust the CVT fluid level. Refer to TM-192, "Adjustment".
- Perform "ADDITIONAL SERVICE WHEN REPLACE TRANSAXLE ASSEMBLY".
Refer to TM-84, "Description".
Description
Replace the O-ring if oil leakage or exudes from the plug.
Exploded View
Transaxle assembly
O-ring
Plug
: Always replace after every
disassembly.
: N·m (kg-m, ft-lb) ...
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL
Exploded View
Torque converter
O-ring
Converter housing oil seal
Transaxle assembly
: Always replace after every
disassembly.
: A ...
