System Description

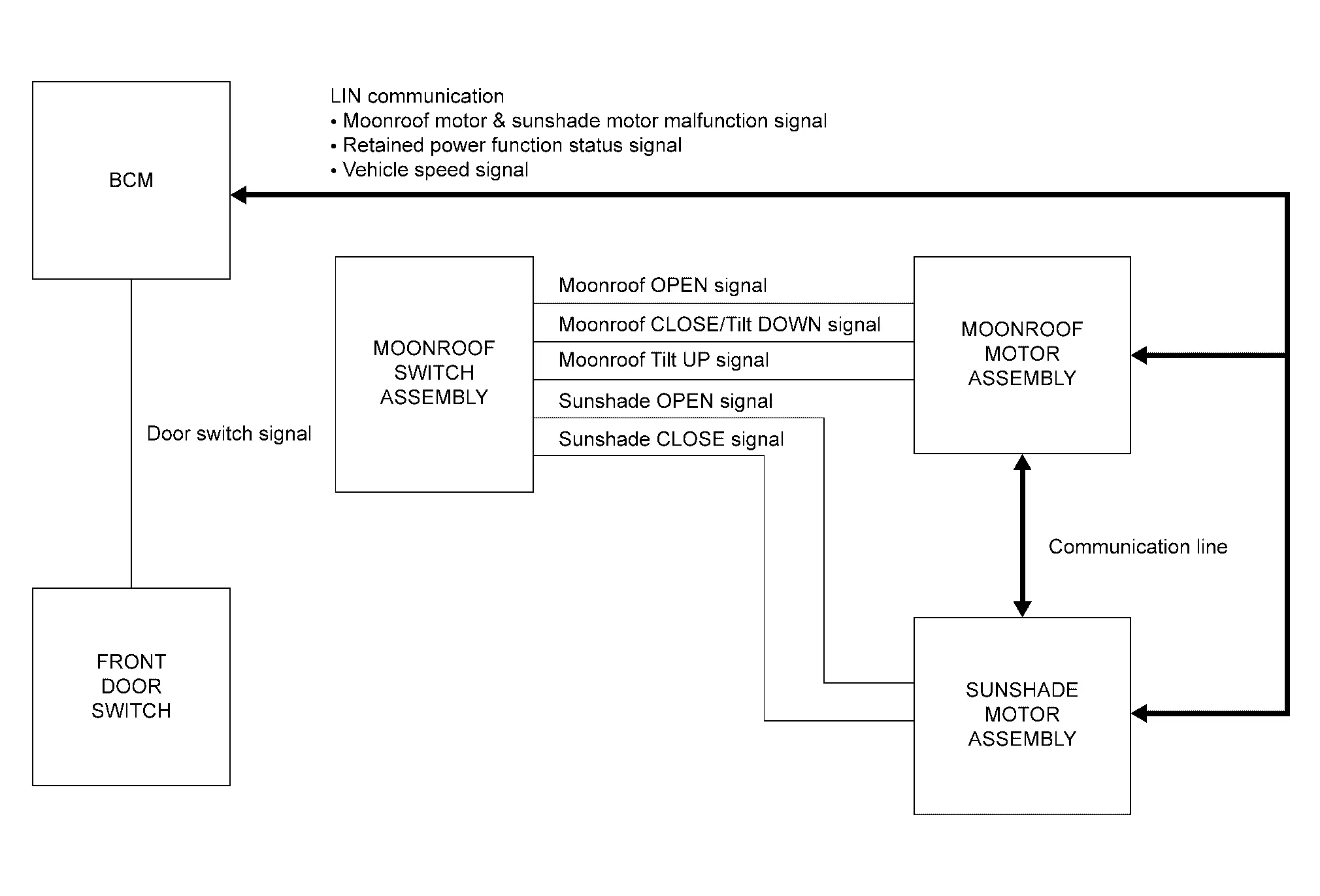

SYSTEM DIAGRAM

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table:

MOONROOF SYSTEM

• The moonroof motor assembly receives the signal from the moonroof switch assembly to operate the moonroof, and transmits the signal from the moonroof switch assembly to the sunshade motor assembly via communication line.

• The sunshade motor assembly operates the sunshade with the operate signal received from the moonroof switch assembly or the communication line received from the moonroof motor assembly.

OPERATION DESCRIPTION

The moonroof and sunshade operate as per the following by operating the moonroof switch and susnahde switch:

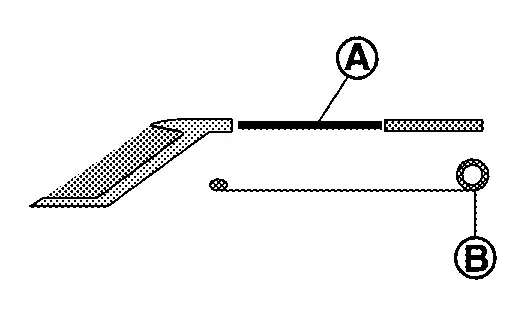

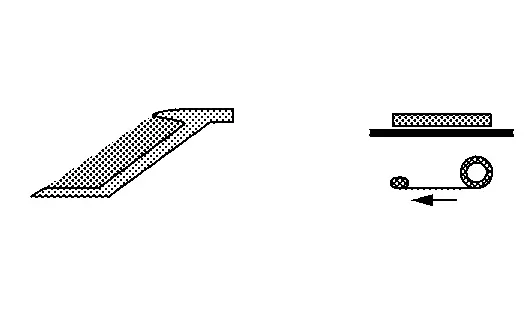

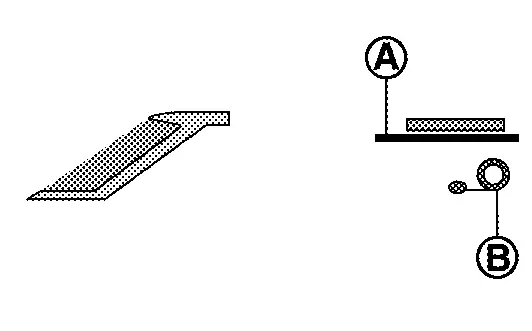

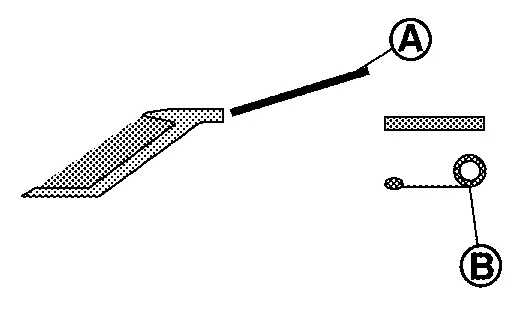

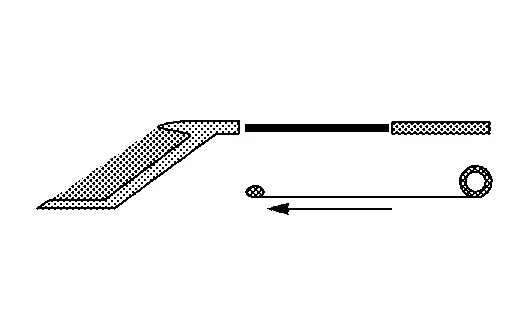

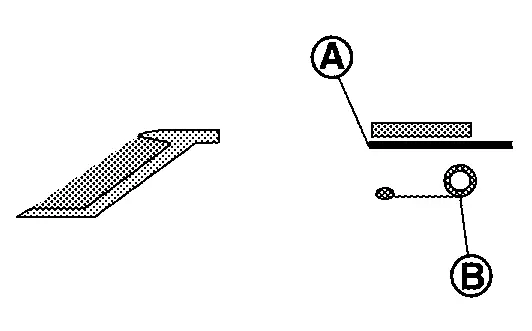

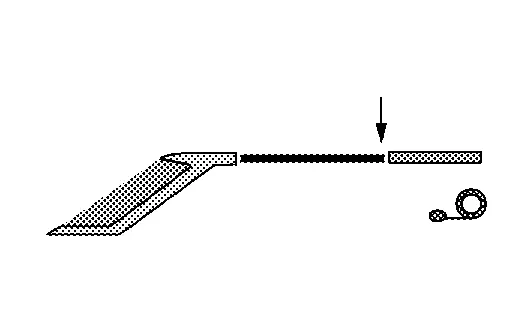

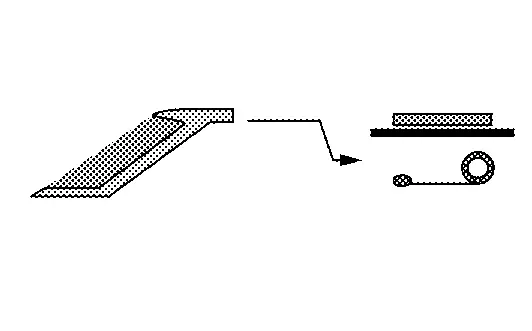

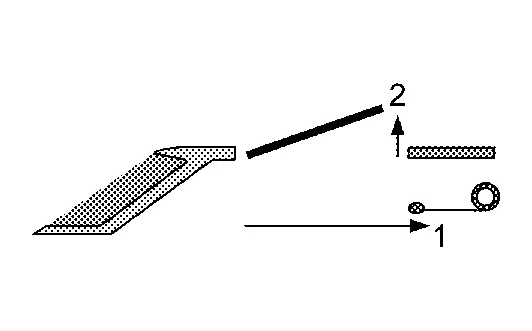

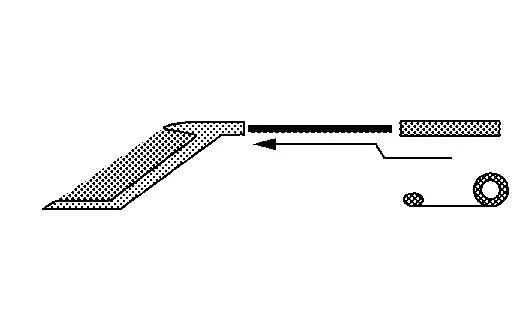

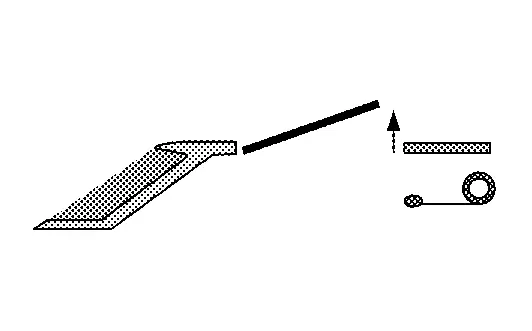

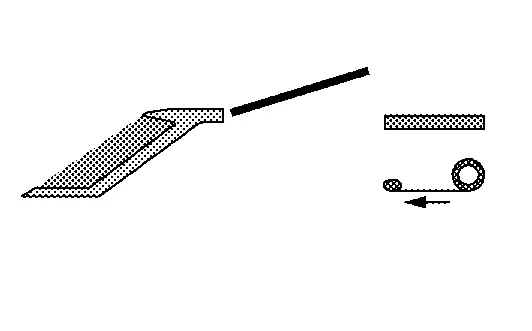

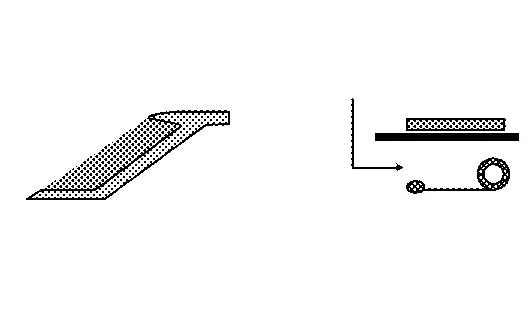

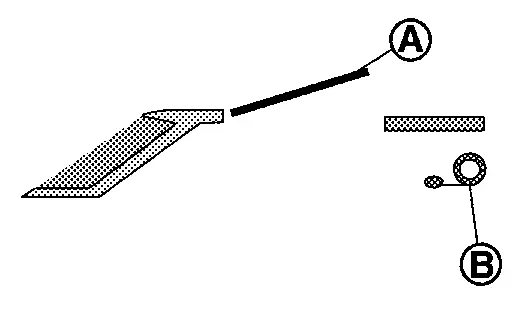

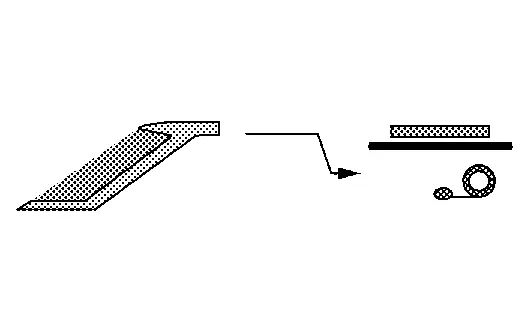

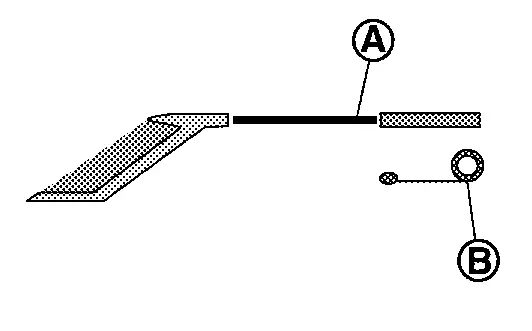

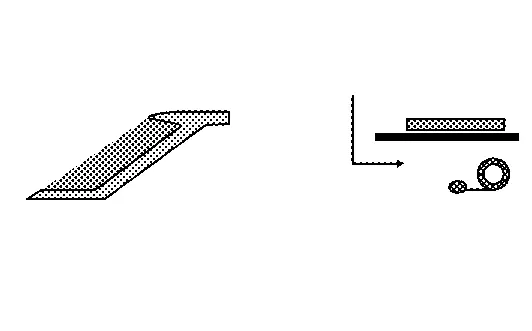

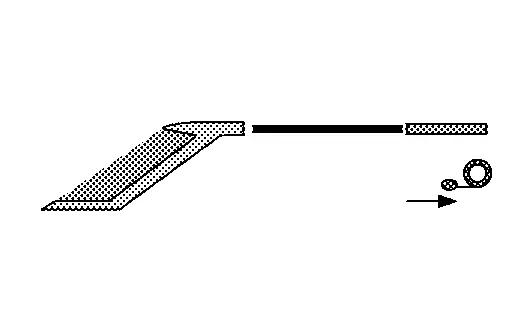

Before operation	Switch operation	Moonroof and sunshade action	After operation

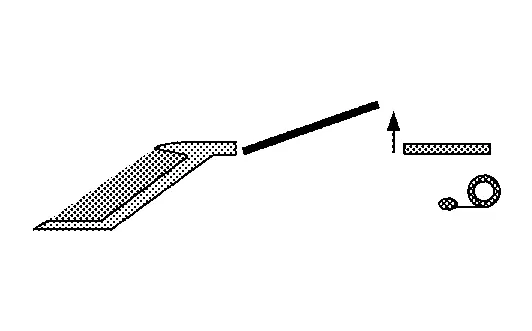

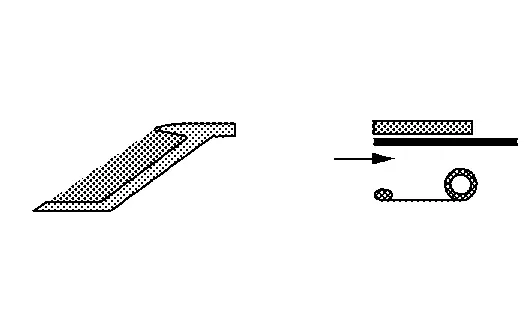

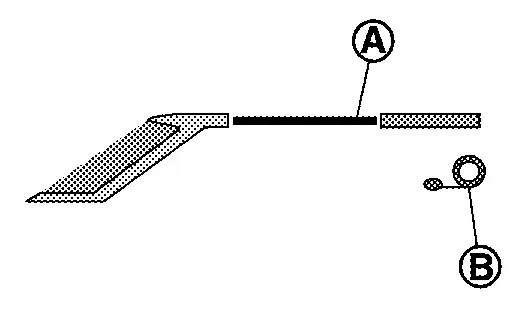

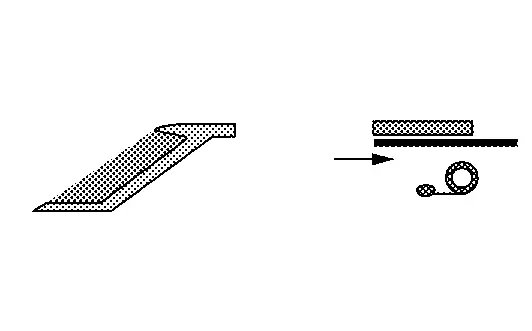

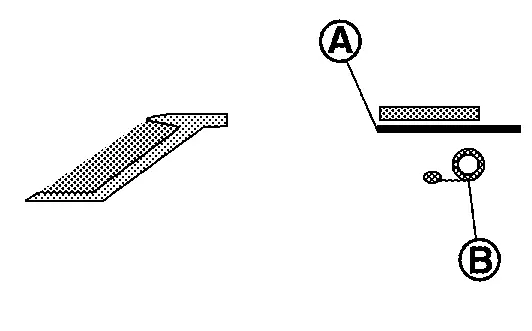

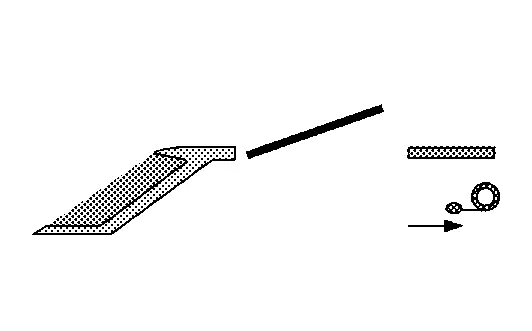

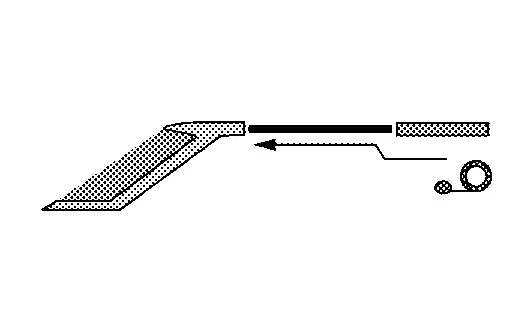

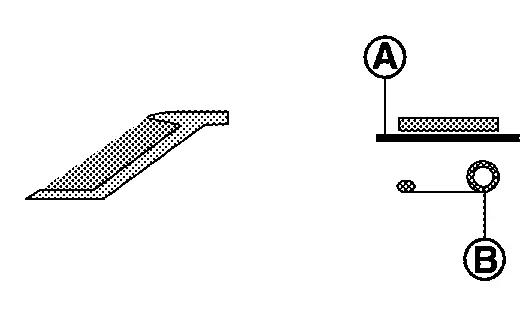

Moonroof: Fully-closed Sunshade: Fully-closed : Moonroof : Sunshade	Moonroof switch PUSH	Sunshade: OPEN (Half-open) Moonroof: Tilt up
	Sunshade switch OPEN	Sunshade: OPEN (Half-open)
	Moonroof switch OPEN	Sunshade: OPEN (Half-open) Moonroof: OPEN (Comfort position)
	Moonroof switch CLOSE Sunshade switch CLOSE	Not action	—
Moonroof: Tilt up Sunshade: Fully-open : Moonroof : Sunshade	Moonroof switch OPEN	Moonroof: Comfort position
	Moonroof switch CLOSE	Moonroof: Tilt down
	Sunshade switch CLOSE	Sunshade: CLOSE (Half-open)
	Moonroof switch PUSH Sunshade switch OPEN	Not action	—
Moonroof: Tilt up Sunshade: Half-open : Moonroof : Sunshade	Moonroof switch OPEN	Moonroof: Comfort position
	Moonroof switch CLOSE	Moonroof: CLOSE
	Sunshade switch OPEN	Sunshade OPEN (Fully-open)
	Moonroof switch PUSH Sunshade switch CLOSE	Not action	—
Moonroof: Fully-close Sunshade: Fully-open : Moonroof : Sunshade	Moonroof switch PUSH	Moonroof: Tilt up
	Moonroof switch OPEN	Moonroof: Comfort position
	Sunshade switch CLOSE	Sunshade: CLOSE (Half-open)
	Moonroof CLOSE Sunshade switch OPEN	Not action	—
Moonroof: Fully-close Sunshade: Half-open : Moonroof : Sunshade	Moonroof switch PUSH	Moonroof: Tilt up
	Moonroof switch OPEN	Moonroof: Comfort position
	Sunshade switch OPEN	Sunshade: OPEN (Fully-open)
	Sunshade switch CLOSE	Sunshade: CLOSE
	Moonroof switch CLOSE	Not action	—
Moonroof: Comfort position Sunshade: Fully-open : Moonroof : Sunshade	Moonroof switch OPEN	Moonroof: OPEN (Fully-open)
	Moonroof switch CLOSE	Moonroof: CLOSE
	Sunshade switch CLOSE	Sunshade: CLOSE (Half-open)
	Moonroof switch PUSH Sunshade switch OPEN	Not action	—
Moonroof: Comfort position Sunshade: Half-open : Moonroof : Sunshade	Moonroof switch OPEN	Moonroof: OPEN (Fully-open)
	Moonroof switch CLOSE	Moonroof: CLOSE
	Sunshade switch OPEN	Sunshade: OPEN (Fully-open)
	Moonroof switch PUSH Sunshade switch CLOSE	Not action	—
Moonroof: Fully-open Sunshade: Fully-open : Moonroof : Sunshade	Moonroof switch CLOSE	Moonroof: CLOSE (Fully-close)
	Sunshade switch CLOSE	Sunshade: CLOSE (Half-open)
	Moonroof switch PUSH Moonroof switch OPEN Sunshade switch OPEN	Not action	—
Moonroof: Fully-open Sunshade: Half-open : Moonroof : Sunshade	Moonroof switch CLOSE	Moonroof: CLOSE (Fully-close)
	Sunshade switch OPEN	Sunshade: OPEN (Fully-open)
	Moonroof switch PUSH Moonroof switch OPEN Sunshade switch CLOSE	Not action	—

AUTO OPERATION

The moonroof and sunshade operates automatically by operating the moonroof switch assembly.

NOTE:

• If initialization setting is not performed, the automatic function does not operate.

• During automatic operation, when the moonroof switch assembly is operated, automatic operation can be stopped.

RETAINED POWER FUNCTION

Retained power operation is an additional power supply function that enables the moonroof system to operate for 45 seconds after ignition switch is placed OFF.

RETAINED POWER FUNCTION CANCEL CONDITIONS

Any of the following conditions is satisfied:

• Front door CLOSE (door switch OFF)→OPEN (door switch ON)

• When ignition switch is placed ON again.

• When timer time passes. (45 seconds)

LIN COMMUNICATION

Moonroof motor assembly, sunshade motor assembly and BCM transmit and receive signal by LIN communication.

ANTI-PINCH FUNCTION

• The moonroof motor assembly monitors the moonroof condition using the signals from moonroof motor. When moonroof motor assembly detects an interruption during auto operation (close or tilt down operation), moonroof motor will tilt up or open [5.91 in (150 mm) or more] moonroof.

• The sunshade motor assembly monitors the sunshade condition using the signals from sunshade motor. When sunshade motor assembly detects an interruption during auto close operation, sunshade motor will open [5.91 in (150 mm) or more] sunshade.

CAUTION:

There are some small distances immediately before the closed position which cannot be detected.

NOTE:

• If initialization setting is not performed, the anti-pinch function does not operate.

• When the distance between pinching position and fully-open position is less than 5.91 in (150 mm), moonroof or sunshade reverses to fully-open position.
