NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

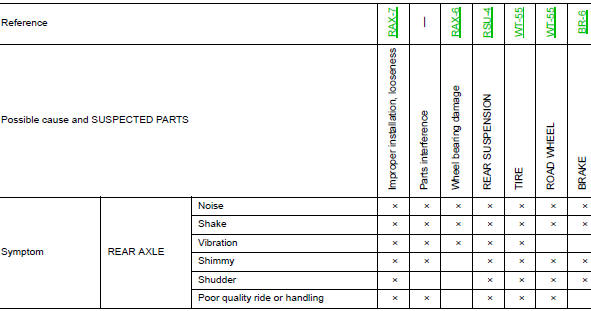

NVH Troubleshooting Chart
Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.
×: Applicable
Side curtain air bag module
Exploded View
Side curtain air bag module
Fron
Removal and Installation
WARNING:
Before servicing the SRS, turn ignition switch OFF, disconnect
both battery terminals then wait at
least three minutes.
Always work from the side of air bag module. Do not work in
...
Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”,
used along
with a front seat belt, helps to reduce the risk or severity of injury to the
...
Wind deflector
Removal and Installation
REMOVAL
Remove headlining Refer to INT-30, "Removal and Installation".
Open the glass lid to view the wind deflector.
Use suitable tool (A) release pawl on LH/RH side of wind deflector.
: Pawl
Release wind deflector retainer (1) ...
