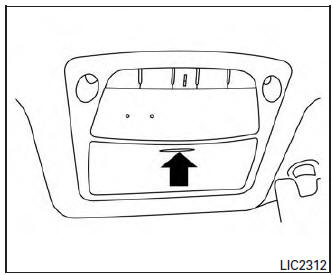

Sunglasses holder
To open the sunglasses holder 1 , push and release.
Only store one pair of sunglasses in the holder.
WARNING Keep the sunglasses holder closed while driving to prevent an accident. |
