Removal and Installation
REMOVAL

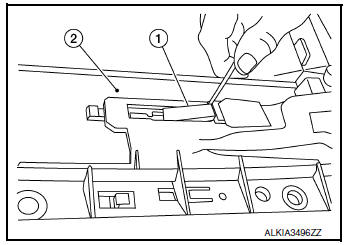

: Pawl
INSTALLATION
Installation is in the reverse order of removal.
Preparation
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name
Description
—
(J-46532)
Brake height tool
Measuring brake pedal height
38-PFM92
( — )
ProCutâ„¢ PFM Serie ...
Side air spoiler
Exploded View
Side air spoiler
Clip
Removal and Installation
REMOVAL

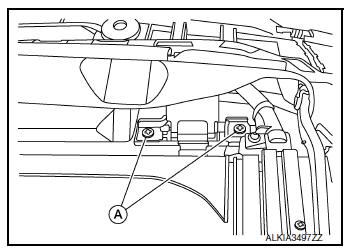

Remove side air spoiler bolts (A).
1: Side air spoiler
B: Clips

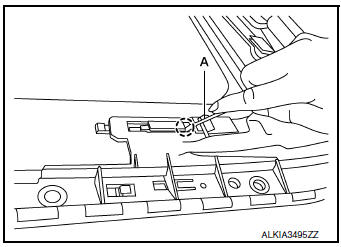

Release clips using suitable tool (A) and remove side air spoiler
(1).
: Clips
INSTALLATION
Installation is in the rev ...
CAN system (type 6)
MAIN LINE BETWEEN IPDM-E AND DLC CIRCUIT
Diagnosis Procedure
1.CHECK CONNECTOR
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal.
Check the following terminals and connectors for damage, bend and
loose connection (connector side
an ...
