Nissan Rogue Service Manual: Moonroof switch
Removal and Installation
REMOVAL

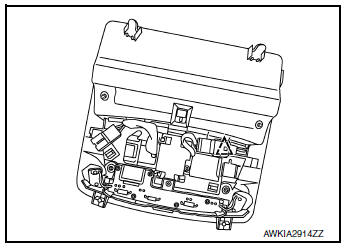

- Remove map lamp assembly. Refer to INL-55, "Removal and Installation".
- Using a suitable tool release clip from harness connector.
: Clip

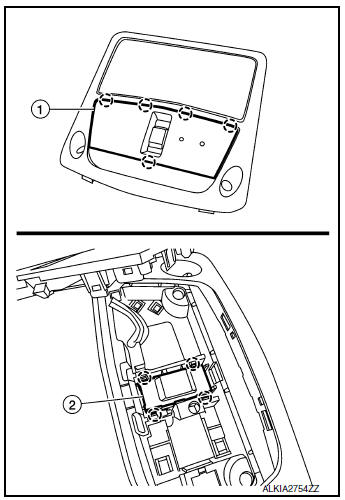

- Using a suitable tool release pawls and remove moonroof switch finisher (1).
- Using a suitable tool release pawls and remove moonroof switch
(2) from the front room/map lamp.
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
Wind deflector
Removal and Installation
REMOVAL
Remove headlining Refer to INT-30, "Removal and Installation".
Open the glass lid to view the wind deflector.
Use suitable tool (A ...
