BODY ALIGNMENT

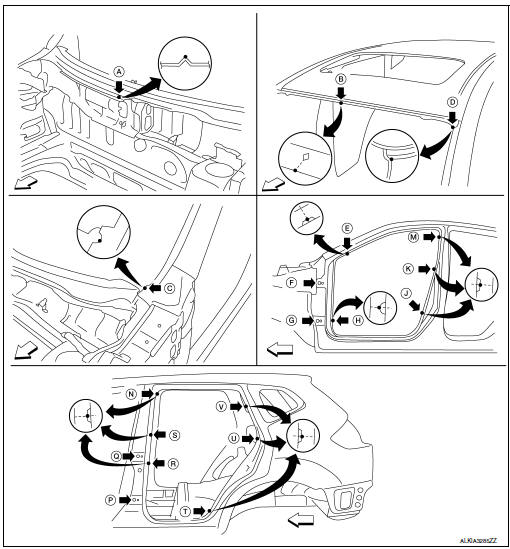

Body Center Marks
mark has been placed on each part of the body to indicate the vehicle center. When repairing parts damaged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective repair will be possible by using these marks together with body alignment specifications.
Front
Description
- All dimensions indicated in the figures are actual.
- When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
- When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
- Measurements should be taken at the center of the mounting holes.
- An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side is symmetrically the same value.

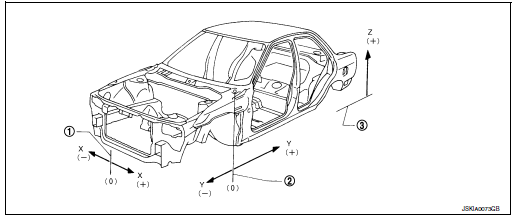

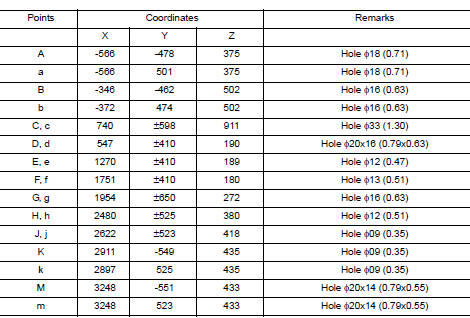

- The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″ and ″Z″.
- ″Z″: Imaginary base line [200 mm (7.87 in) below datum line (″0Z″ at design plan)]
- Vehicle center
- Front axle center
- Imaginary base line

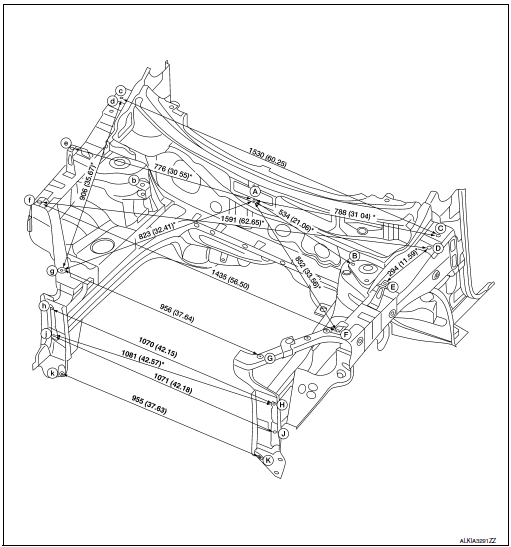

Engine Compartment
MEASUREMENT

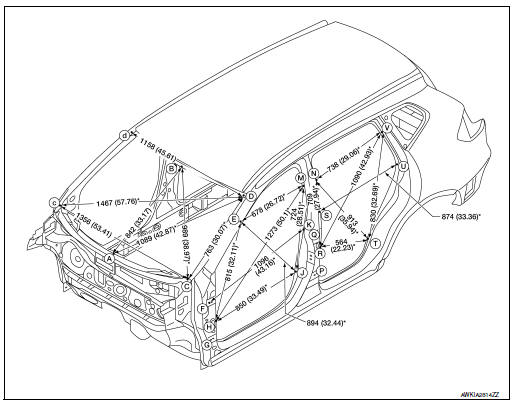

Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the right and left hand of the vehicle.
«The others»

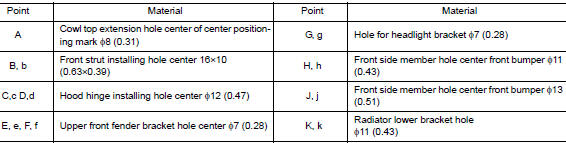

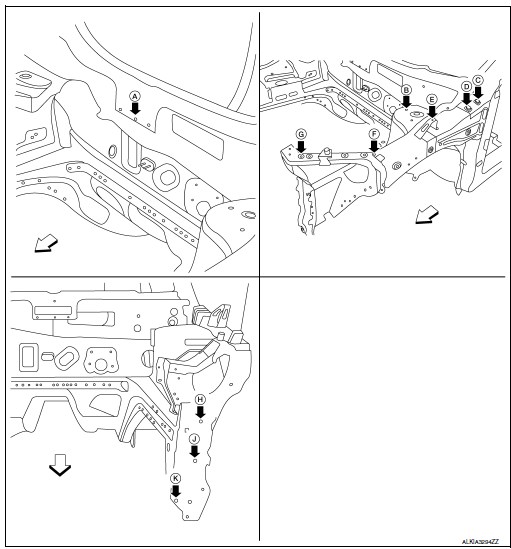

MEASUREMENT POINTS
Front
Underbody

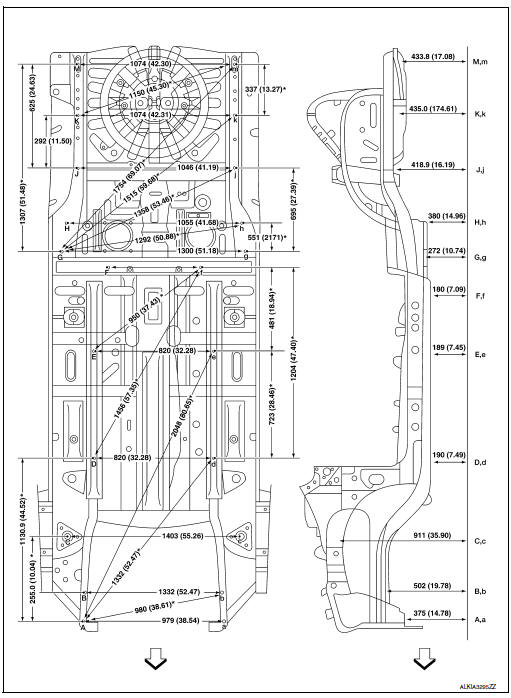

MEASUREMENT

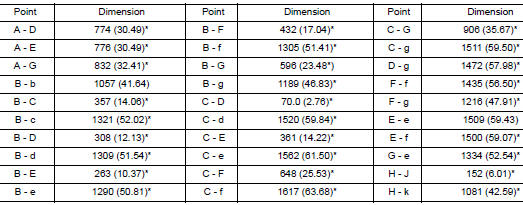

Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the right and left hand of the vehicle.
Front

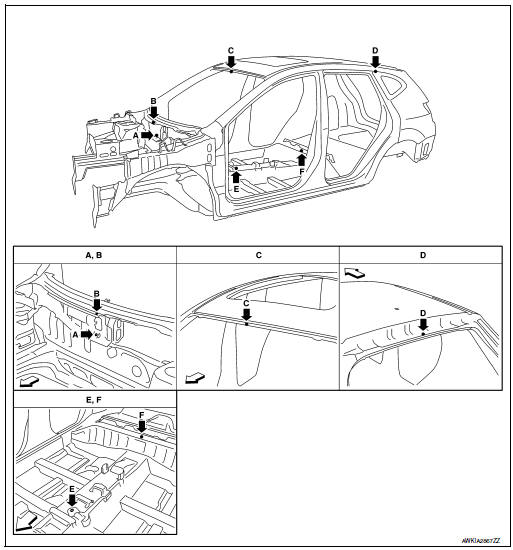

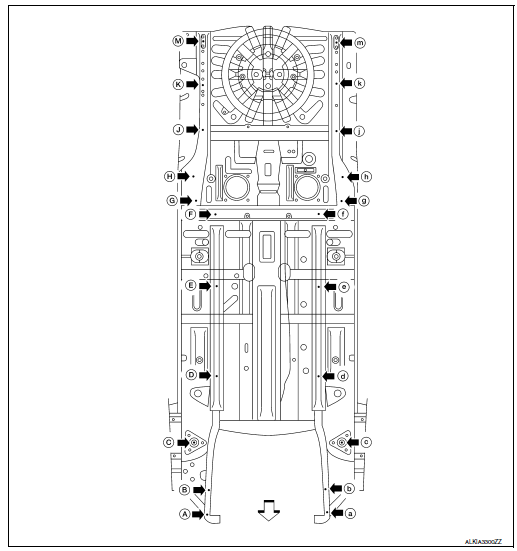

MEASUREMENT Points
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the right and left hand of the vehicle.

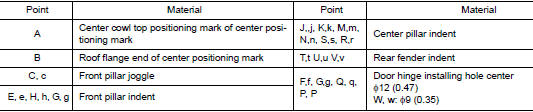

MEASUREMENT POINTS
Front
Passenger Compartment
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the right and left hand of the vehicle.
MEASUREMENT POINTS
Front

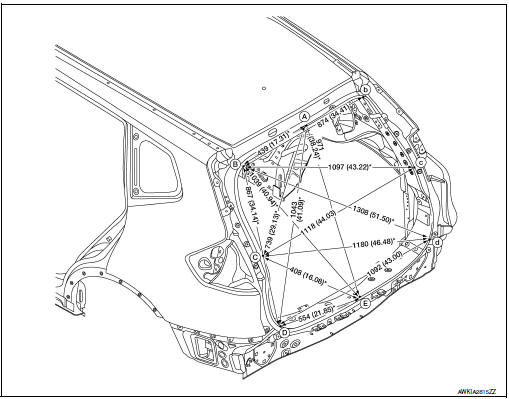

Rear Body

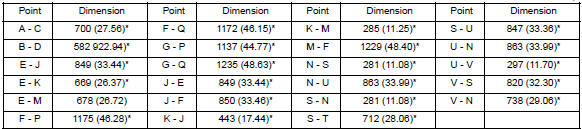

MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the right and left hand of the vehicle.

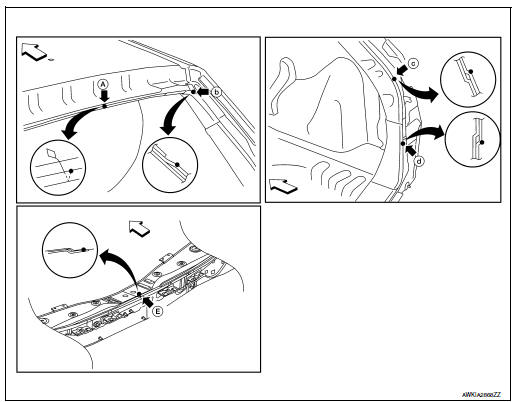

MEASUREMENT POINTS
Front
Replacement operations
Description
This section is prepared for technicians who have attained a high level
of skill and experience in repairing
collision-damaged vehicles and also use modern service tools and equip ...
