Cargo area luggage hooks

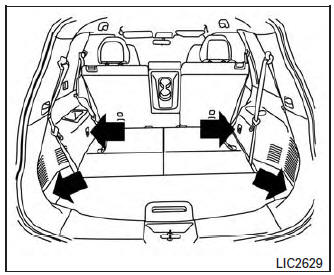

There are luggage hooks located in the cargo area as shown. The hooks can be used to secure cargo with ropes or other types of straps.
Do not apply a total load of more than 6.5 lbs. (29 N) to a single metal floor hook when securing cargo.
WARNING
|
Vacuum lines
Exploded View
Clamp
Vacuum hose
Vacuum tube
Clip
Vacuum hose
To intake manifold
To brake booster
Paint mark
Stamp indicating engine direction
Removal and Installation
REMOVAL
Remove the cowl top. Refer to EXT-25, "Removal and Installati ...
Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”,
used along
with a front seat belt, helps to reduce the risk or severity of injury to the
...
Cooler pipe and hose
Exploded View
Condenser
High-pressure flexible hose
Low-pressure flexible hose
Low-pressure pipe
Heating and cooling unit assembly
High-pressure pipe
Compressor
O-ring
Low-pressure service port
High-pressure service port
LOW-PRESSURE PIP
LOW-PRESSURE P ...
