Nissan Rogue Service Manual: Moonroof motor assembly
Reference Value

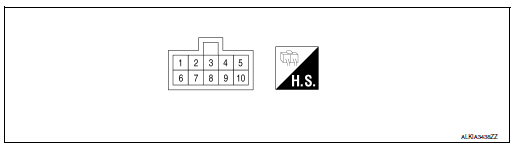

TERMINAL LAYOUT

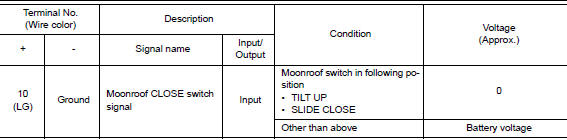

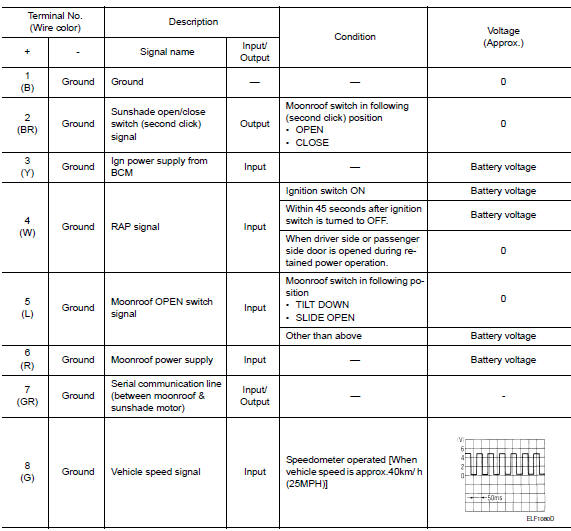

PHYSICAL VALUES
BCM
List of ECU Reference
...
Sunshade motor assembly
Reference Value
TERMINAL LAYOUT
PHYSICAL VALUES
...
Other materials:
Removal and installation
ECM
Removal and Installation
EXPLODED VIEW
1 ECM bracket
2 ECM
: Vehicle front
CAUTION:
Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to EC-136, "Work
Procedure".
REMOVAL
Disconnect the battery negative terminal.
Remove the resonator. Refer to EM-24 ...
Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT
PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the
...
Key switch signal circuit (without intelligent key)
Description
Transmits a key switch signal to the BCM.
Component Function Check
1. CHECK BCM INPUT SIGNAL
Select "Data Monitor" for "BCM" and check the "KEY ON SW" monitor value.
Is the inspection result normal?
YES >> Inspection End.
NO >> Refer ...
