Nissan Rogue Service Manual: Lumbar support system

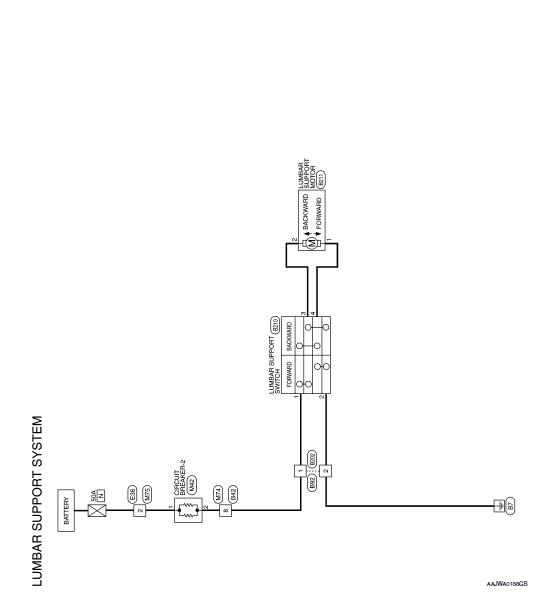

Wiring Diagram

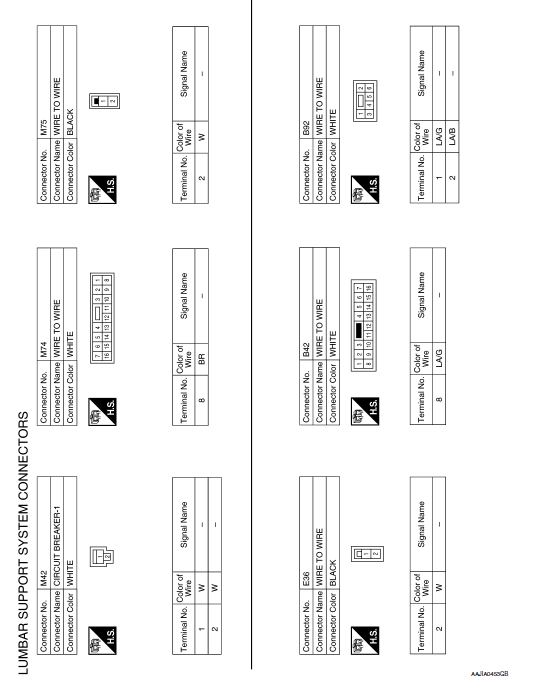

Wiring Diagram

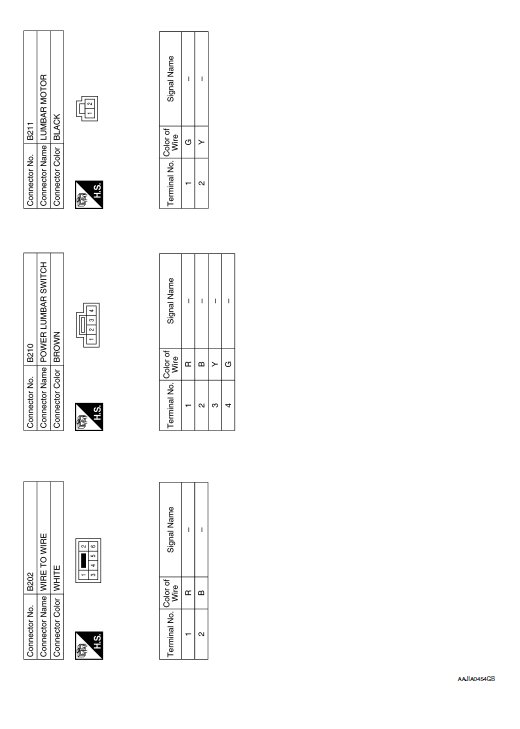

Wiring Diagram

Wiring Diagram

Power seat for passenger side
Wiring Diagram ...

Heated seat system
Wiring Diagram ...

Other materials:

Removal and installation
NATS ANTENNA AMP. Removal and Installation REMOVAL  Remove the steering column covers. Refer to IP-17, "Removal and Installation".  Disconnect the harness connector from the NATS antenna amp.  Release pawls and remove NATS antenna amp. (1) from the ignition sw ...

Structure and operation
Positive Crankcase Ventilation This system returns blow-by gas to the intake manifold. The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake manifold. During partial throttle operation of the engine, the intake manifold sucks the bl ...

DTC/circuit diagnosis
POWER SUPPLY AND GROUND CIRCUIT AUDIO UNIT AUDIO UNIT : Diagnosis Procedure Regarding Wiring Diagram information, refer to AV-27, "Wiring Diagram". 1.CHECK FUSE Check that the following fuses are not blown. Are the fuses blown? YES >> Replace the blown fuse after repairing t ...
