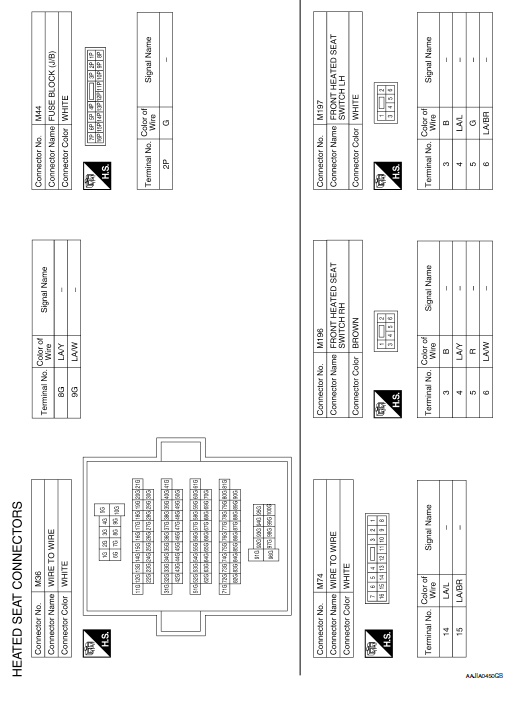

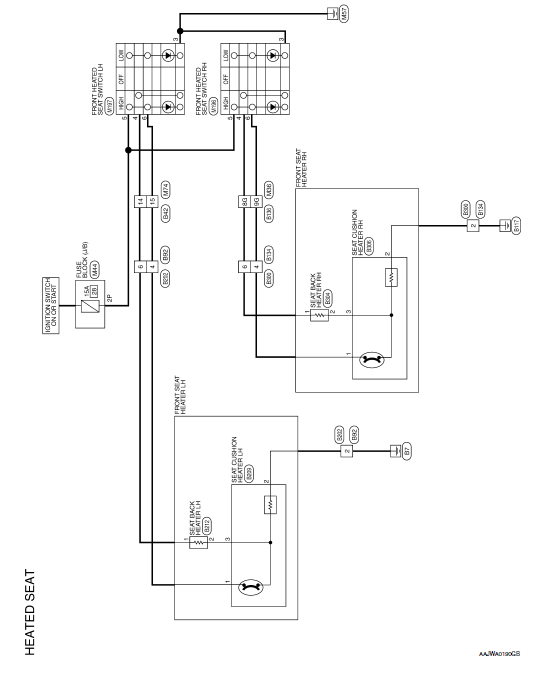

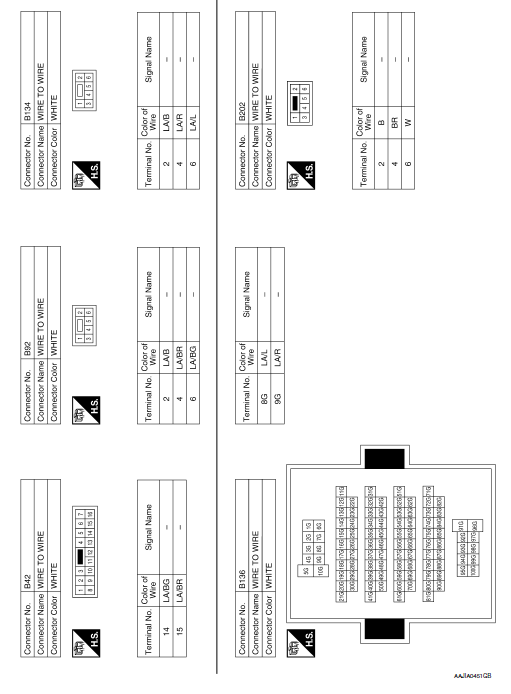

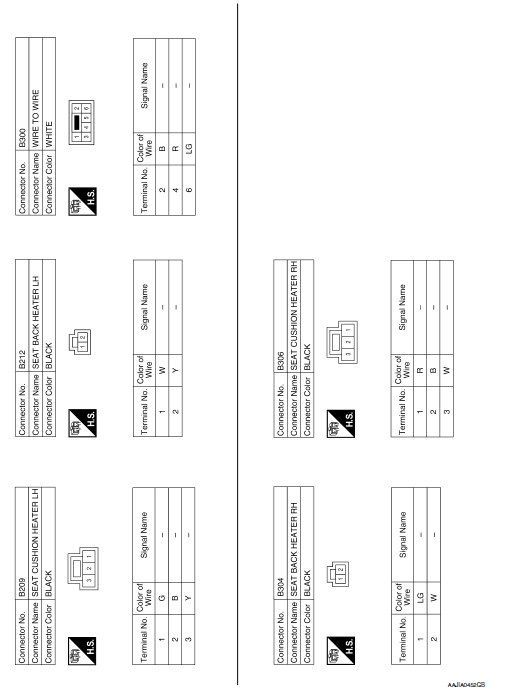

Wiring Diagram
Diagnosis and repair workflow
Work Flow
OVERALL SEQUENCE
DETAILED FLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the
condition and the environment
when the incident/malfunction occurred) using the “Diagnostic Work Sheet”.
(Refer to EC-130, "Diagnos ...
P0443 EVAP canister purge volume control solenoid valve
DTC Description
DTC DETECTION LOGIC
DTC No.
CONSULT screen terms
(Trouble diagnosis content)
DTC detecting condition
P0443
PURG VOLUME CONT/V
(Evaporative emission system purge control
valve circuit)
A
The canister purge flow is detected during the vehicle i ...
Removal and installation
DRIVE PINION OIL SEAL
Exploded View
Rear final drive assembly
Drive pinion oil seal
Electric controlled coupling assembly
Oil seal lip
Always replace after every
disassembly.
: Apply gear oil.
: Apply multi-purpose grease.
Removal and Installation
REMOVAL
Remove ...
