Caution

This section describes information peculiar to a vehicle and inspection procedures.
For trouble diagnosis procedure, refer to LAN-17, "Trouble Diagnosis Procedure".

Abbreviation List

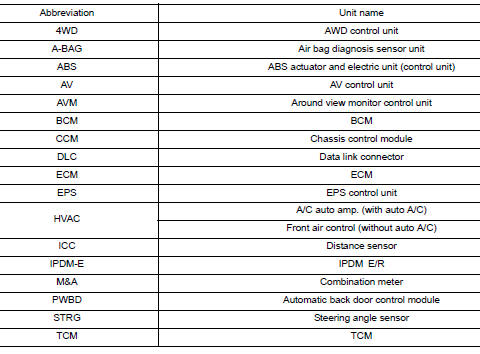

Unit name abbreviations in CONSULT CAN diagnosis and in this section are as per the following list.

Abbreviation List

Precaution

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONE ...
