Nissan Rogue Service Manual: Fuel tank
FWD

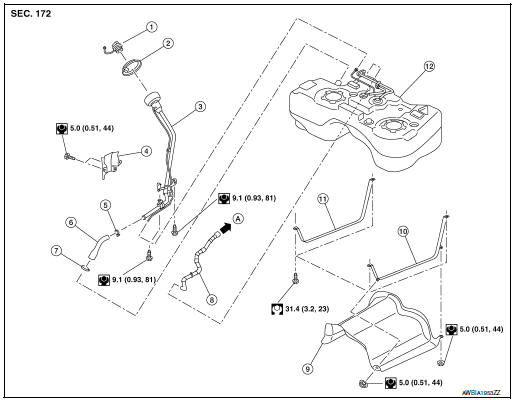

FWD : Exploded View
- Fuel filler cap
- Grommet
- Fuel filler tube
- Cover
- Clamp
- Fuel filler hose
- Clamp
- Vent hose
- Fuel tank protector
- Fuel tank strap (LH)
- Fuel tank strap (RH)
- Fuel tank
- To EVAP canister
: N·m (kg-m, in-lb)
FWD : Removal and Installation
REMOVAL
WARNING:
Be sure to read “General Precautions” when working on the fuel system. Refer to
FL-2, "General Precaution".

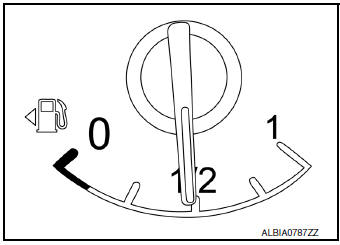

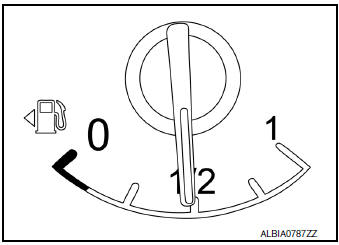

- Check the fuel level with the vehicle on a level surface. If the fuel
gauge indicates more than the level as shown (1/2 full), drain
the fuel from the fuel tank until the fuel gauge indicates a level at
or below as shown (1/2 full).
- In case the fuel pump does not operate, use the following
procedure.
- Insert fuel tubing of less than 25mm (0.98in) diameter into the
fuel filler tube through the fuel filler opening to drain fuel from the
fuel filler tube.
- Disconnect the fuel filler hose from the fuel filler tube.
- Insert fuel tubing into the fuel tank through the fuel filler hose
to
drain fuel from the fuel tank.
- As a guide, the fuel level reaches or is less than the level on
the fuel gauge as shown, when approximately
27.5 (7-1/4 US gal, 6 Imp
gal) of fuel is drained from a full fuel tank.
- Release the fuel pressure from the fuel lines. Refer to EC-144, "Work
Procedure".
- Disconnect negative battery terminal. Refer to PG-75, "Removal and
Installation (Battery)".
- Unscrew the fuel filler cap to release the pressure inside the
fuel tank.
- Remove second row seat (RH). Refer to SE-37, "Exploded View".
- Turn the four retainers 90 degrees to disengage the clips and
remove the fuel pump inspection hole cover.
CAUTION:
Cover the immeditate area surrounding the fuel pump inspection hole cover
with plastic to avoid
gasoline damage to carpet.

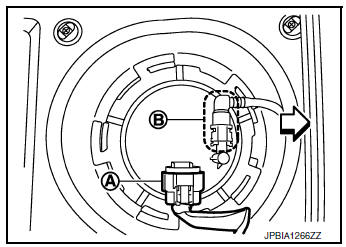

- Disconnect harness connector (A) and quick connector (B).
: Front

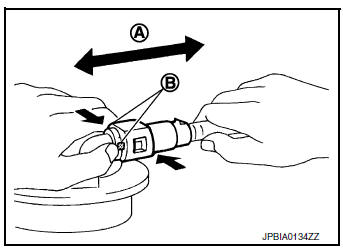

Disconnect quick connector as follows:
- Hold the sides of connector, press tabs and pull out fuel feed
tube.
(A) : Pull
(B) : Push in tabs
- If quick connector sticks to tube of main fuel level sensor unit, push
and pull quick connectors several
times until they start to move. Then disconnect them by pulling.
CAUTION:

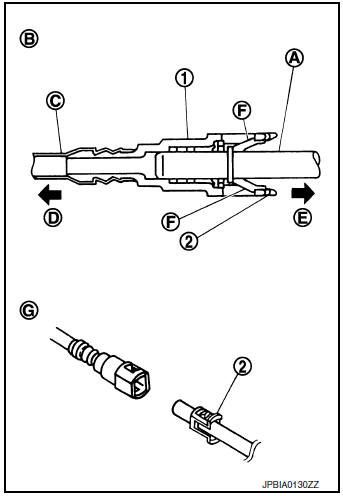

- Quick connector (1) can be disconnected when the tabs
(F) are depressed completely. Do not twist it more than
necessary.
(B) : Connection (cross-section)
(D) : To under floor fuel line
(E) : To fuel tank
(G) : Disconnection
- Do not use any tools to disconnected quick connector.
- Keep resin tube (C) away from heat. Be especially careful
when welding near the resin tube.
- Prevent acid liquid such as battery electrolyte, etc. from
getting on resin tube.
- Do not bend or twist resin tube during installation and
disconnection.
- Do not remove the remaining retainer (2) on hard tube
(or the equivalent) (A) except when resin tube or retainer
is replaced.
- When resin tube or hard tube (or the equivalent) is
replaced, also replace retainer with new one.

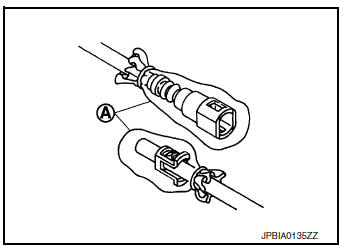

- To keep the connecting portion clean and to avoid damage
and foreign materials, cover them completely with
plastic bags (A) or something similar.
- Remove center exhaust tube and muffler assembly. Refer to EX-5,
"Exploded View".
- Remove protector from fuel tank.

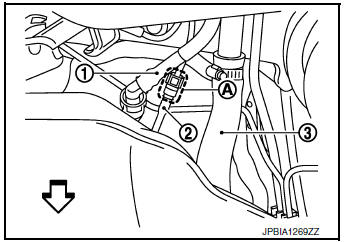

- Remove vent hose (1) at rear side of fuel tank.
- Disconnect EVAP tube (2) at rear side of fuel tank.
- Instruction for quick connector (A) of EVAP tube. Refer to FL-
5, "Quick Connector".
- Remove fuel filler hose (3) at fuel filler tube side.
: Front
- Remove parking brake cable bolts and separate parking brake cable from
suspension arm. Refer to PB-7,
"Exploded View".
- Remove rear suspension bars. Refer to RSU-22, "Exploded View".

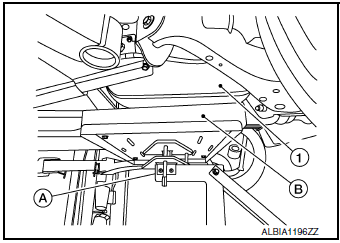

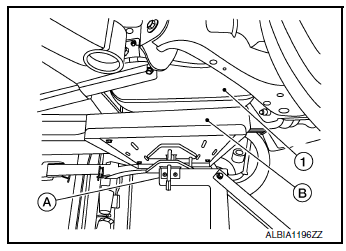

- Support center of fuel tank (1) with suitable jack (A).
CAUTION:
Securely support the fuel tank with a piece of wood (B).
- Remove fuel tank bands.
- Lower suitable jack carefully to remove fuel tank while holding it
by hand.
CAUTION:
Fuel tank may be in an unstable condition because of the shape of fuel tank
bottom. Be sure to
secure fuel tank at all times.
- If replacing the fuel tank, remove the fuel level sensor unit,
fuel filter and fuel pump assembly to transfer to
the new fuel tank. Remove and discard the O-ring. Refer to FL-6, "Removal
and Installation".
INSTALLATION
Installation is in the reverse order of removal.
Fuel Filler Hose
- Insert fuel filler hose to the length below.
: 35 mm (1.38 in)
- Be sure hose clamp is not placed on swelled area of fuel filler tube.

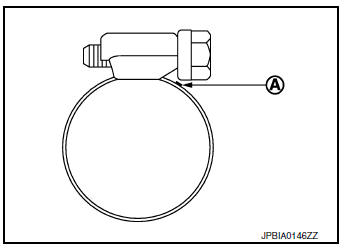

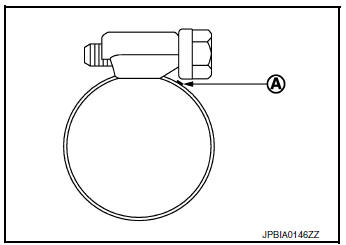

- Tighten the clamp hand with the top mark (A) until the mark is on
the bolt head flange.
FWD : Inspection
INSPECTION AFTER INSTALLATION
Use the following procedure to check for fuel leaks.
- Turn the ignition switch ON (without starting the engine). Then
check the connections for fuel leaks by
applying fuel pressure to the fuel piping.
- Start engine, raise idle and verify there are no leaks at the fuel
system connections.
AWD

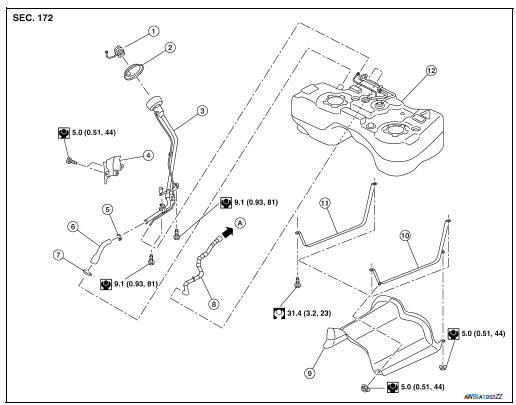

AWD : Exploded View
- Fuel filler cap
- Grommet
- Fuel filler tube
- Cover
- Clamp
- Fuel filler hose
- Clamp
- Vent hose
- Fuel tank protector
- Fuel tank strap (LH)
- Fuel tank strap (RH)
- Fuel tank
- To EVAP canister
: N·m (kg-m, in-lb)
AWD : Removal and Installation
REMOVAL
WARNING:
Be sure to read “General Precautions” when working on the fuel system. Refer to
FL-2, "General Precaution".
- Check the fuel level with the vehicle on a level surface. If the
fuel
gauge indicates more than the level as shown (1/2 full), drain
the fuel from the fuel tank until the fuel gauge indicates a level at
or below as shown (1/2 full).
- In case the fuel pump does not operate, use the following
procedure.
- Insert fuel tubing of less than 25mm (0.98in) diameter into the
fuel filler tube through the fuel filler opening to drain fuel from the
fuel filler tube.
- Disconnect the fuel filler hose from the fuel filler tube.
- Insert fuel tubing into the fuel tank through the fuel filler hose
to
drain fuel from the fuel tank.
- As a guide, the fuel level reaches or is less than the level on the fuel
gauge as shown, when approximately
27.5 (7-1/4 US gal, 6 Imp
gal) of fuel is drained from a full fuel tank.
- Release the fuel pressure from the fuel lines. Refer to EC-144, "Work
Procedure".
- Disconnect negative battery terminal. Refer to PG-75, "Removal and
Installation (Battery)".
- Unscrew the fuel filler cap to release the pressure inside the
fuel tank.
- Remove second row seat (RH). Refer to SE-37, "Exploded View".
- Turn the four retainers 90 degrees to disengage the clips and
remove the fuel pump inspection hole
cover..
CAUTION:
Cover the immeditate area surrounding the fuel pump inspection hole cover
with plastic to avoid
gasoline damage to carpet.
- Remove center exhaust tube and muffler assembly. Refer to EX-5,
"Exploded View".
- Remove propeller shaft. Refer to DLN-99, "Removal and
Installation".
- Remove protector from fuel tank.
- Remove vent hose (1) at rear side of fuel tank.
- Disconnect EVAP tube (2) at rear side of fuel tank.
- Instruction for quick connector (A) of EVAP tube. Refer to FL-
5, "Quick Connector".
- Remove fuel filler hose (3) at fuel filler tube side.
: Front
- Remove parking brake cable bolts and separate parking brake cable from
suspension arm. Refer to PB-7,
"Exploded View".
- Remove rear suspension bars. Refer to RSU-22, "Exploded View".
- Support center of fuel tank (1) with suitable jack (A).
CAUTION:
Securely support the fuel tank with a piece of wood (B).
- Remove fuel tank bands.
- Lower suitable jack carefully to remove fuel tank while holding it
by hand.
CAUTION:
Fuel tank may be in an unstable condition, due to the shape of the fuel tank
bottom. Be sure to
secure tank at all times.
- If replacing the fuel tank, remove the fuel level sensor unit,
fuel filter and fuel pump assembly to transfer to
the new fuel tank. Remove and discard the O-ring. Refer to FL-6, "Removal
and Installation".
INSTALLATION
Installation is in the reverse order of removal.
Fuel Filler Hose
- Insert fuel filler hose to the length below.
: 35 mm (1.38 in)
- Be sure hose clamp is not placed on swelled area of fuel filler tube.
- Tighten the clamp hand with the top mark (A) until the mark is on
the bolt head flange.
AWD : Inspection
INSPECTION AFTER INSTALLATION
Use the following procedure to check for fuel leaks.
- Turn the ignition switch ON (without starting the engine). Then
check the connections for fuel leaks by
applying fuel pressure to the fuel piping.
- Start engine, raise idle and verify there are no leaks at the fuel
system connections.
